Manifold Pressure/Vacuum Sensor
>>
Locations
>>
General Component Location
General Component Location

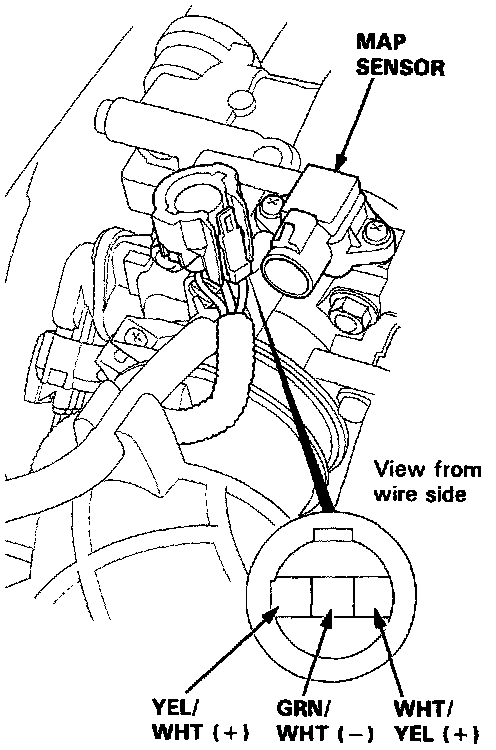

Manifold Absolute Pressure (MAP) Sensor:
The Manifold Absolute Pressure (MAP) sensor is mounted on top of throttle body.
