Ignition Cable: Testing and Inspection

CAUTION: Carefully remove the ignition wires by pulling on the rubber boots. Do not bend the wires; you might break them inside.

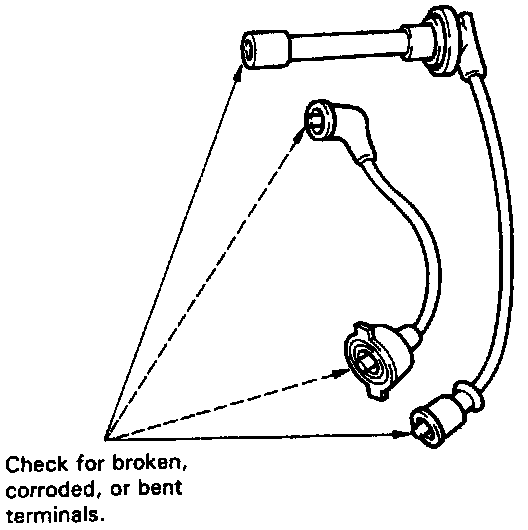

Ignition Cable Visual Inspection:

1. Check the condition of the wire terminals. If any terminal is corroded, clean it, and if it is broken or distorted, replace the wire.

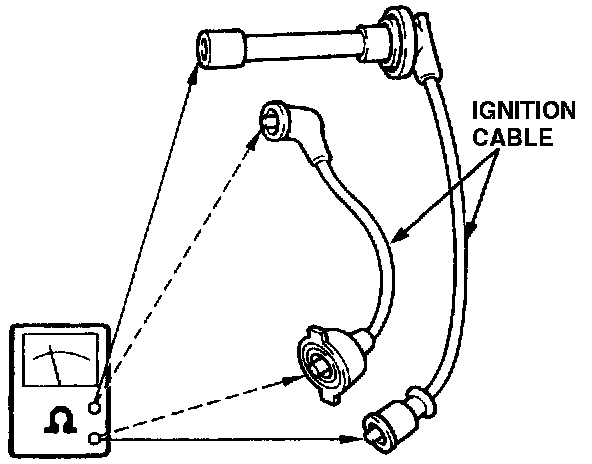

Ignition Cable Resistance Measuring:

2. Connect ohmmeter probes and measure resistance.


Ignition Wire Resistance: 25k Ohms max. at 20°C (68°F)

3. If resistance exceeds 25k Ohms, replace the ignition wire.
