Clutch Switch: Testing and Inspection

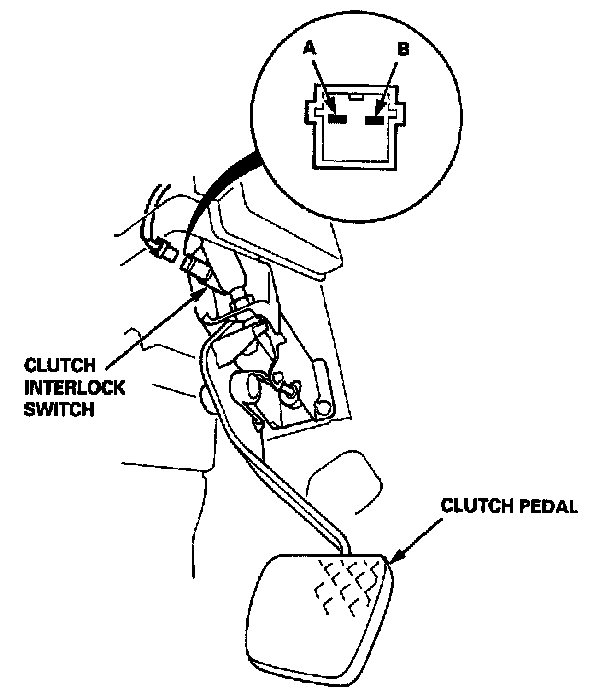

1. Remove the dashboard lower cover and knee bolster, then disconnect the 2-P connector from the clutch interlock switch.

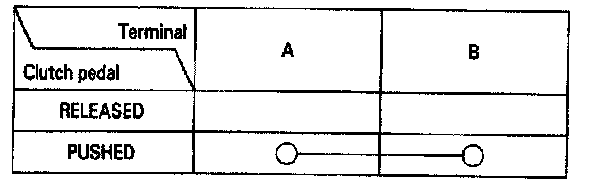

2. Check for continuity between the terminals according to the table.







3. If necessary, replace the switch or adjust the switch position.
