Transmission Speed Sensor: Service and Repair

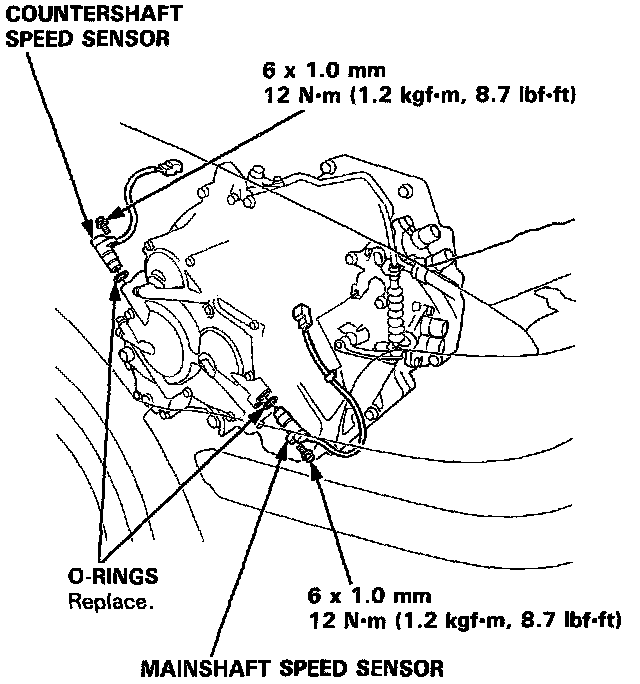

MAINSHAFT/COUNTERSHAFT SPEED SENSORS
1. Remove the 6 mm bolt from the transmission housing, and remove the mainshaft or countershaft speed sensor.





2. Replace the O-ring with a new one before reinstalling the mainshaft or countershaft speed sensor.
