Torque Specifications

Intake:

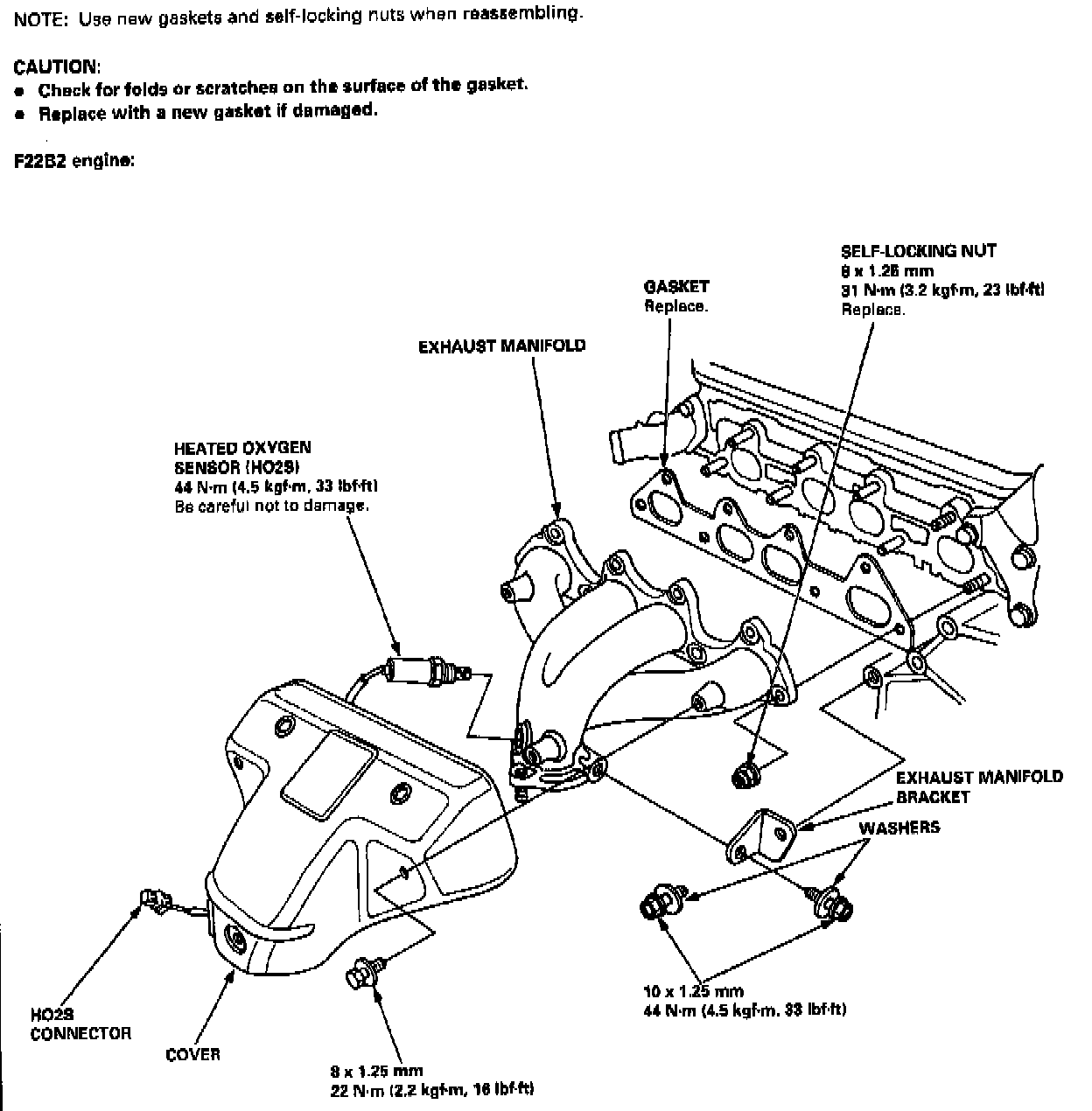

Exhaust Manifold:

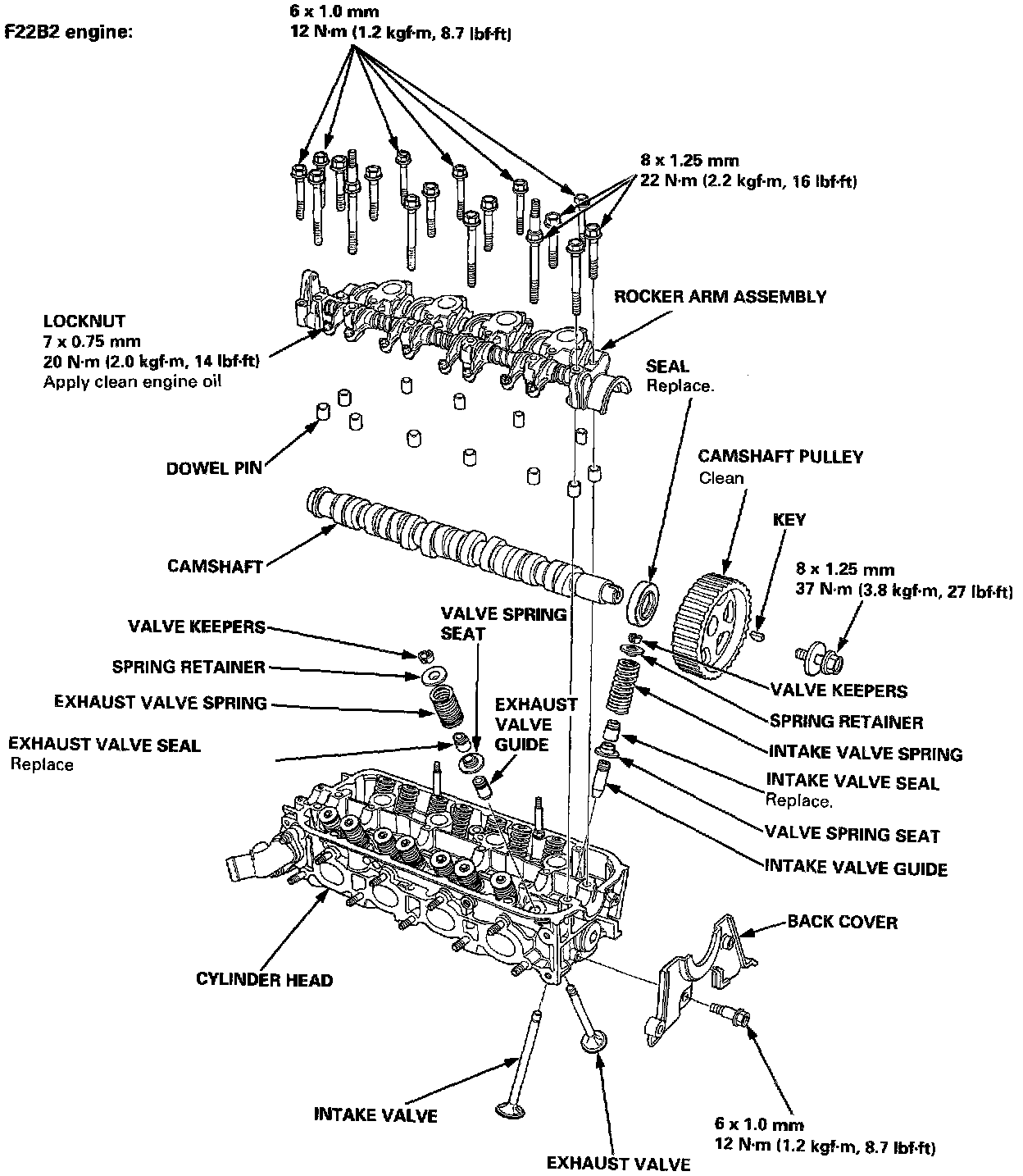

Camshaft And Rocker Arm:

Fig. 11 Cylinder Head Bolt Loosening Sequence:

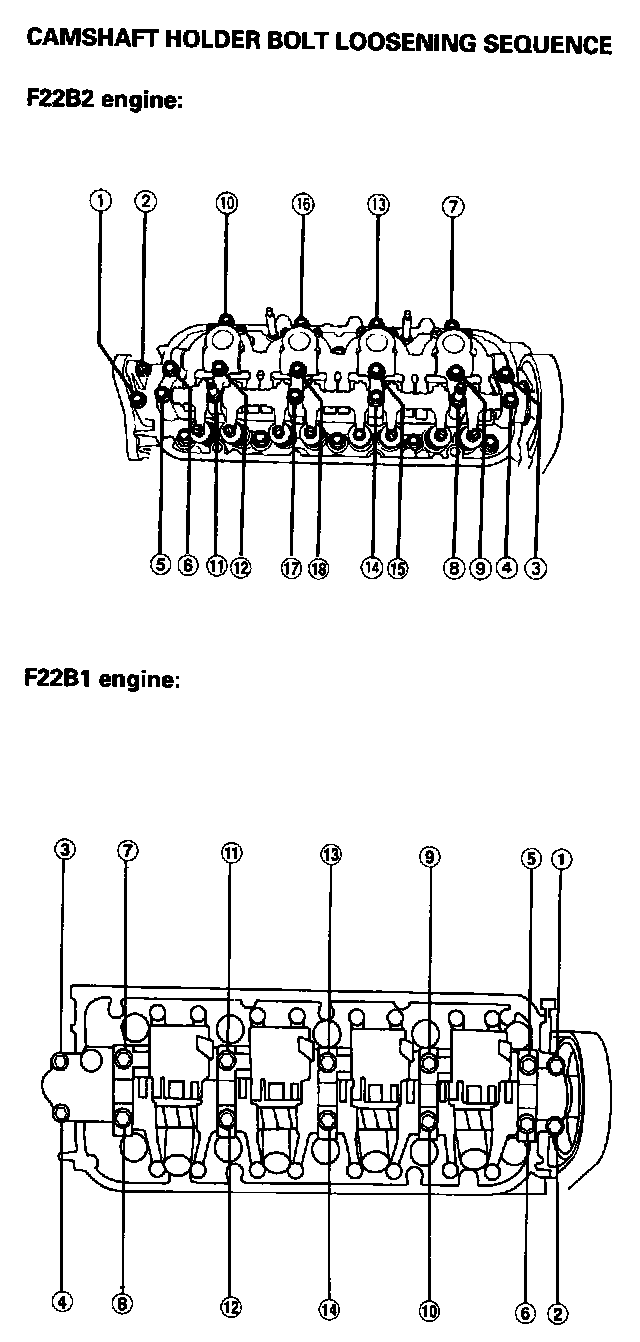

Camshaft Bolt Loosening Sequence:

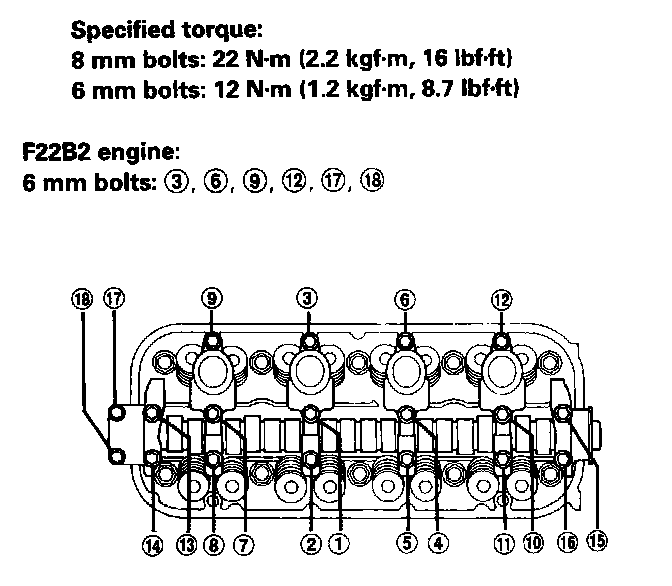

Camshaft Bolt Torque/Sequence:

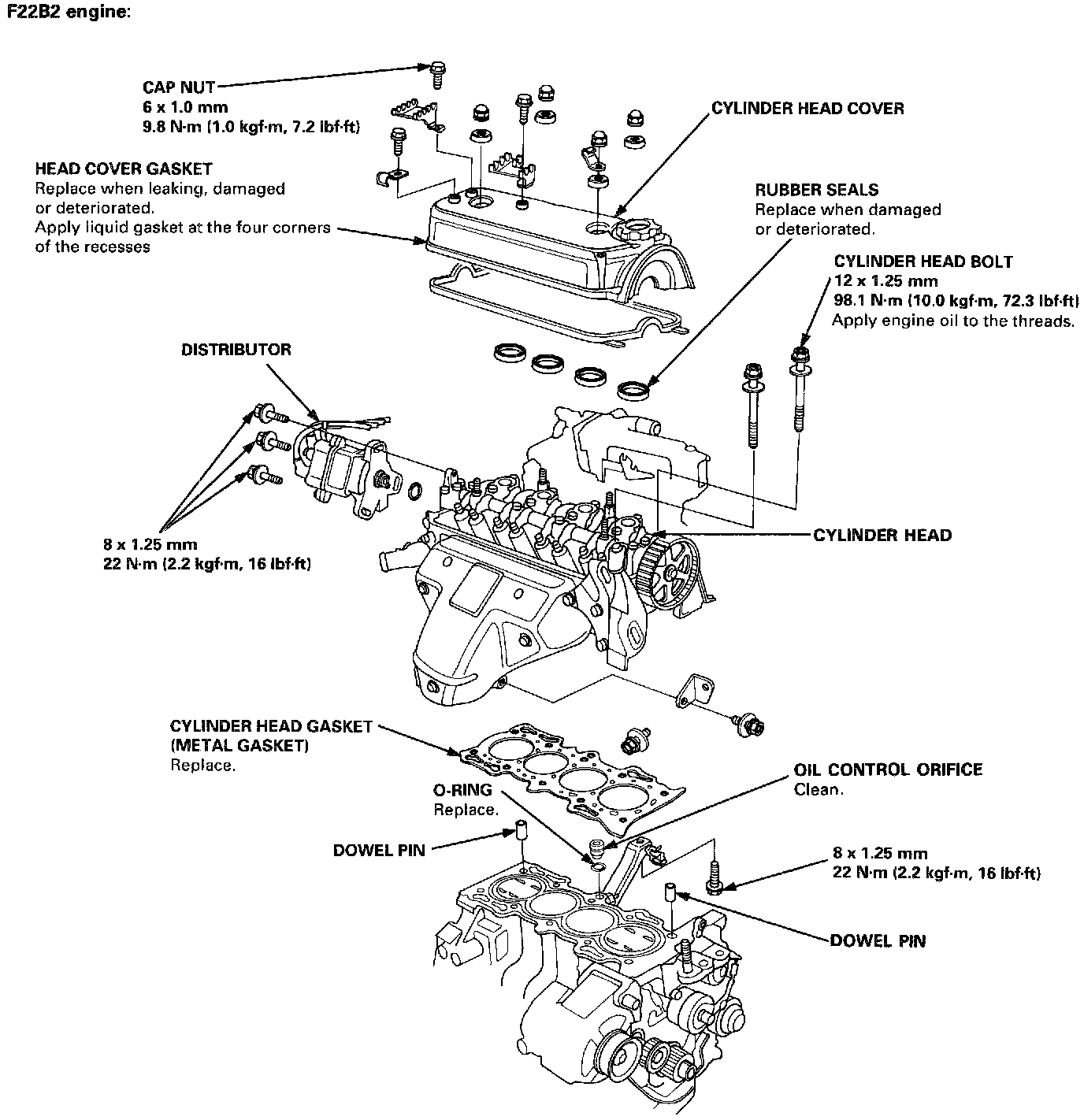

Cylinder Head Torque Sequence:

Torque cylinder head attaching bolts in three steps; first step to 29 ft. lbs., second step to 51 ft. lbs., third step to 72 ft. lbs.

Timing Components:

Lower Block:

Main Bearing Cap Loosening Sequence:

Main Bearing Cap Torque Sequence:

Balance Shaft:

Balance Shaft Drive:

Lubrication System:

Oil Pan:

Flywheel Torque And Sequence:

Flexplate Torque And Sequence:
