Transmission Control Systems

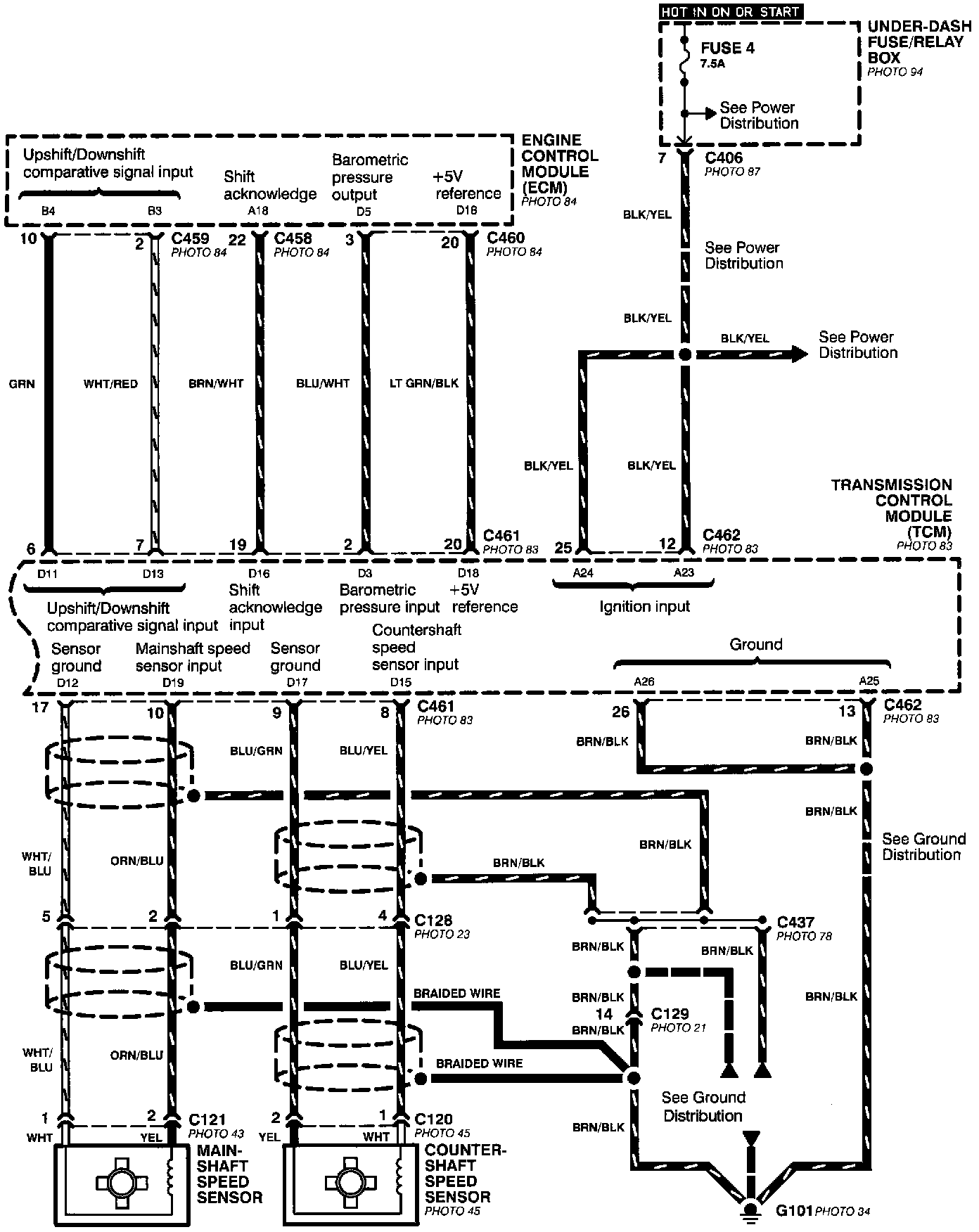

Automatic Transmission Controls (part 1 Of 4):

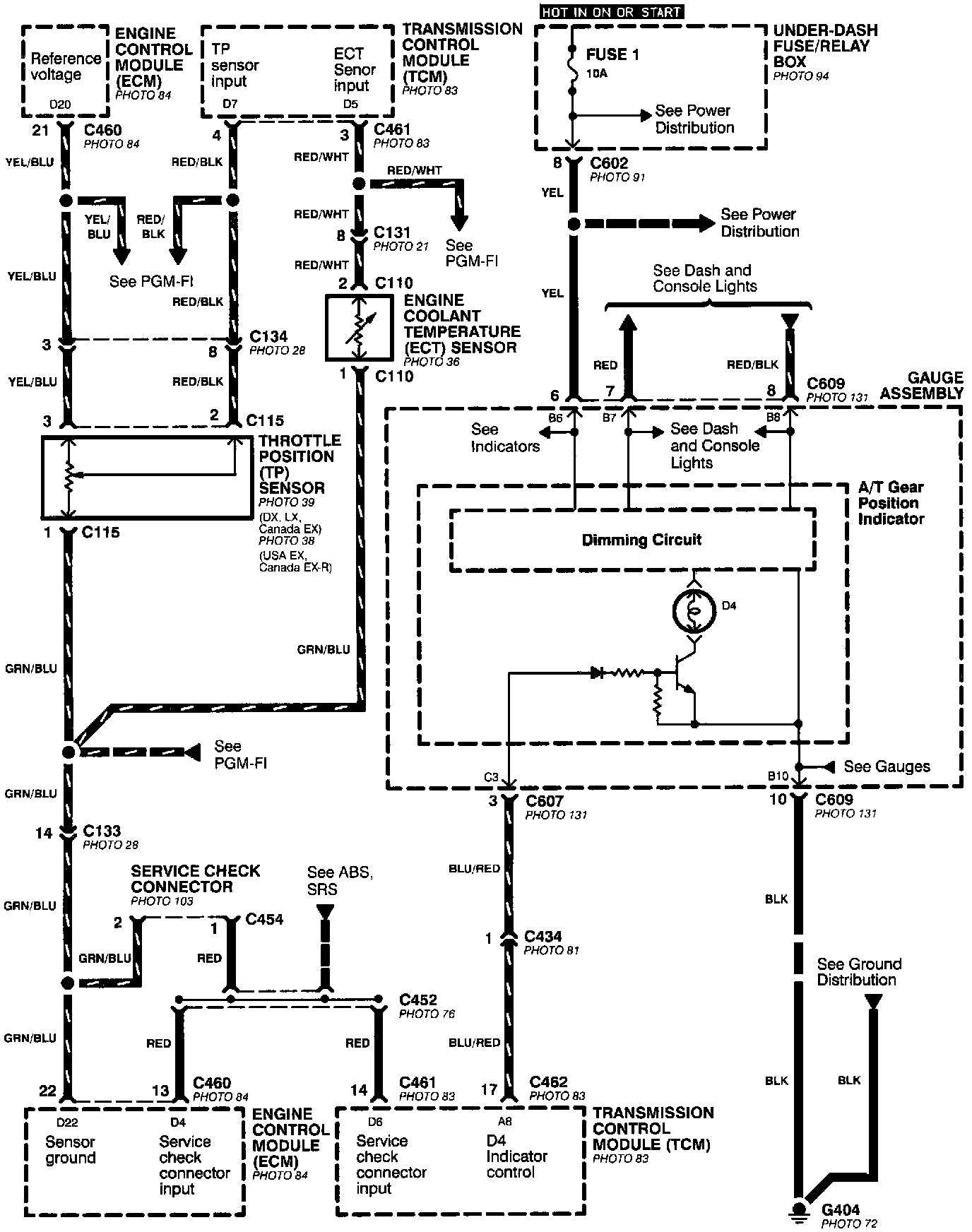

Automatic Transmission Control (part 2 Of 4):

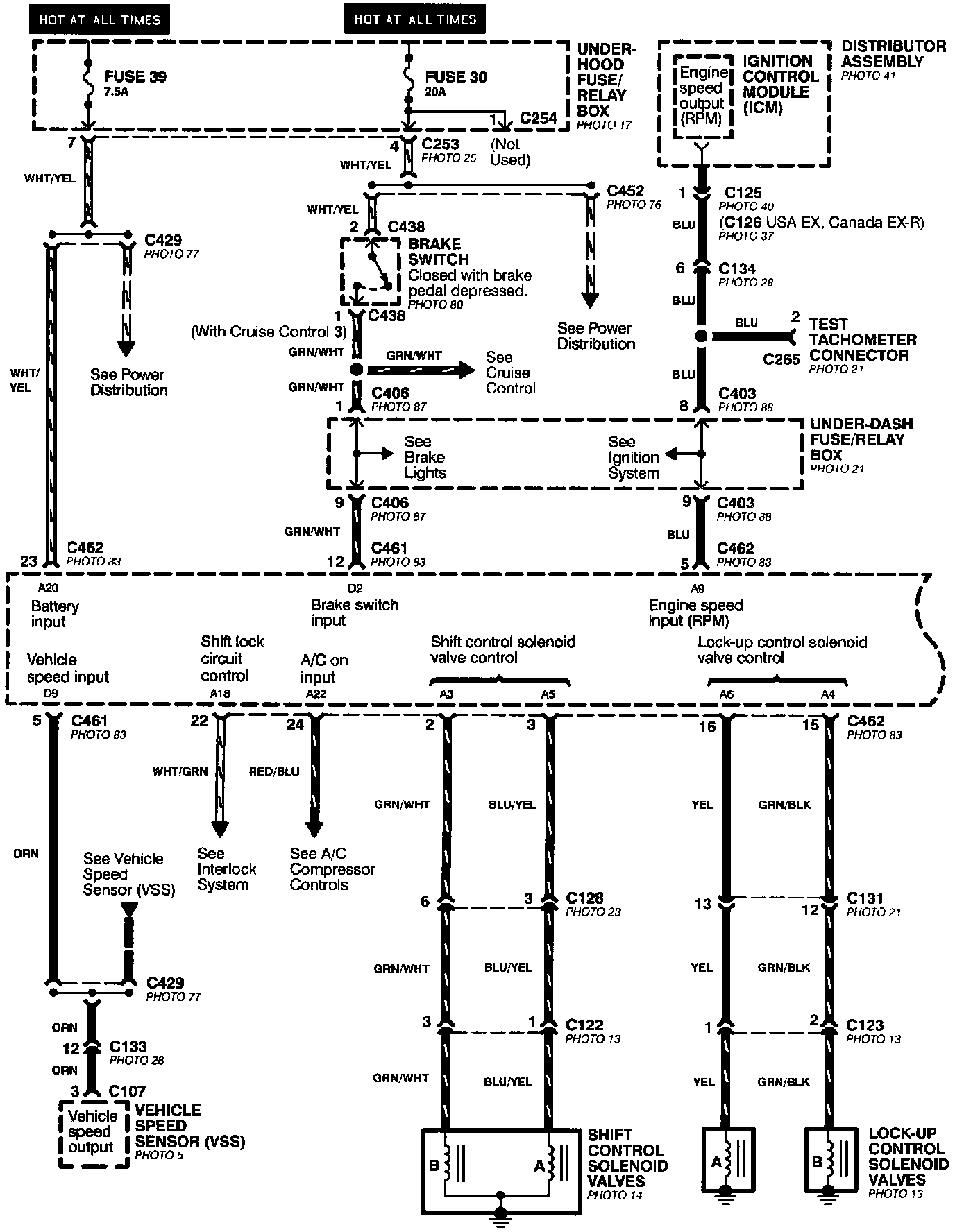

Automatic Transmission Control (part 3 Of 4):

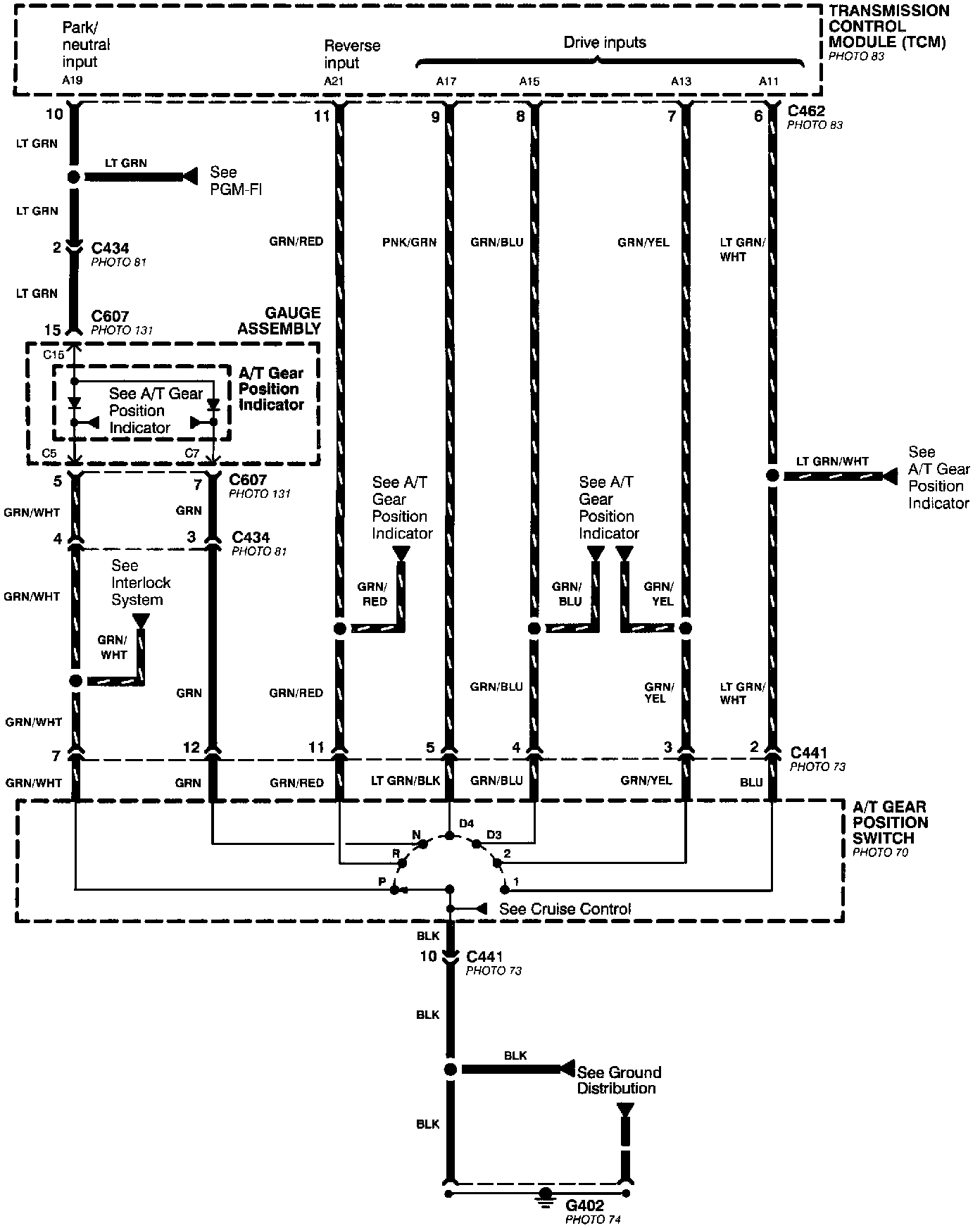

Automatic Transmission Control (part 4 Of 4):
