Toe-In

Rear Toe Inspection/Adjustment

NOTE: Use commercially-available computerized four wheel alignment equipment to measure wheel alignment (that is, caster, camber, toe and/or turning angle). Follow the equipment manufacturer's instructions.

1. Release parking brake.

NOTE:
- Measure difference in toe measurements with the wheels pointed straight ahead.
- If the parking brake is engaged, you may get an incorrect reading.

Rear toe-in: 2 ± 2 mm (0.08 ± 0.08 in)
- If adjustment is required, go to step 2.
- If no adjustment is required, remove alignment equipment

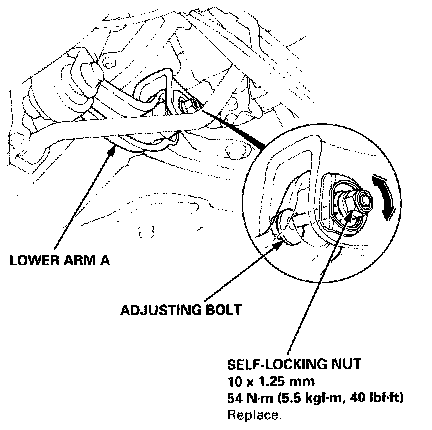

2. Hold the adjusting bolt on the rear lower arm and loosen the self-locking nut.
3. Adjust the rear toe by tuning the adjusting bolt until toe is correct.
4. Install the self-locking nut and tighten while holding the adjusting bolt.
