A/C Signal: Testing and Inspection

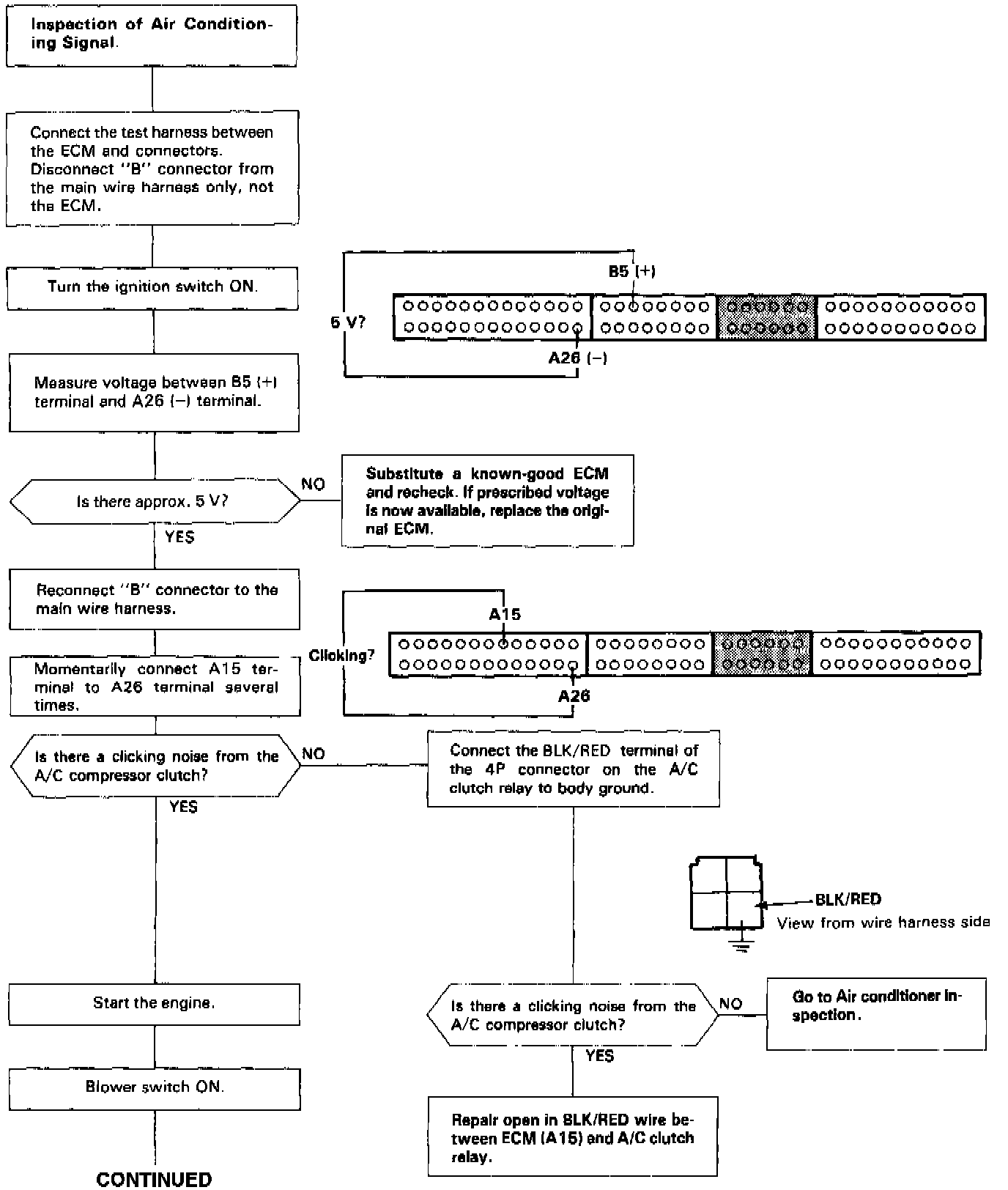

Air Conditioning Signal (part 1 of 2):

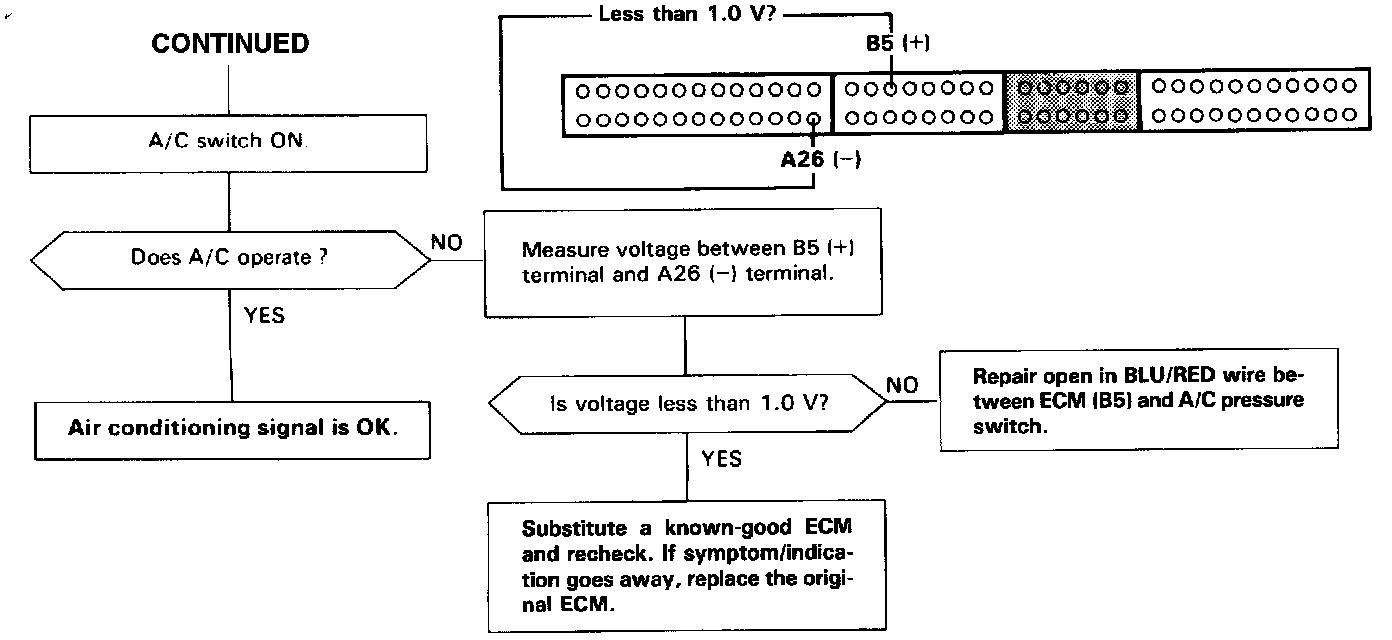

Air Conditioning Signal (part 2 of 2):
