Voltage Signal: Testing and Inspection

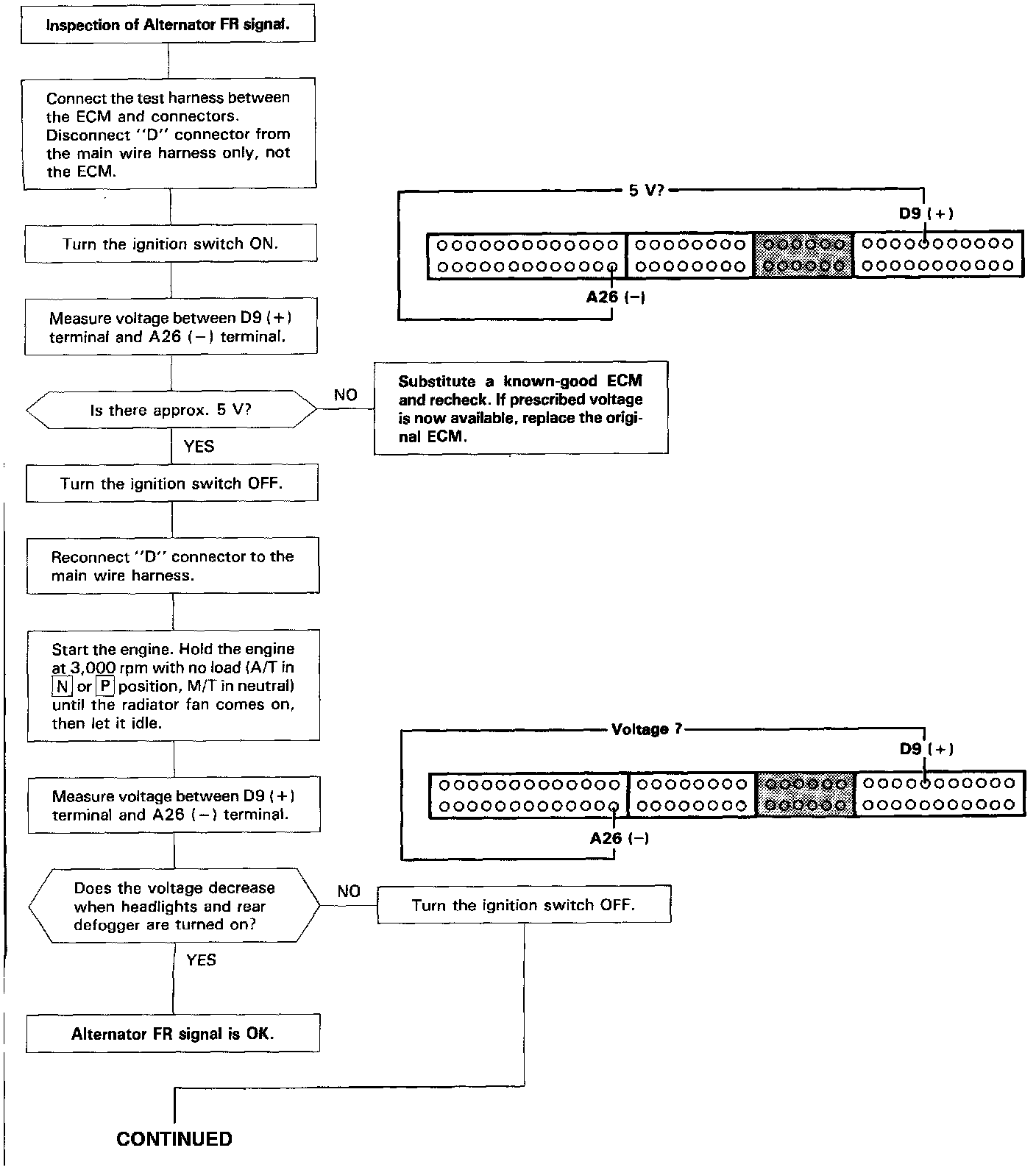

Alternator FR Signal (part 1 of 2):

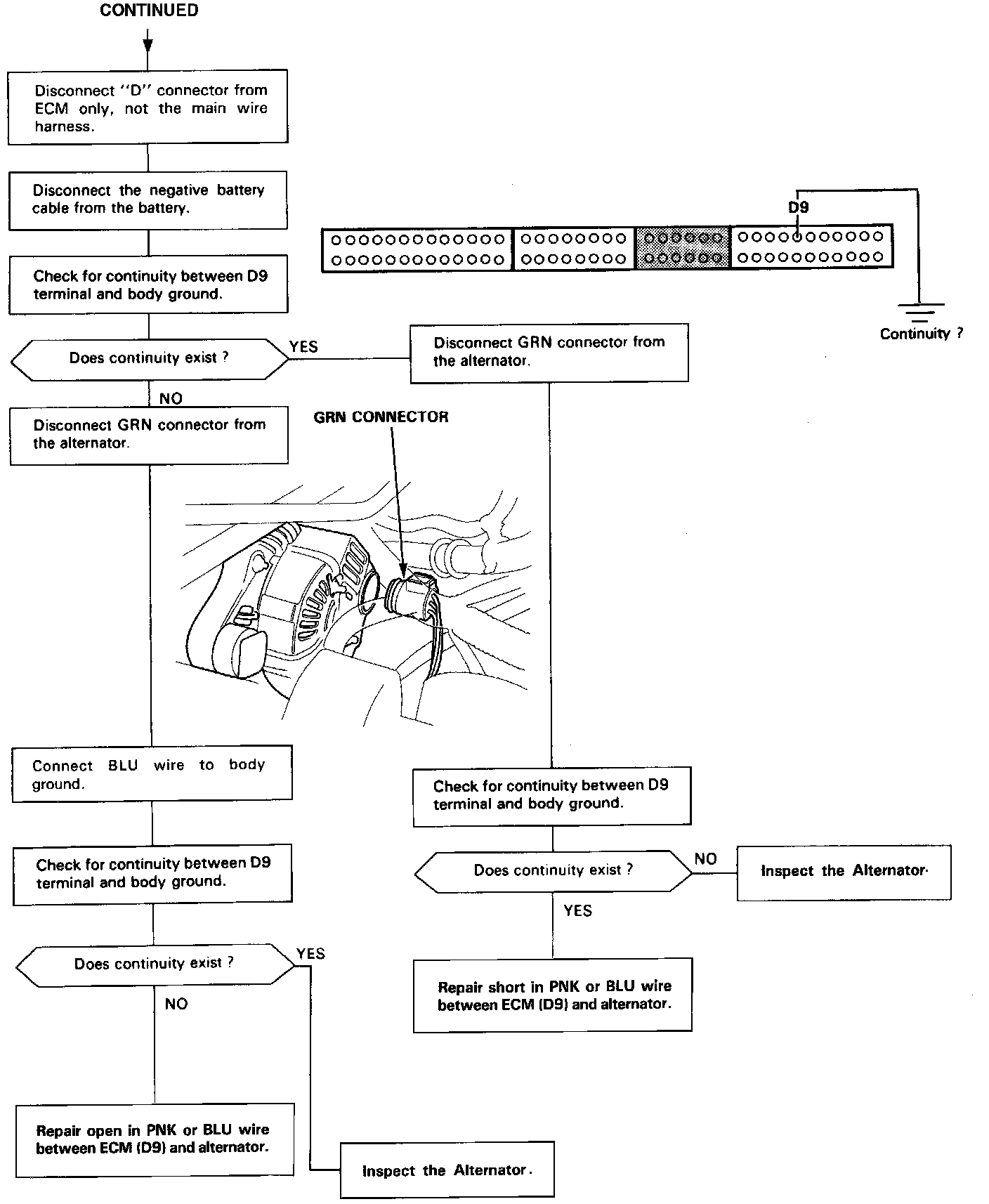

Alternator FR Signal (par 2 of 2):
