Honda
>>
1996
>>
Accord Sedan L4-2.2L SOHC VTEC
>>
Repair and Diagnosis
>>
Relays and Modules
>>
Relays and Modules - Restraints and Safety Systems
>>
Air Bag Control Module
>>
Locations
>>
Unit Locations
Unit Locations

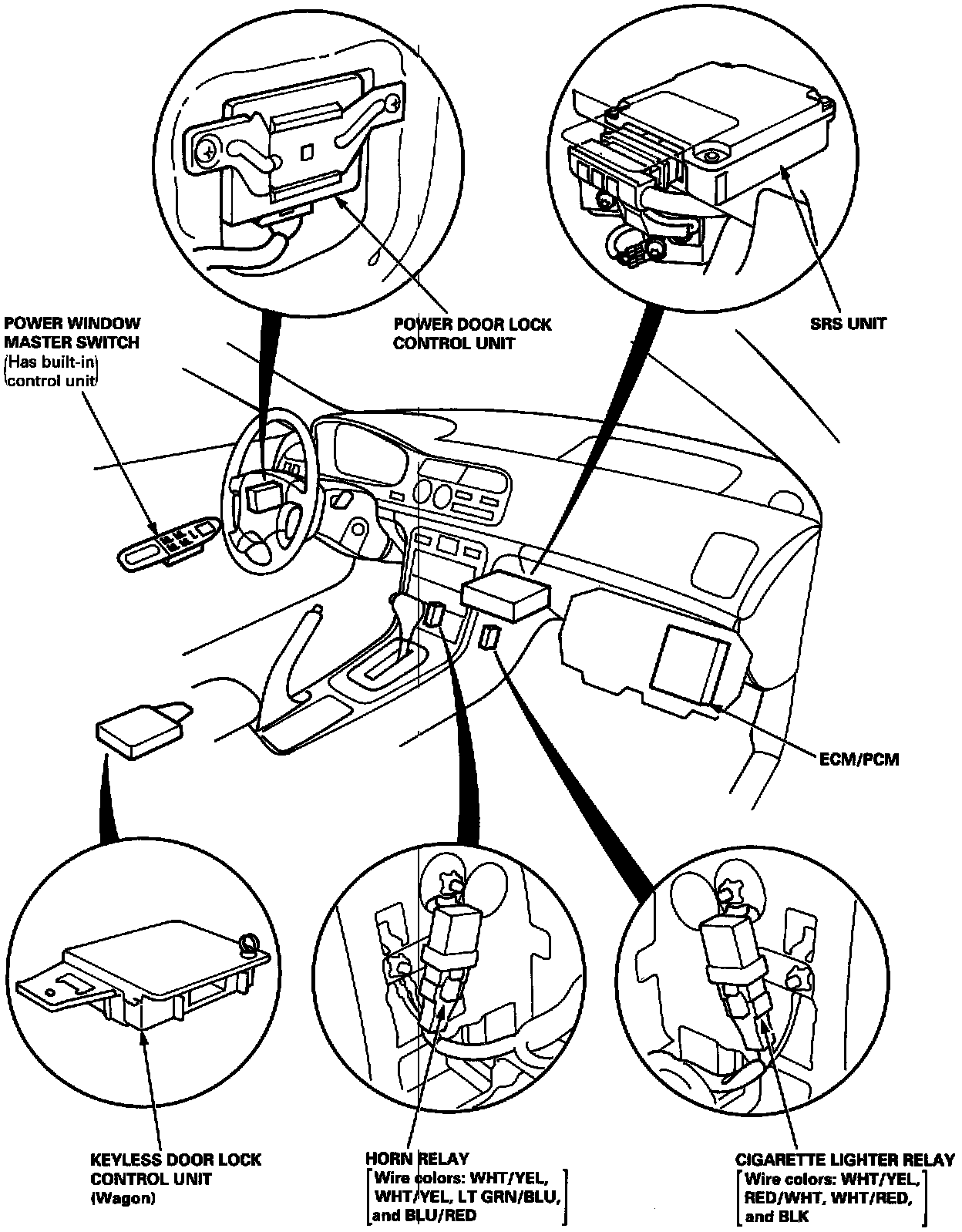

Relay And Control Unit Locations - Dashboard And Floor:
