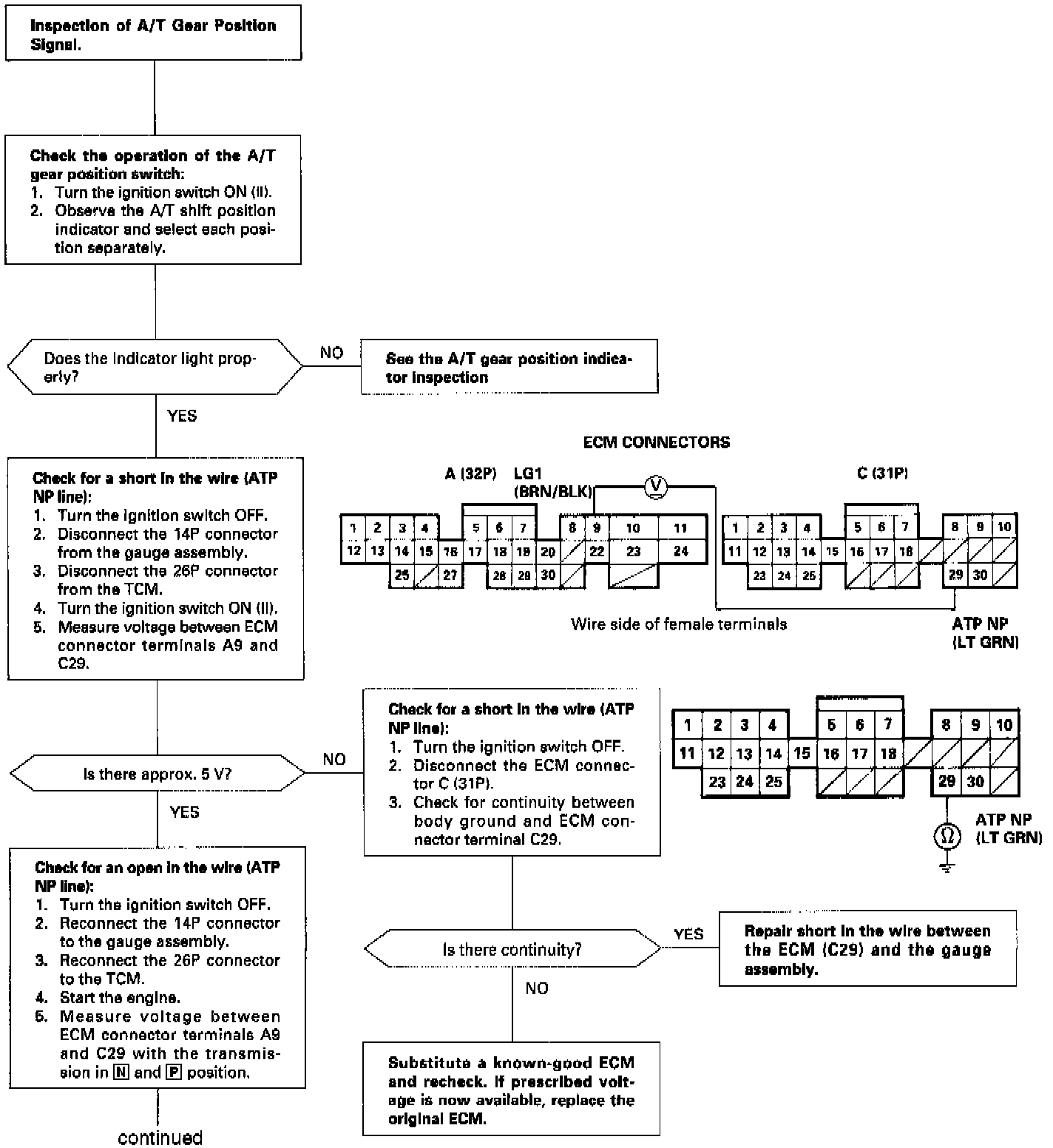

Shift Lever Position Switch








This signals the ECM when the transmission is in N or P position.
