Home
>>
Honda
>>
2000
>>
Accord DX Sedan L4-2254cc 2.3L SOHC MFI
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Engine
>>
Cylinder Block Assembly
>>
Crankshaft, Engine
>>
Service Specifications
>>
Runout
Runout

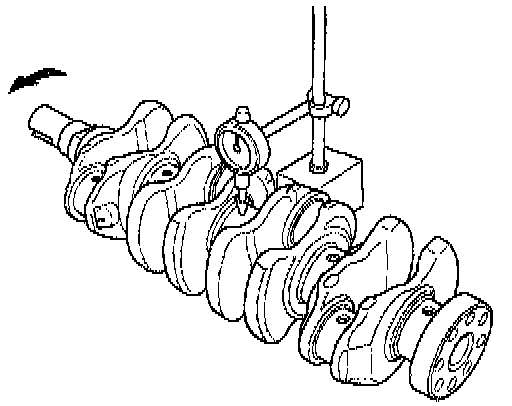

Crankshaft
Total Indicator Runout:
Standard (New): 0.03 mm (0.001 inch) maximum
Service Limit: 0.04 mm (0.002 inch)
