Home >> Honda >> 2000 >> Accord EX Sedan V6-3.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> 51-75 >> 73

51-75: 73

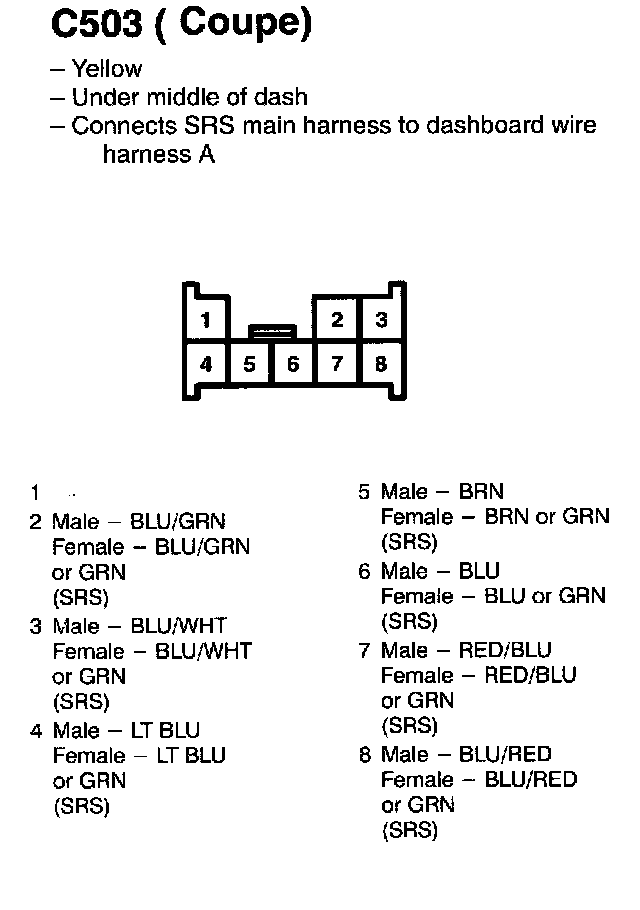

C503:
