Home >> Honda >> 2000 >> Civic GX Sedan L4-1.6L CNG >> Repair and Diagnosis >> Heating and Air Conditioning >> Control Assembly >> Diagrams >> Connector Views

Connector Views

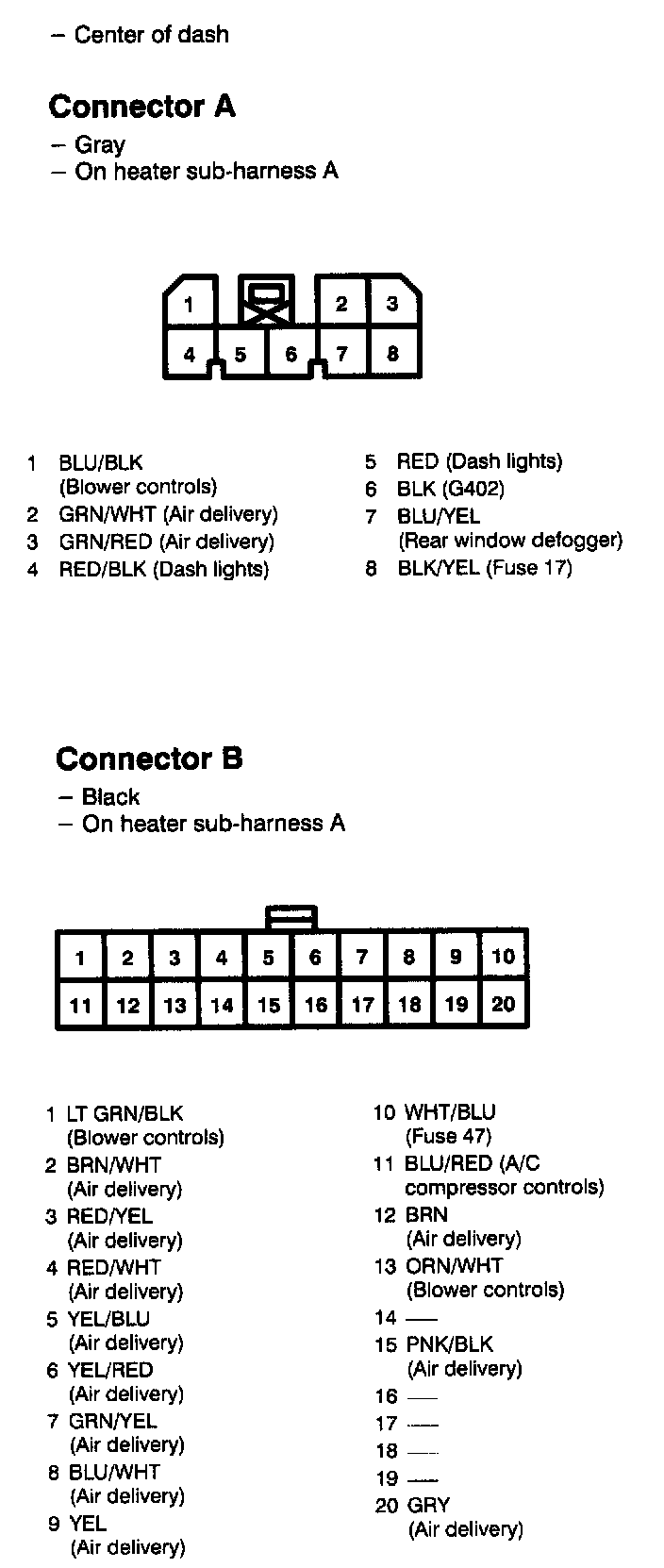

Part 1 Of 2:

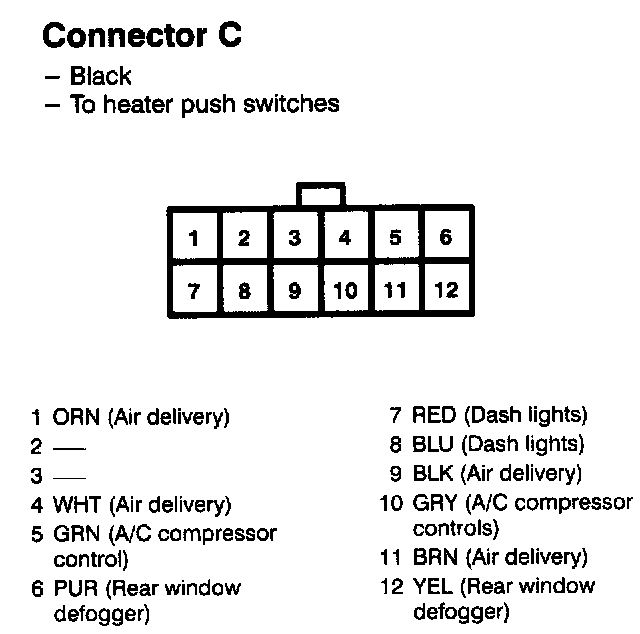

Part 2 Of 2:
