Actuator Replacement

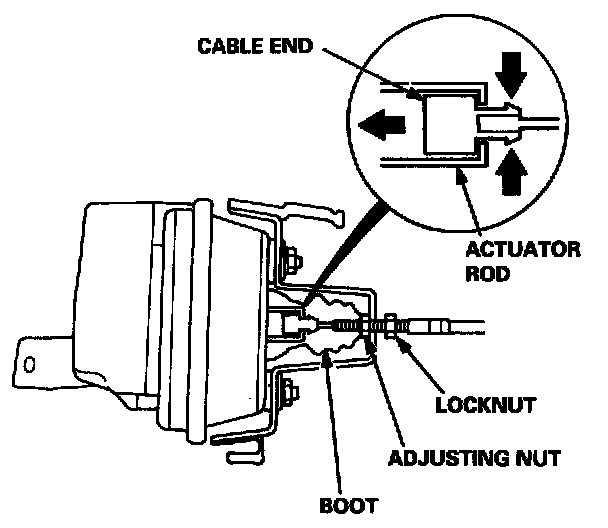

1. Pull back the boot, and loosen the locknut. Then disconnect the cable from the bracket.
2. Disconnect the cable end from the actuator rod.

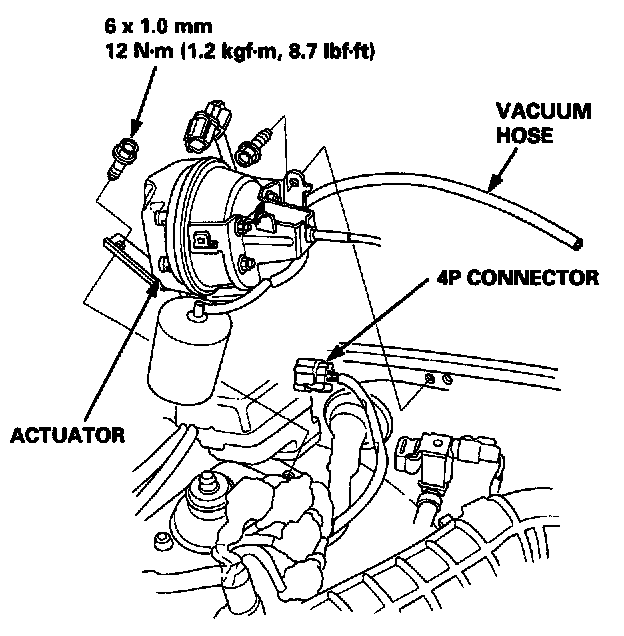

3. Disconnect the 4P connector from the actuator.




4. Disconnect the vacuum hose, then remove the actuator.
5. If necessary, disconnect the cable end from the linkage over the accelerator pedal, then turn the grommet 90° in the head bulk, and remove the cable.
6. Install in the reverse order of removal, and adjust free play at the actuator rod after connecting the cable.
