Torque Specifications

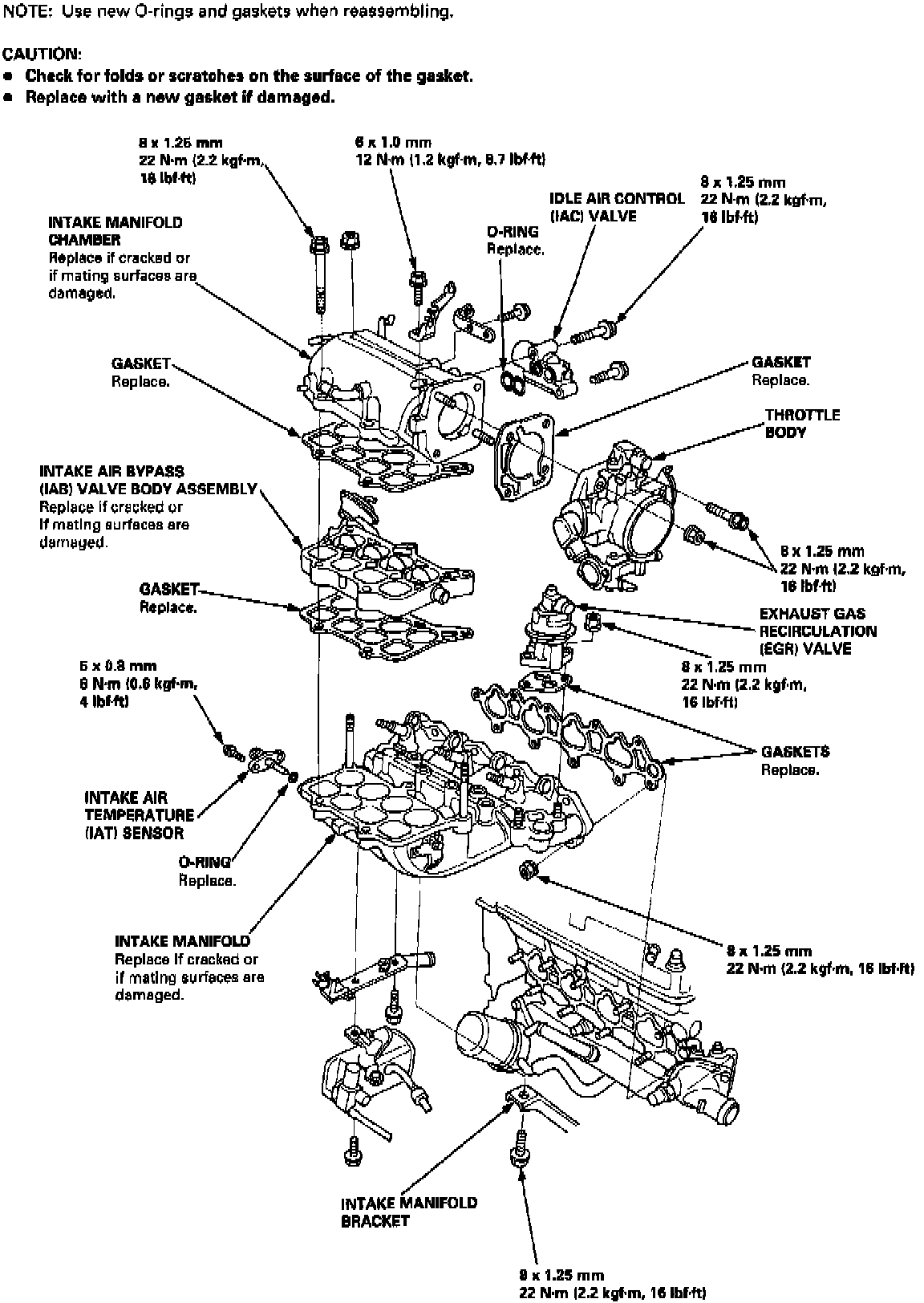

Intake:

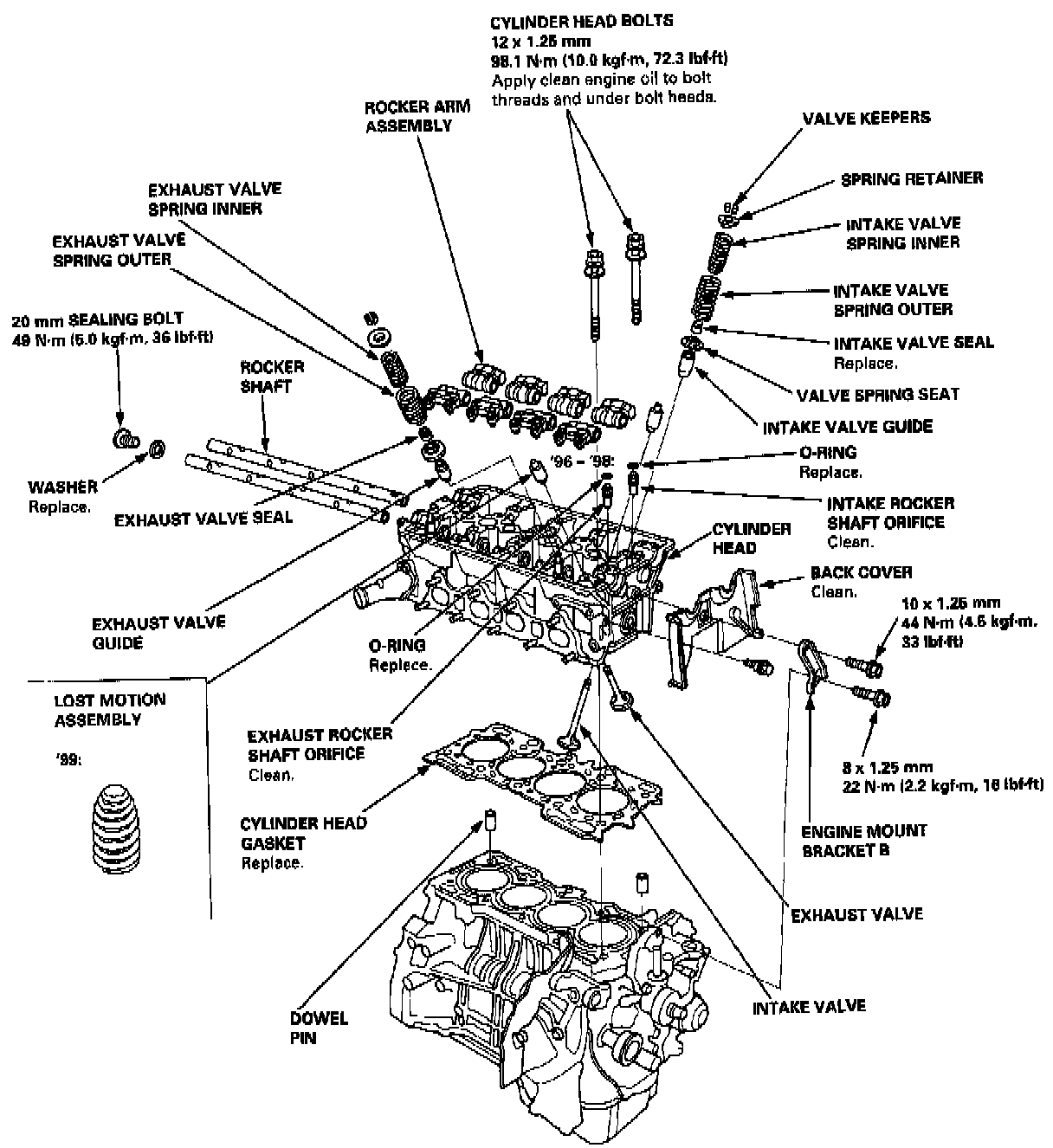

Cylinder Head:

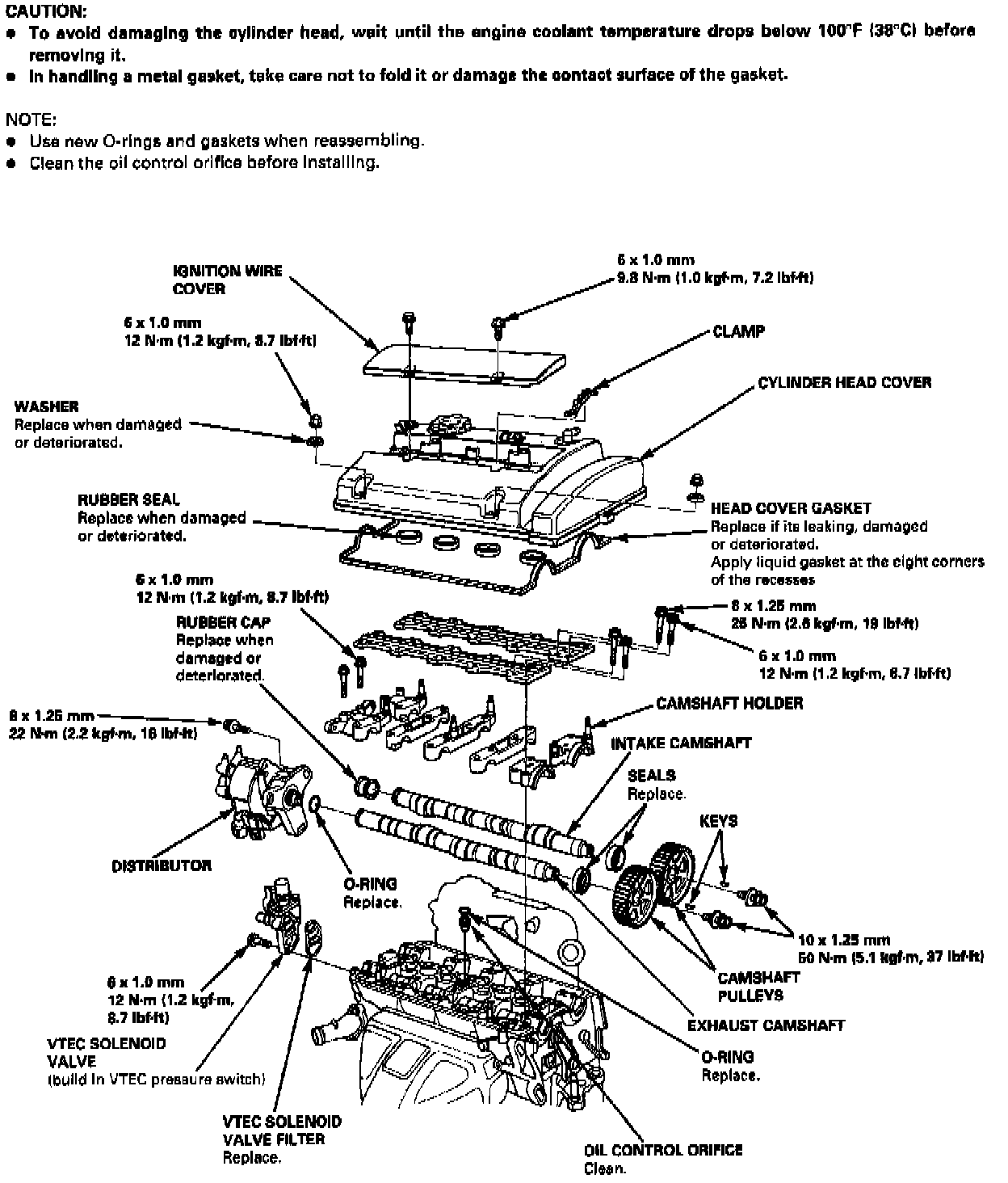

Cylinder Head Cont.:

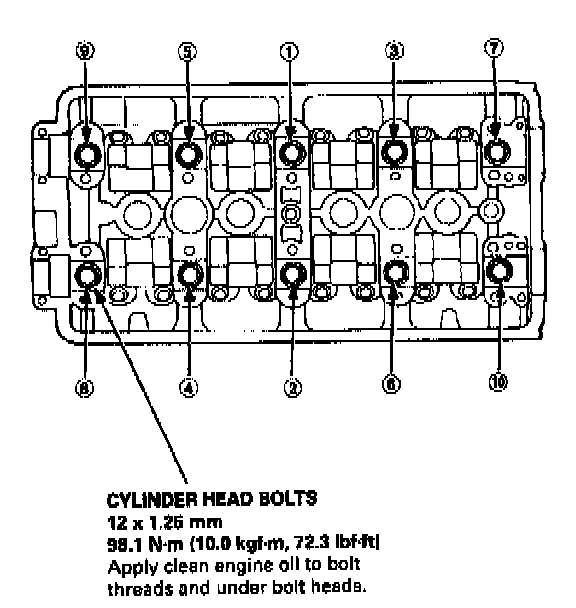

Head Bolt Torque Sequence:

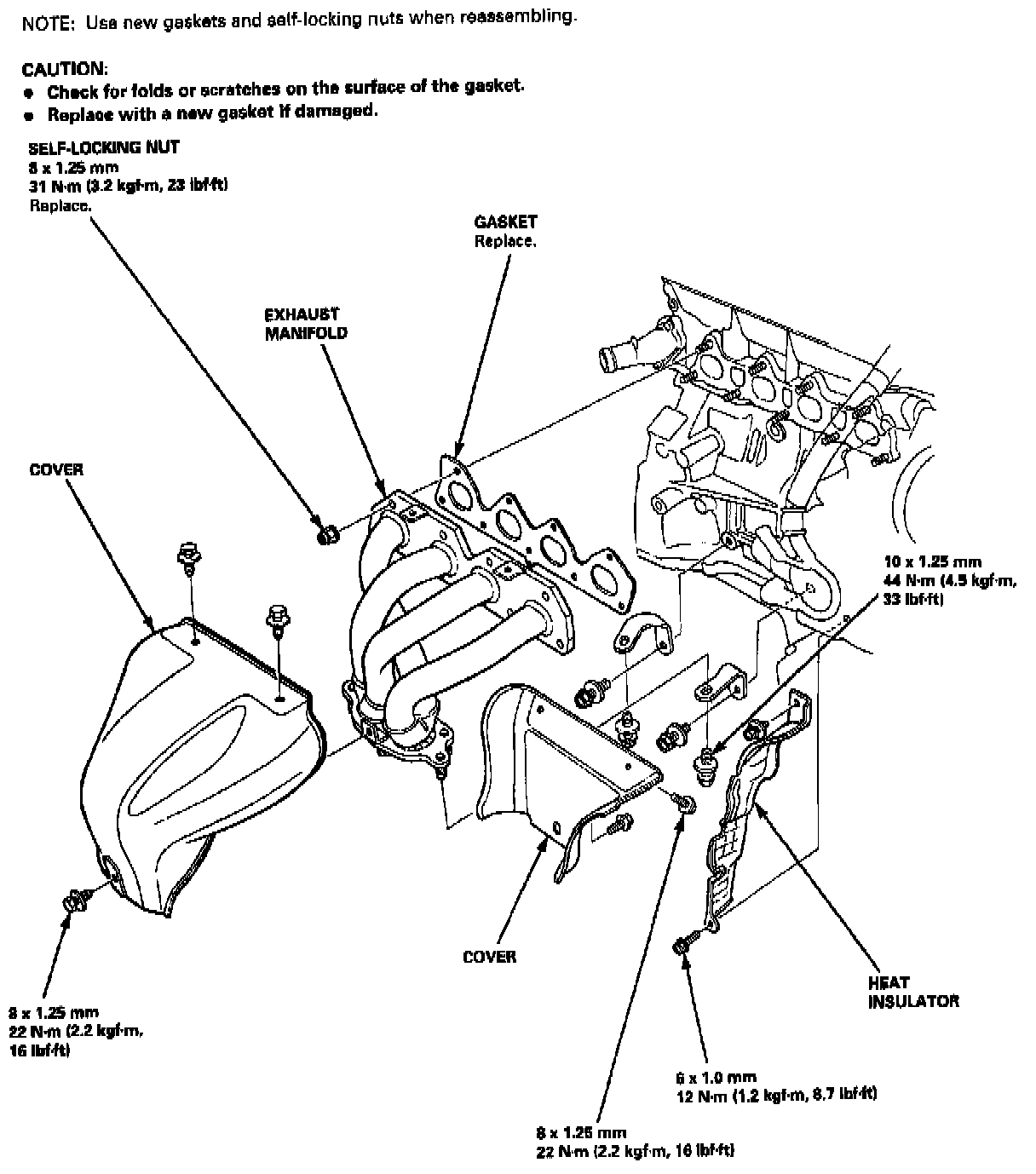

Exhaust Manifold:
