Power Window Switch: Testing and Inspection

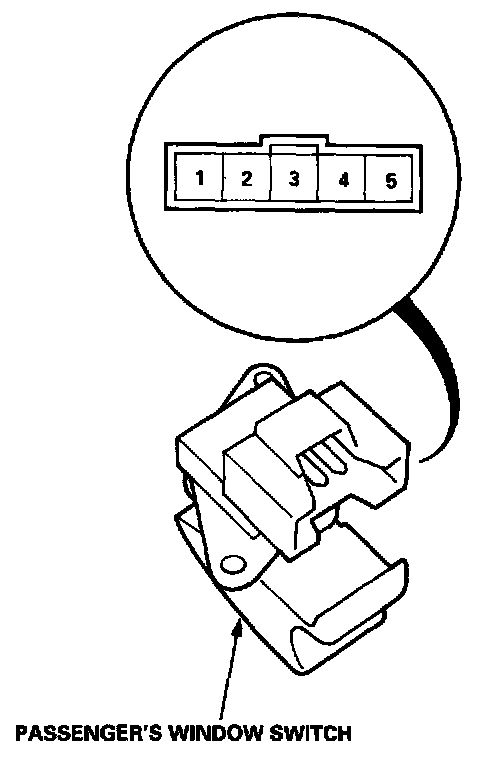

1. Remove the passenger's window switch.

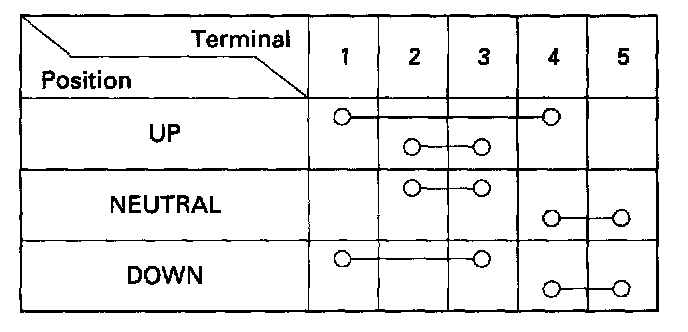

2. Check for continuity between the terminals in each switch position according to the table.
