Home >> Honda >> 2001 >> Prelude L4-2157cc 2.2L DOHC (VTEC) MFI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Seat Temperature Element

Seat Temperature Element

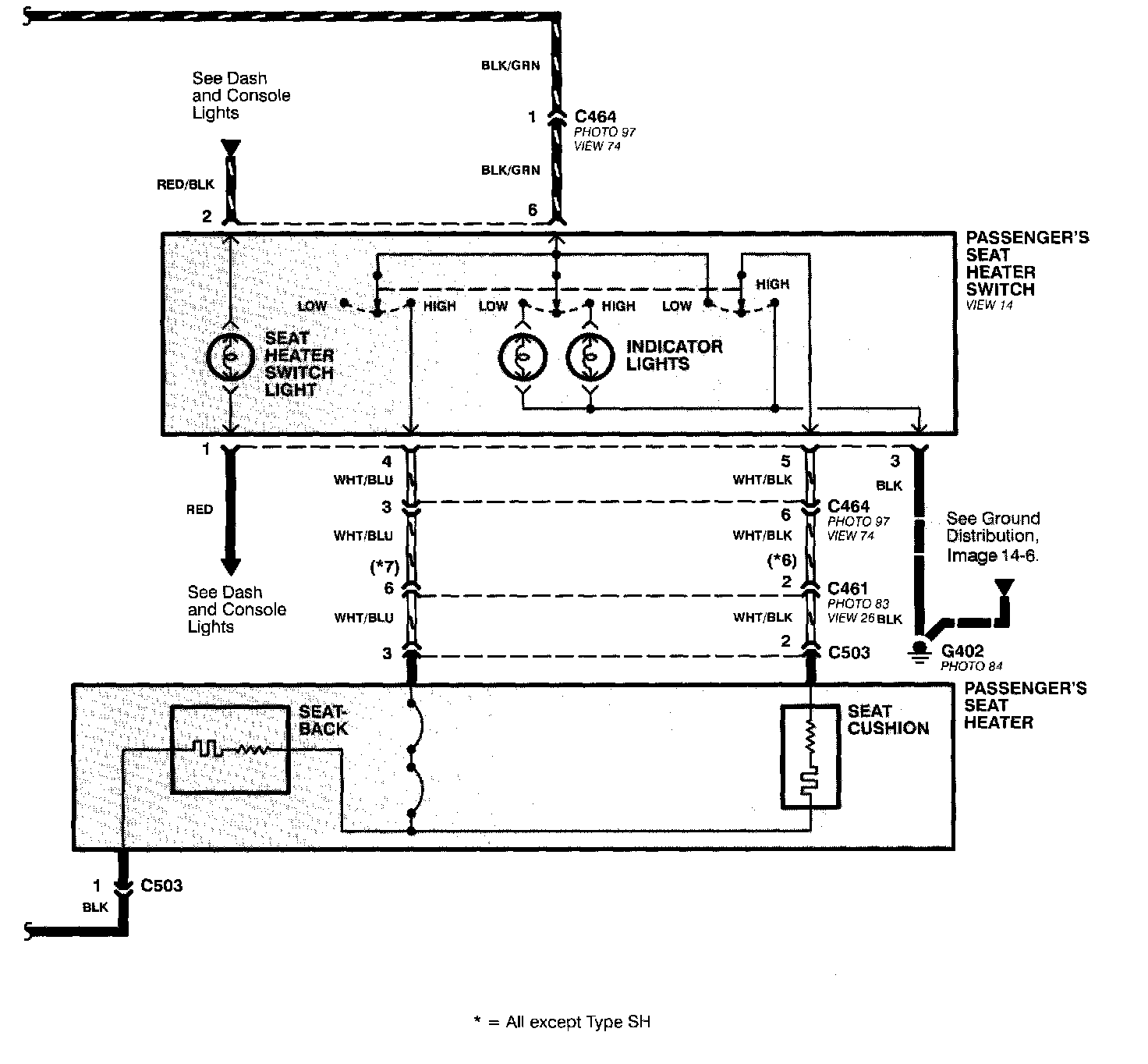

Seat Heaters - Canada Image 147:

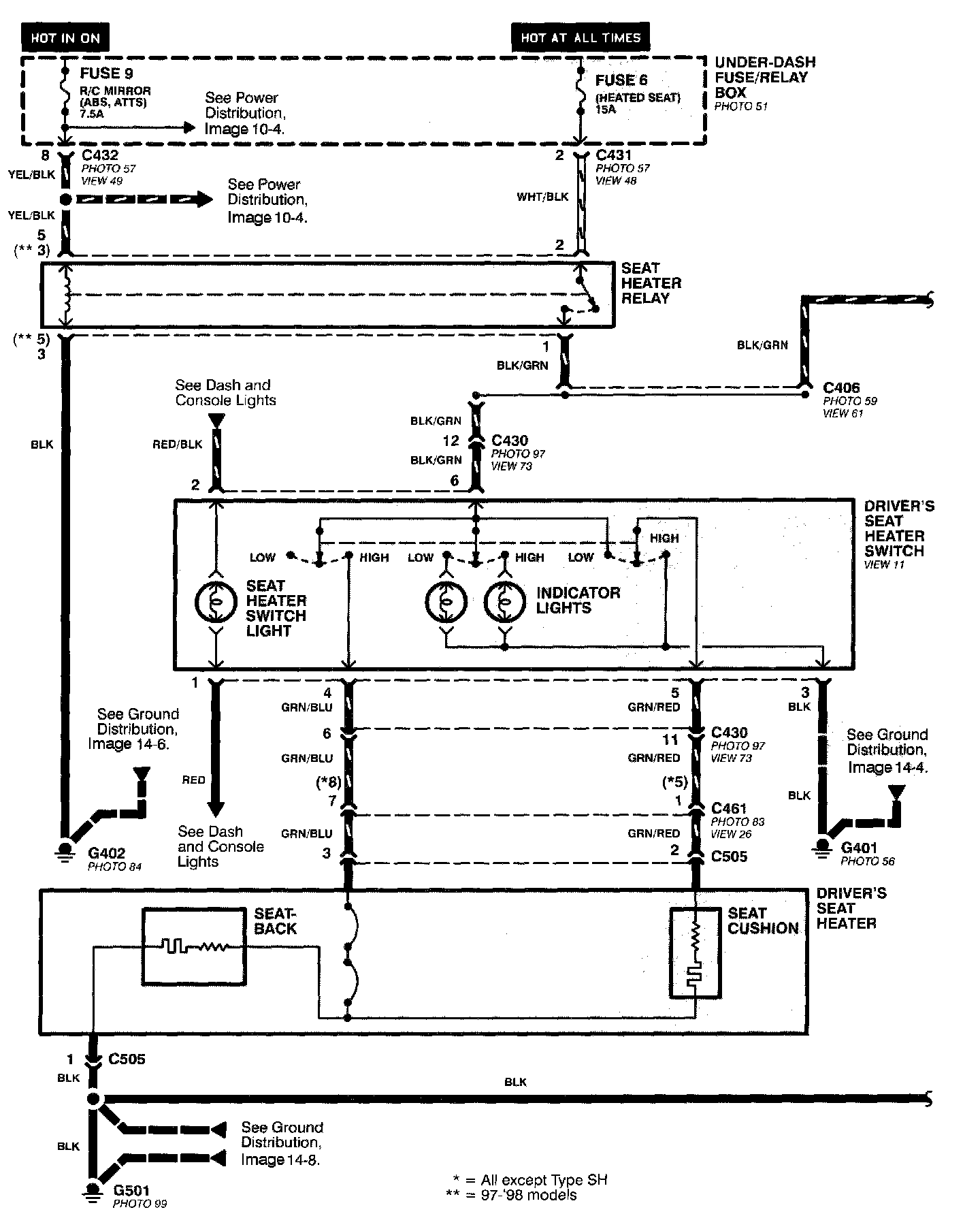

Seat Heaters - Canada Image 147-1:
