Home >> Honda >> 2003 >> Accord L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> Views 26-50 >> 47

Views 26-50: 47

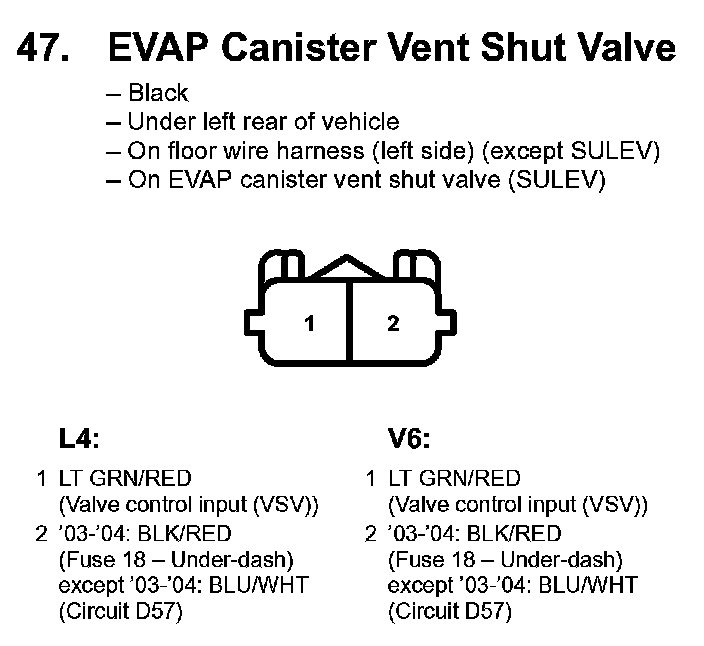

47. EVAP Canister Vent Shut Valve:
