75
Views 51-75: 75

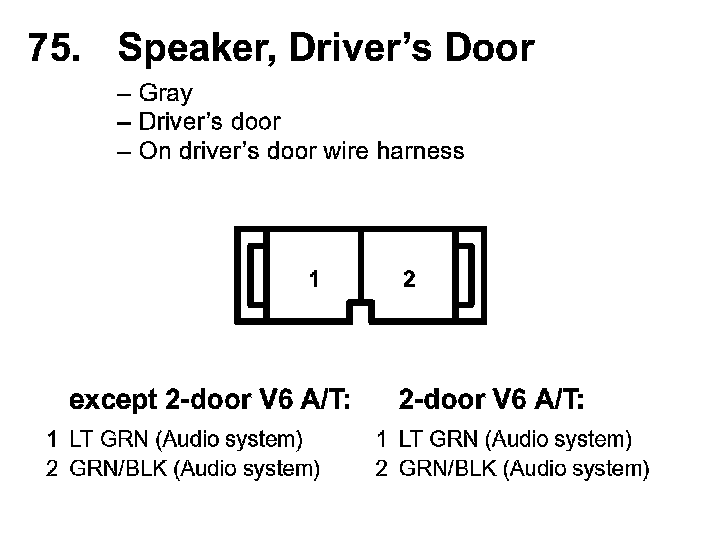

75. Speaker; Driver's Door:
76. Speaker, Front Passenger's Door:
77. Speaker, Left Rear:
78. Speaker, Right Rear:
84. Tweeter, Left:
85. Tweeter, Right:
