Views 226-241: 228

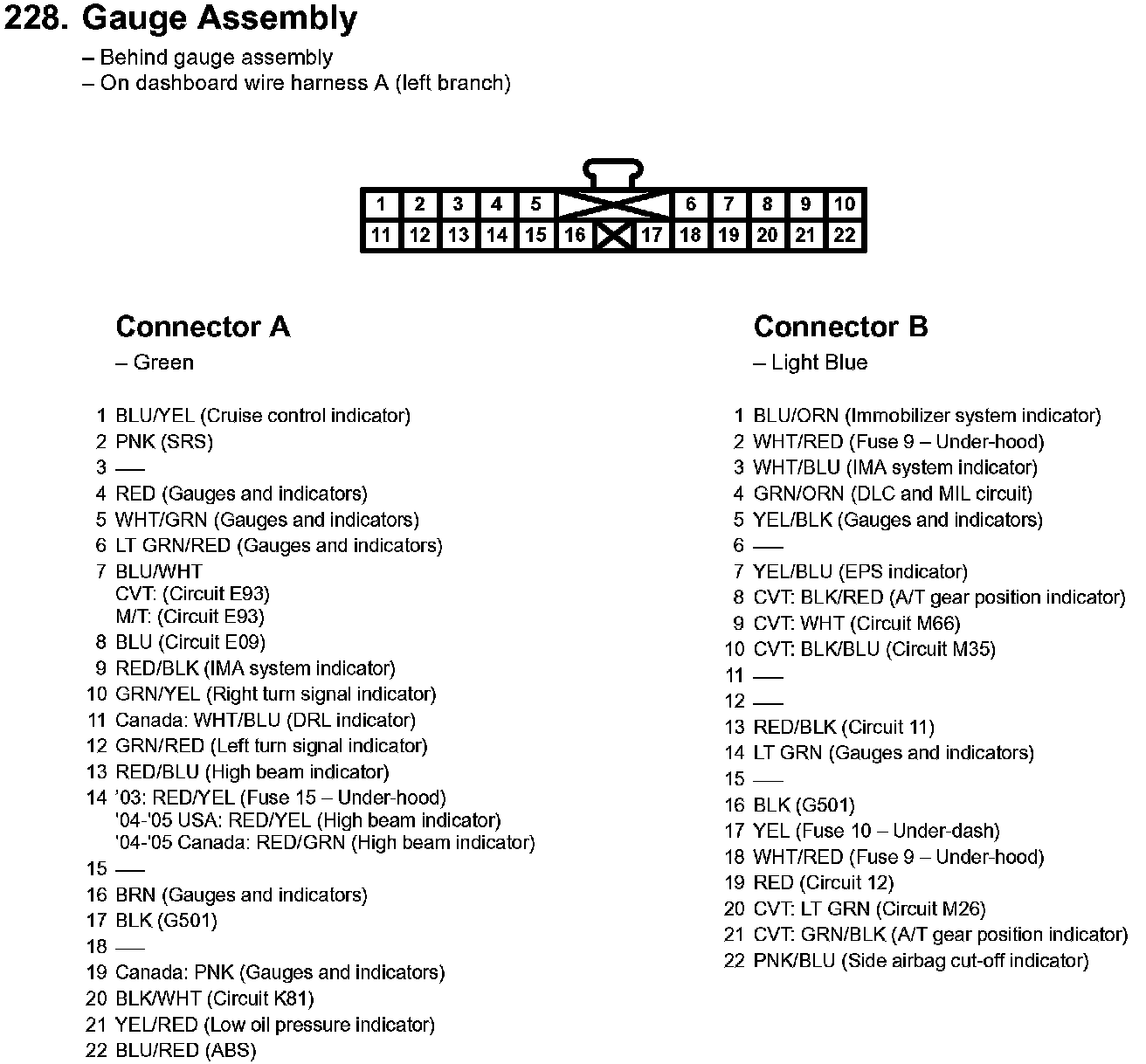

228. Gauge Assembly:

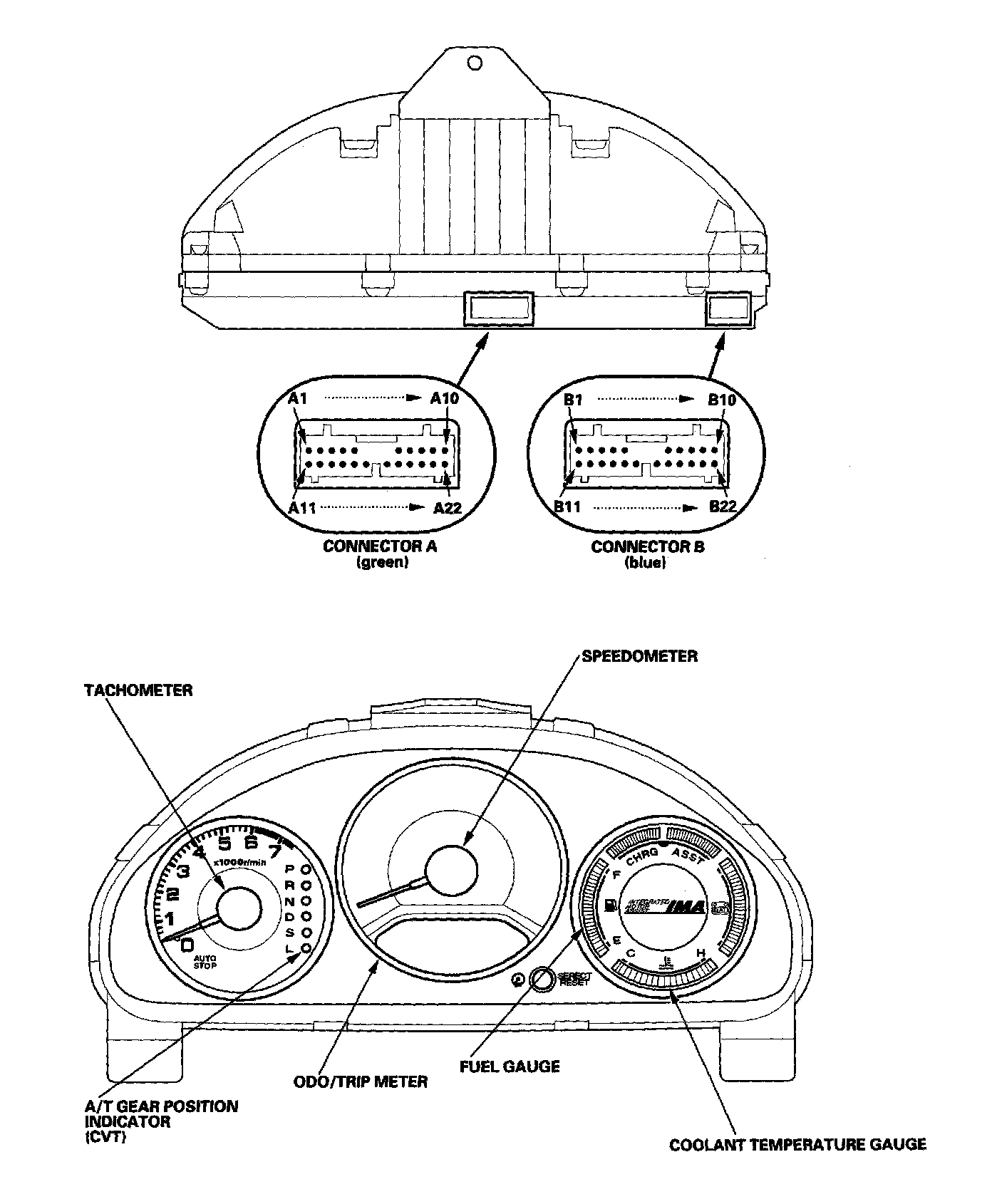

Gauges - Component Location Index:



Gauges - Component Location Index:
