Views 26-50: 30

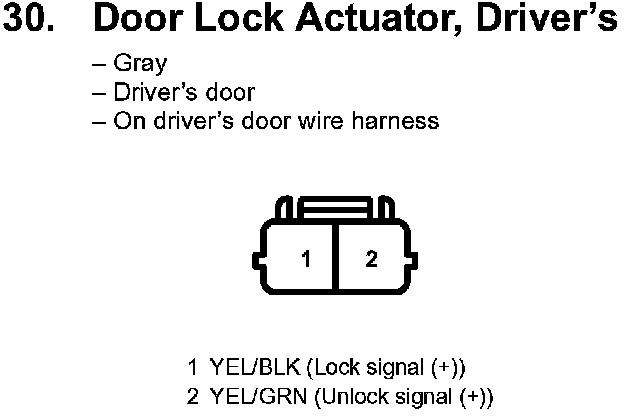

30. Door Lock Actuator, Driver's:

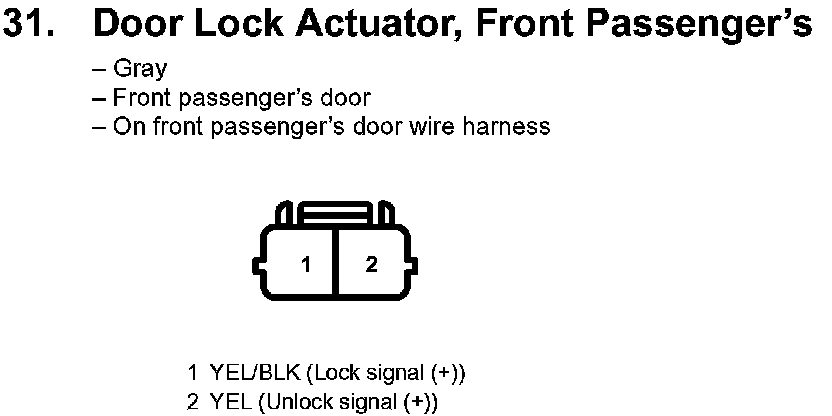

31. Door Lock Actuator, Front Passenger's:

32. Door Lock Actuator, Left Rear:

33. Door Lock Actuator, Right Rear:
