61
Views 51-75: 61
61. Seat Belt Tensioner, Driver's:

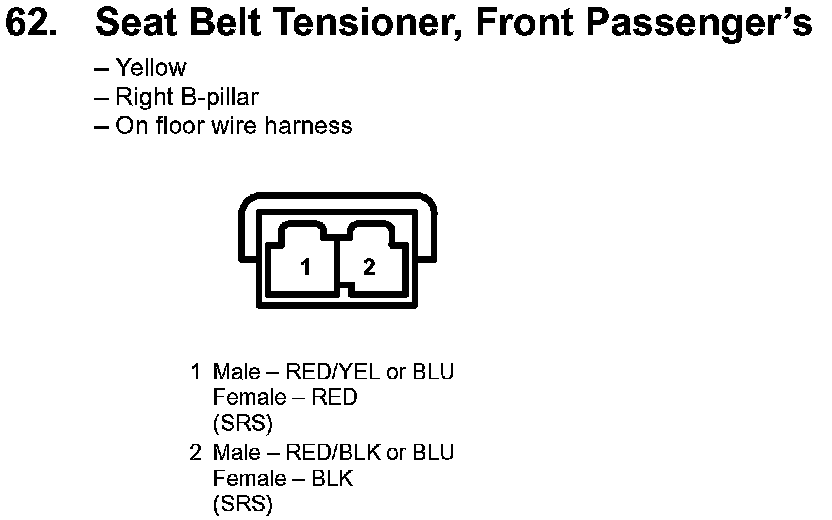

62. Seat Belt Tensioner, Front Passenger's:

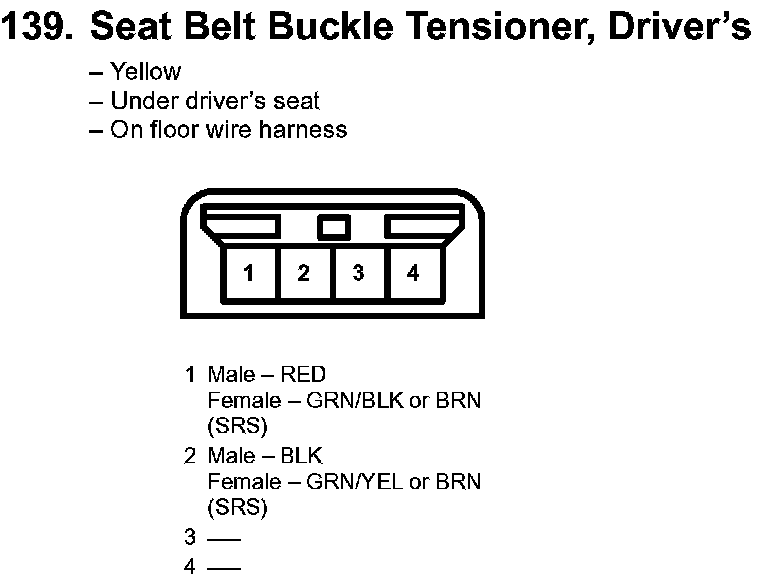

139. Seat Belt Buckle Tensioner, Driver's:

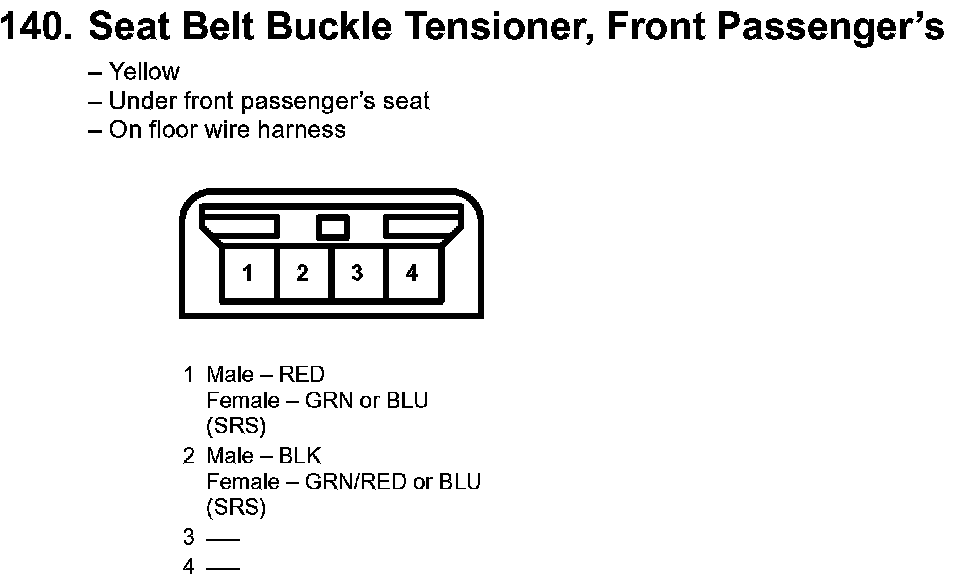

140. Seat Belt Buckle Tensioner, Front Passenger's:
