Views 51-75: 65

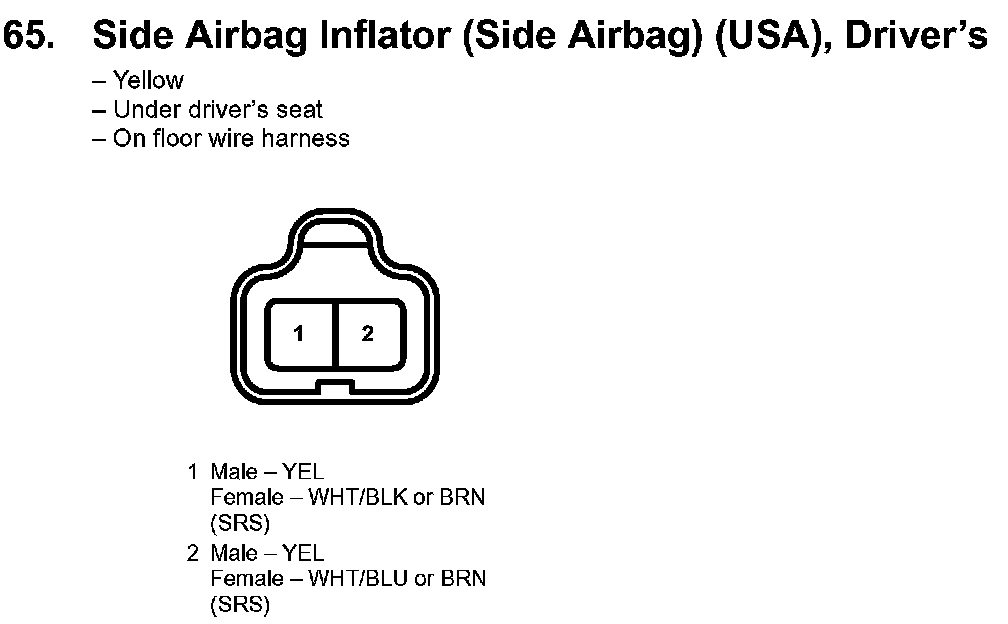

65. Side Airbag Inflator (Side Airbag) (USA), Driver's:

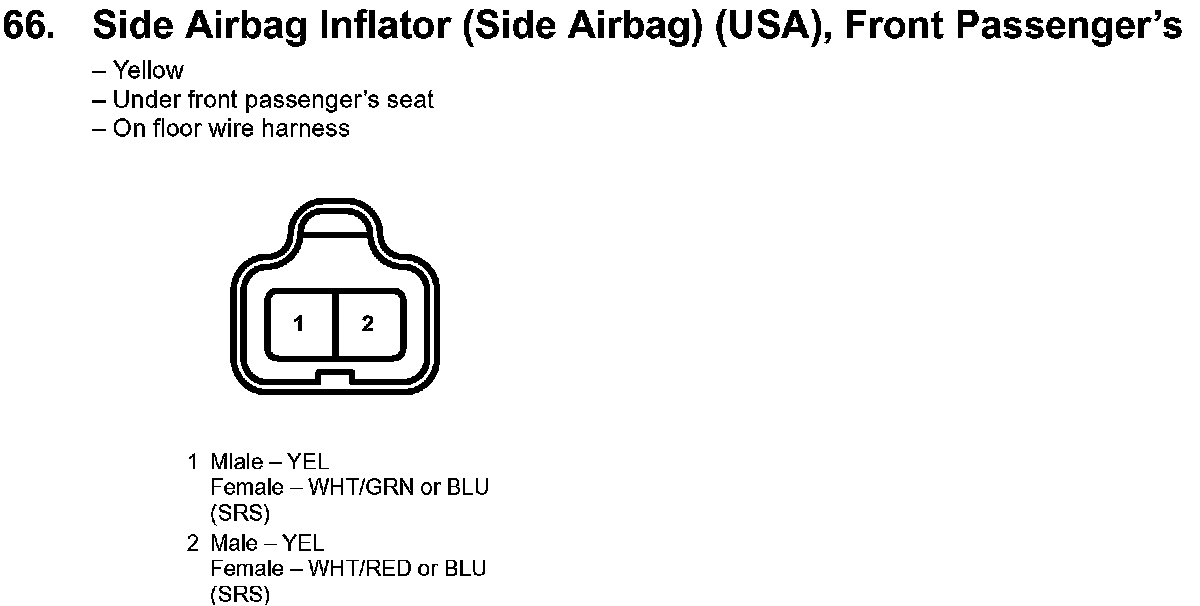

66. Side Airbag Inflator (Side Airbag) (USA), Front Passenger's:

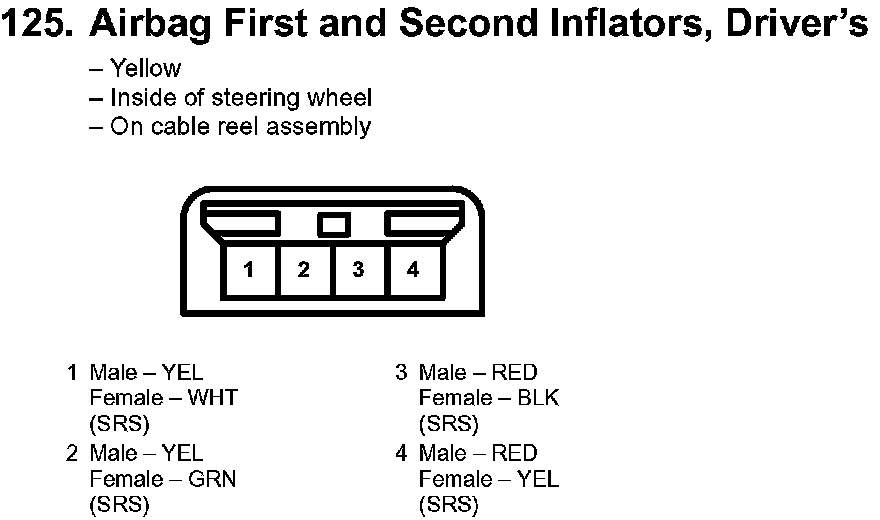

125. Airbag First And Second Inflators, Driver's:

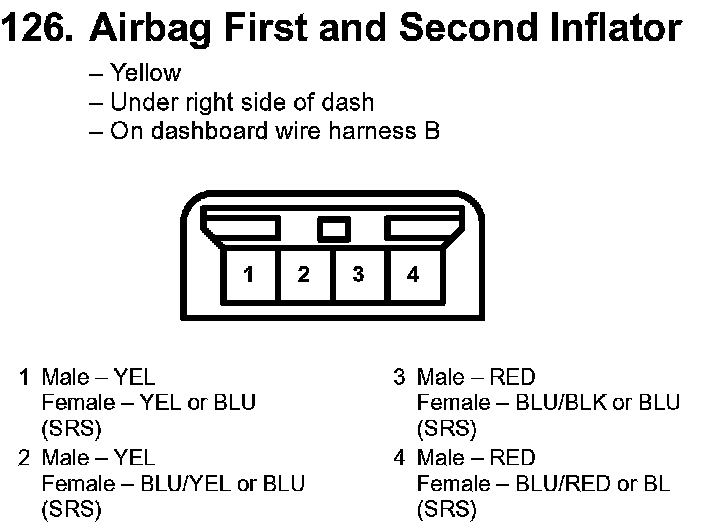

126. Airbag First And Second Inflator:
