Views 51-75: 75

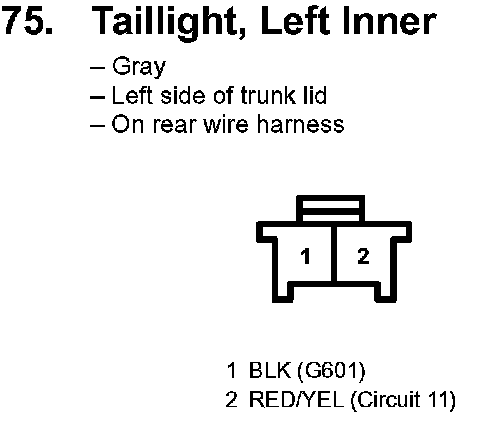

75. Taillight, Left Inner:



76. Taillight, Right Inner:



128. Brake Light/Taillight, Left:



129. Brake Light/Taillight, Right:
