Drive Belt: Service and Repair

Replacement

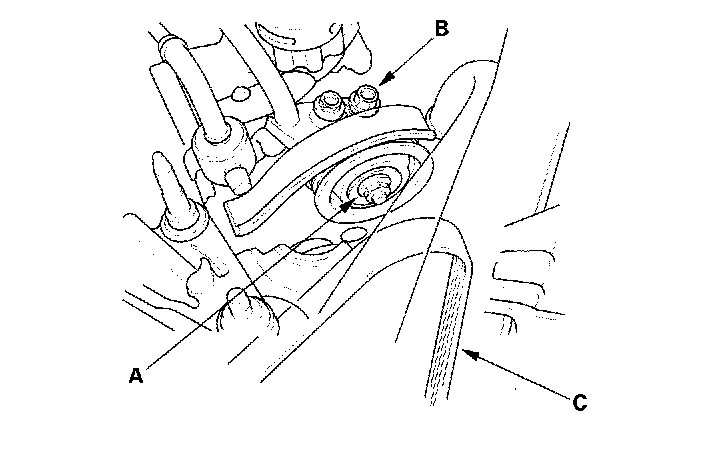

1. Loosen the idler pulley center bolt (A) and adjusting bolt (B), then remove the drive belt (C).
2. Install the drive belt in the reverse order of removal.
3. Adjust the belt tension.
