EGR Valve: Service and Repair

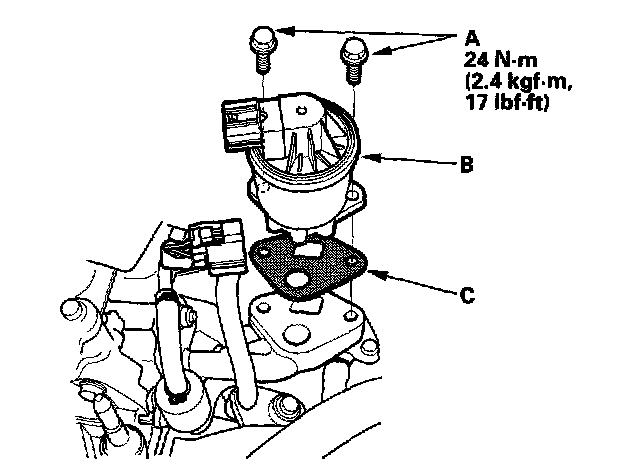

1. Remove the EGR valve 6P connector.




2. Remove the bolts (A).
3. Remove the EGR valve (B).
4. Install the valve in the reverse order of removal with a new gasket (C).
