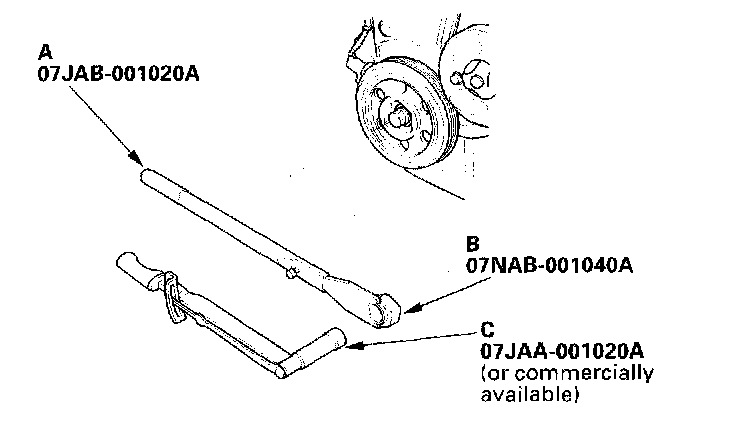

Crankshaft Pulley

Tighten the bolt to 37 Nm (3.8 kgf-cm, 27 ft. lbs.)

If the pulley bolt or crankshaft are new, tighten the bolt to 177 Nm (18.0 kgf-cm, 130 ft. lbs.), then remove the bolt and tighten it to 37 Nm (3.8 kgf-cm, 27 ft. lbs.)


Tighten the pulley bolt an additional 90°
