Daytime Running Lamp Diode Assembly
Daytime Running Lamp Diode Assembly

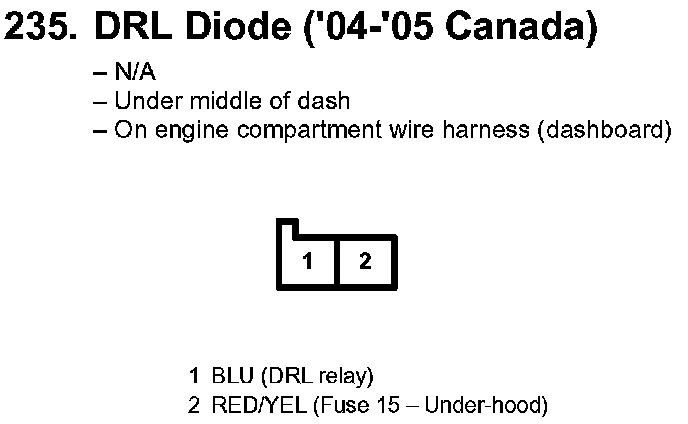

235. DRL Diode ('04-'05 Canada):
