Computers and Control Systems: Locations

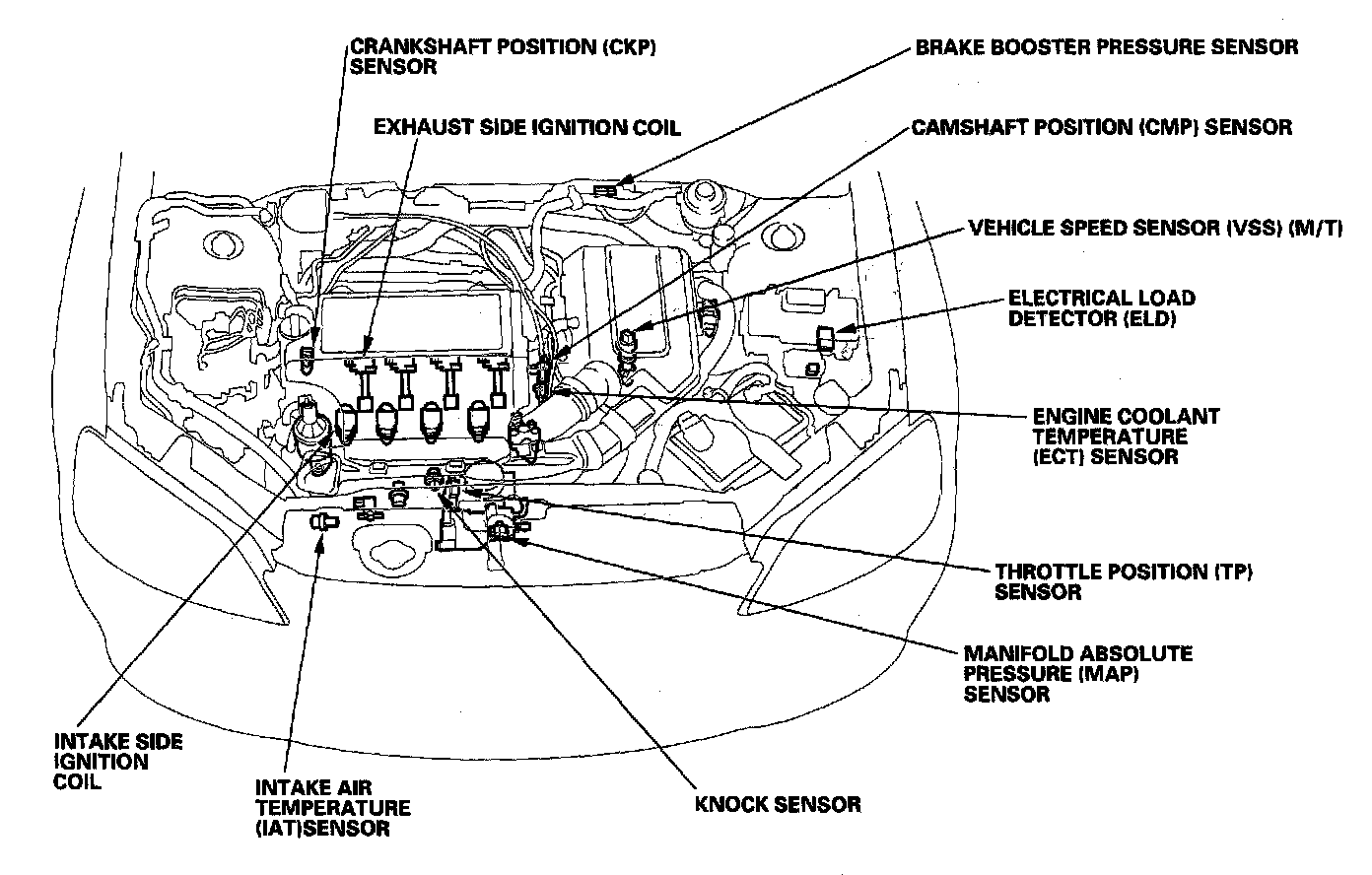

PGM-FI System - Component Location Index:

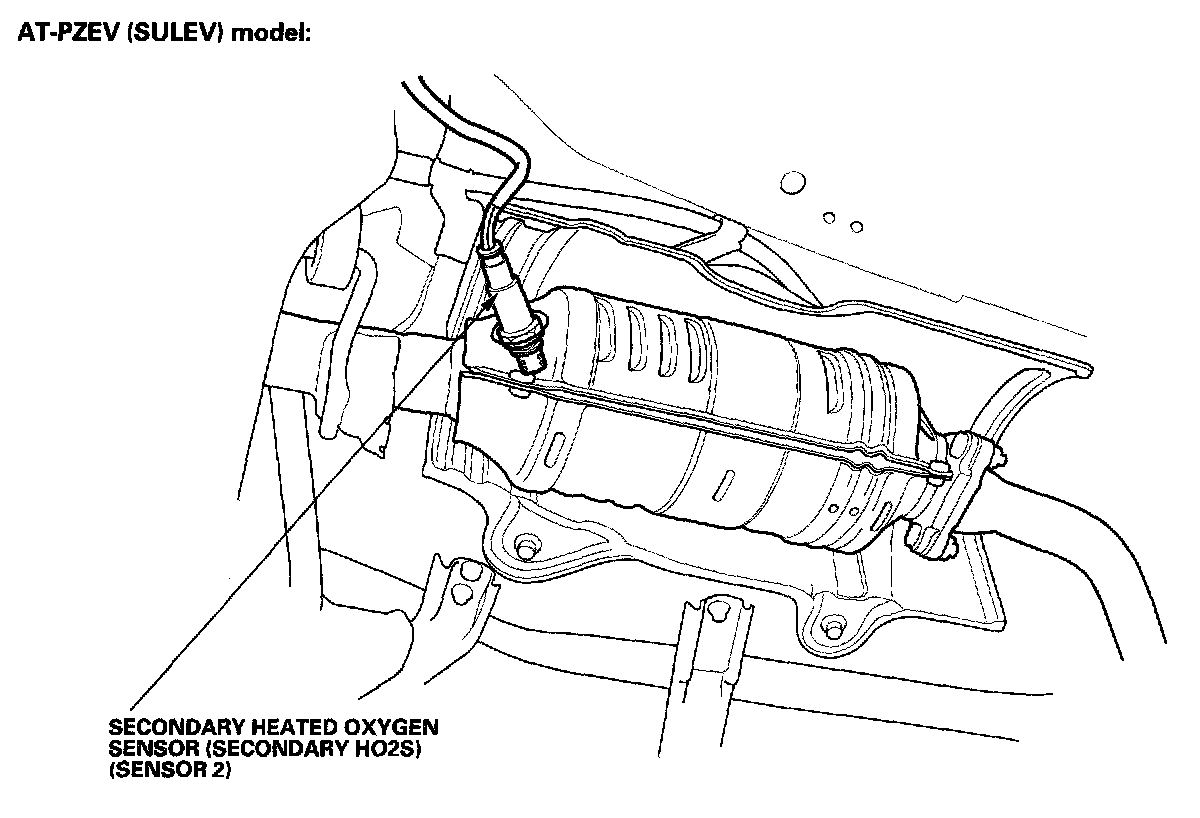

PGM-FI System - Component Location Index (AT-PZEV (SULEV) Model):

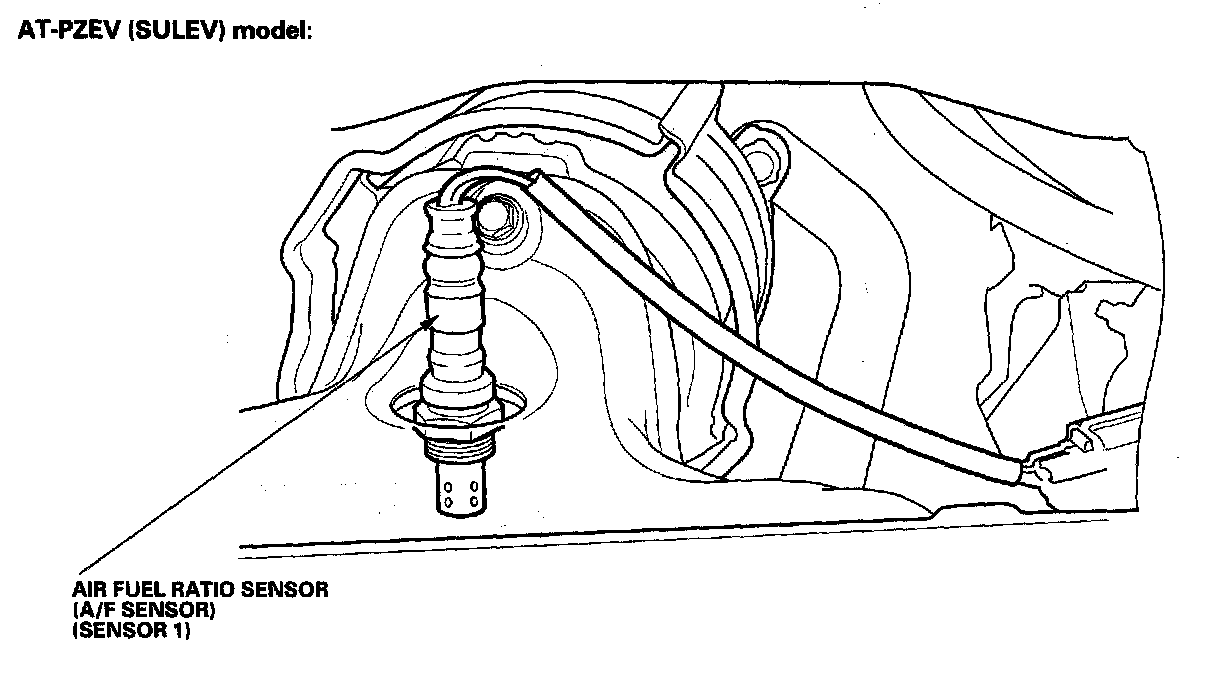

PGM-FI System - Component Location Index (AT-PZEV (SULEV) Model):

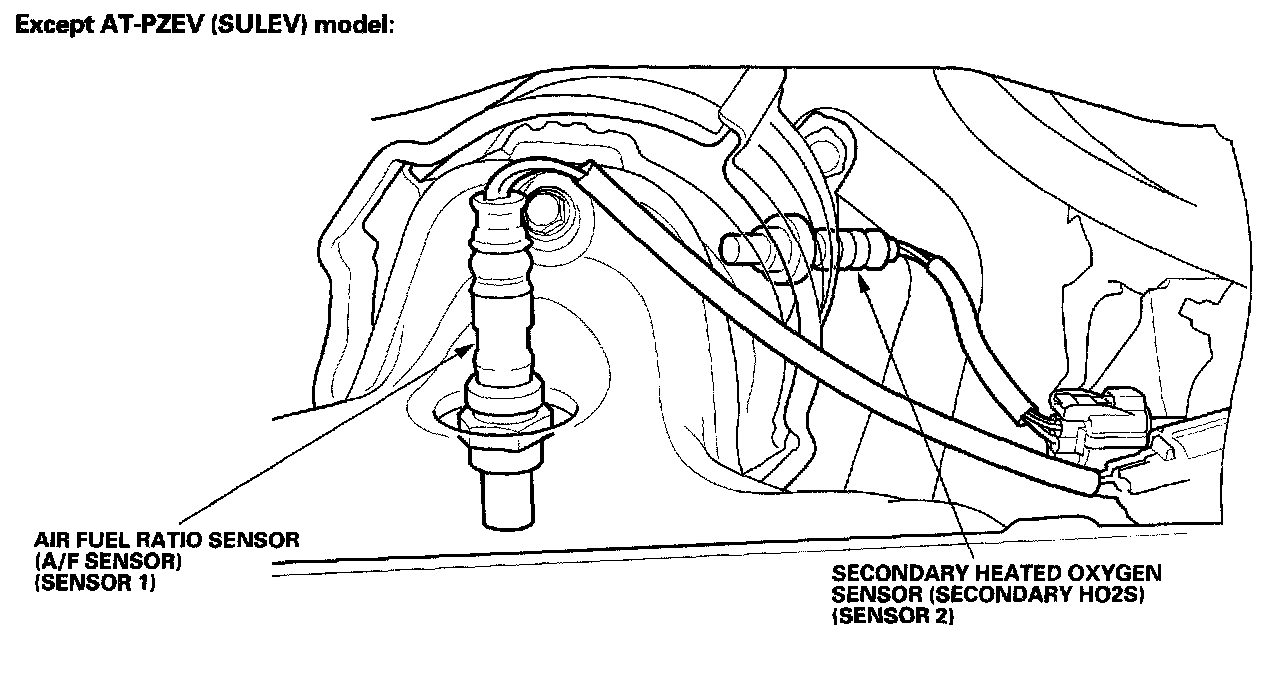

PGM-FI System - Component Location Index (Except AT-PZEV (SULEV) Model):

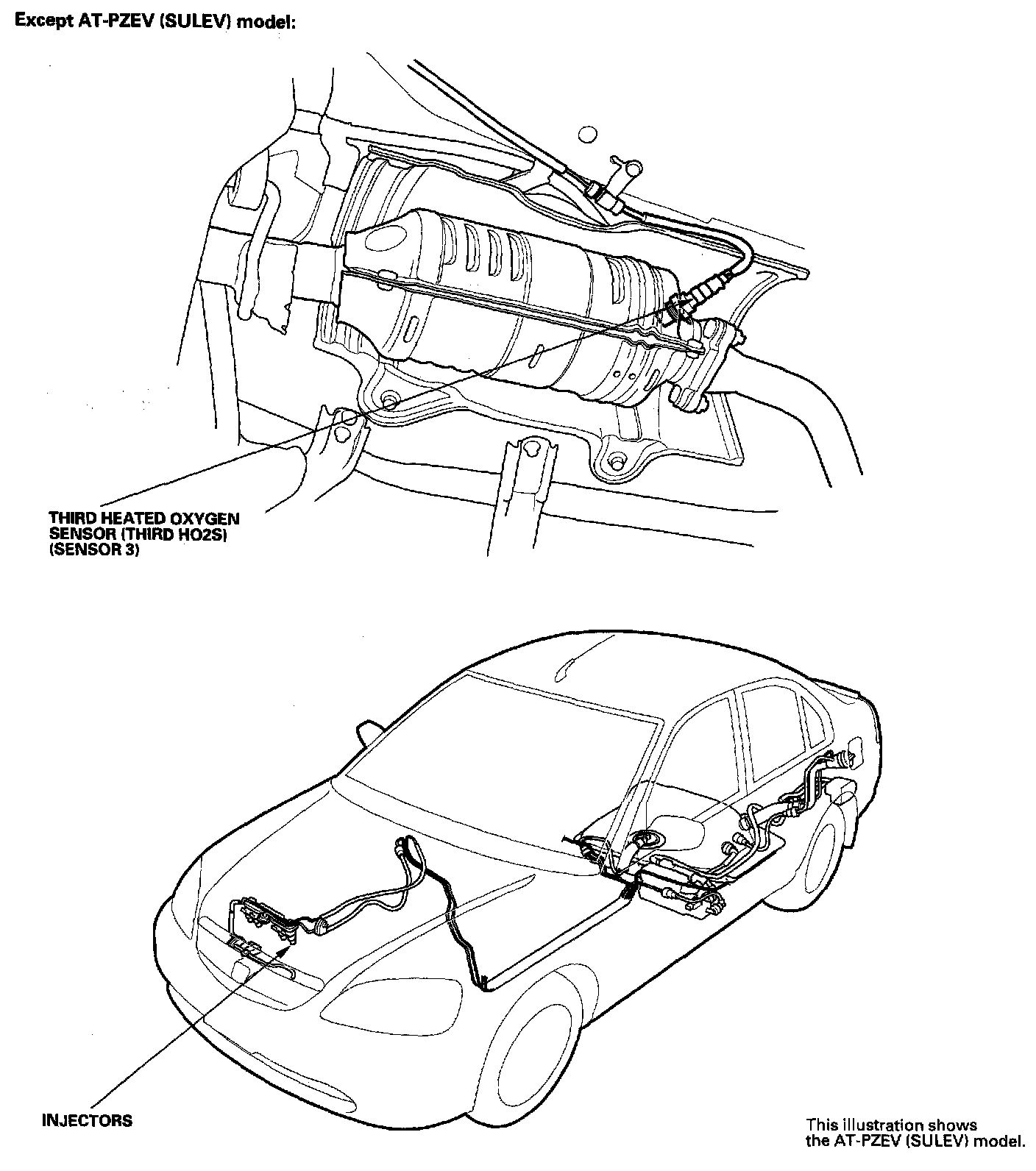

PGM-FI System - Component Location Index (Except AT-PZEV (SULEV) Model):

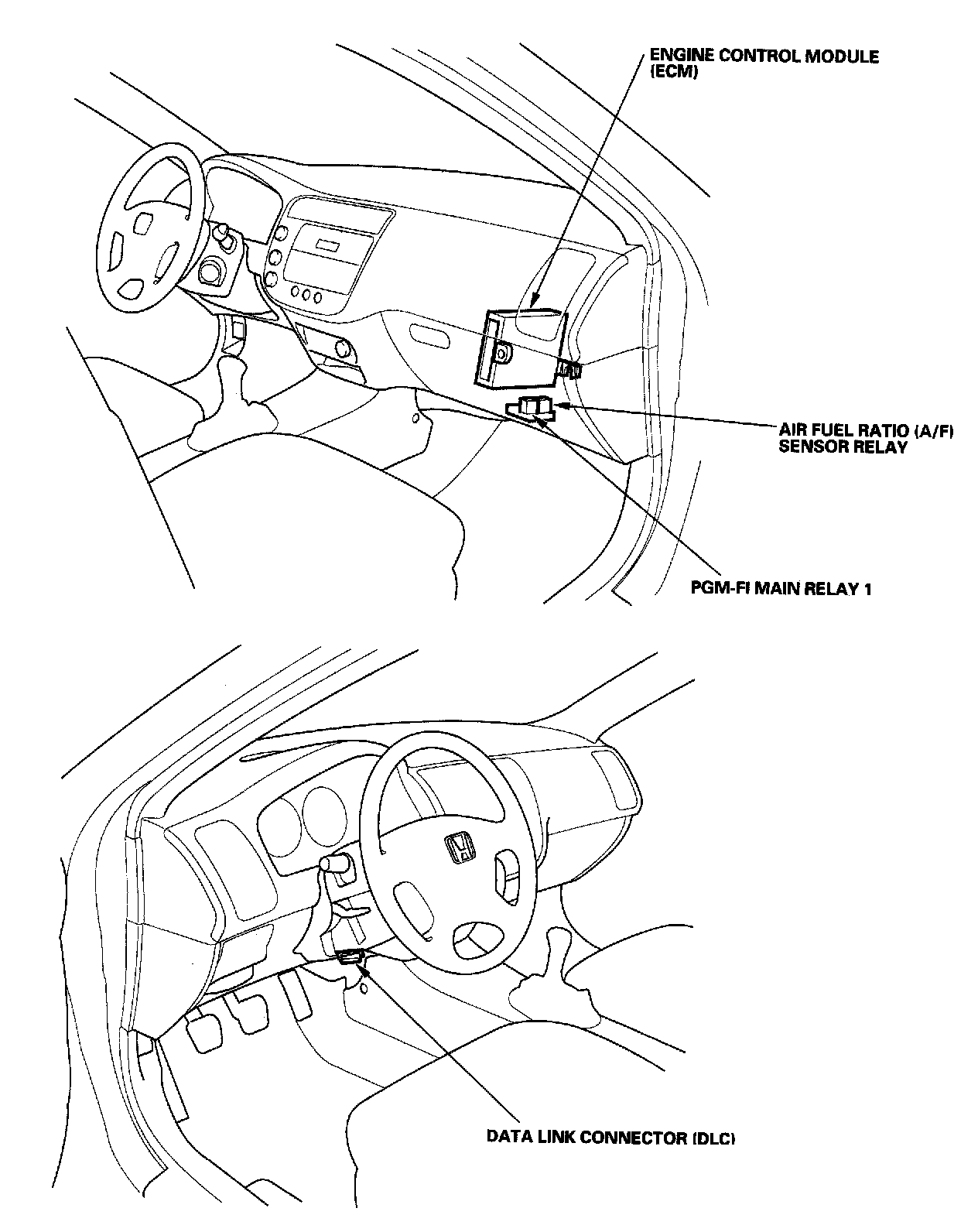

PGM-FI System - Component Location Index:
