Computers and Control Systems: Locations

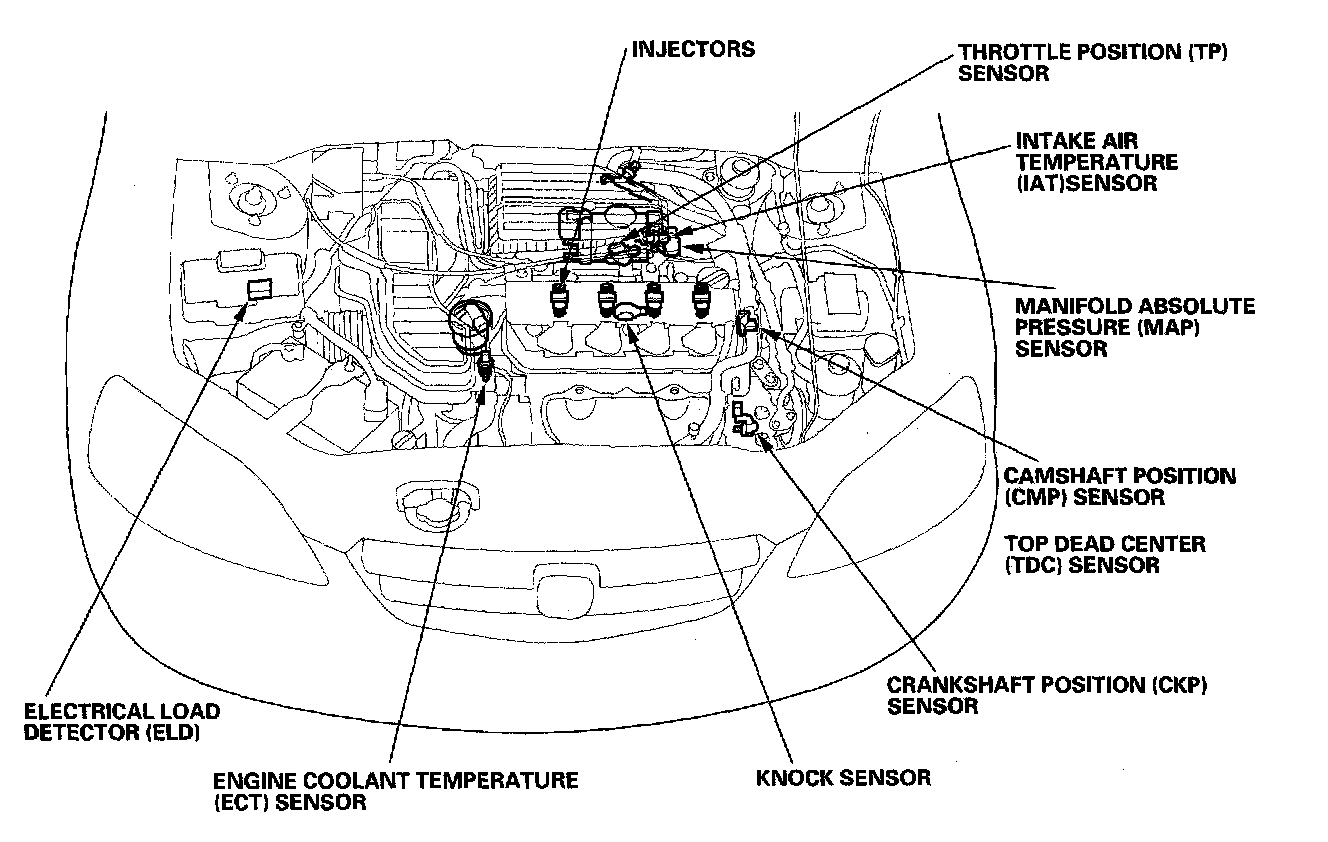

PGM-FI System - Component Location Index:

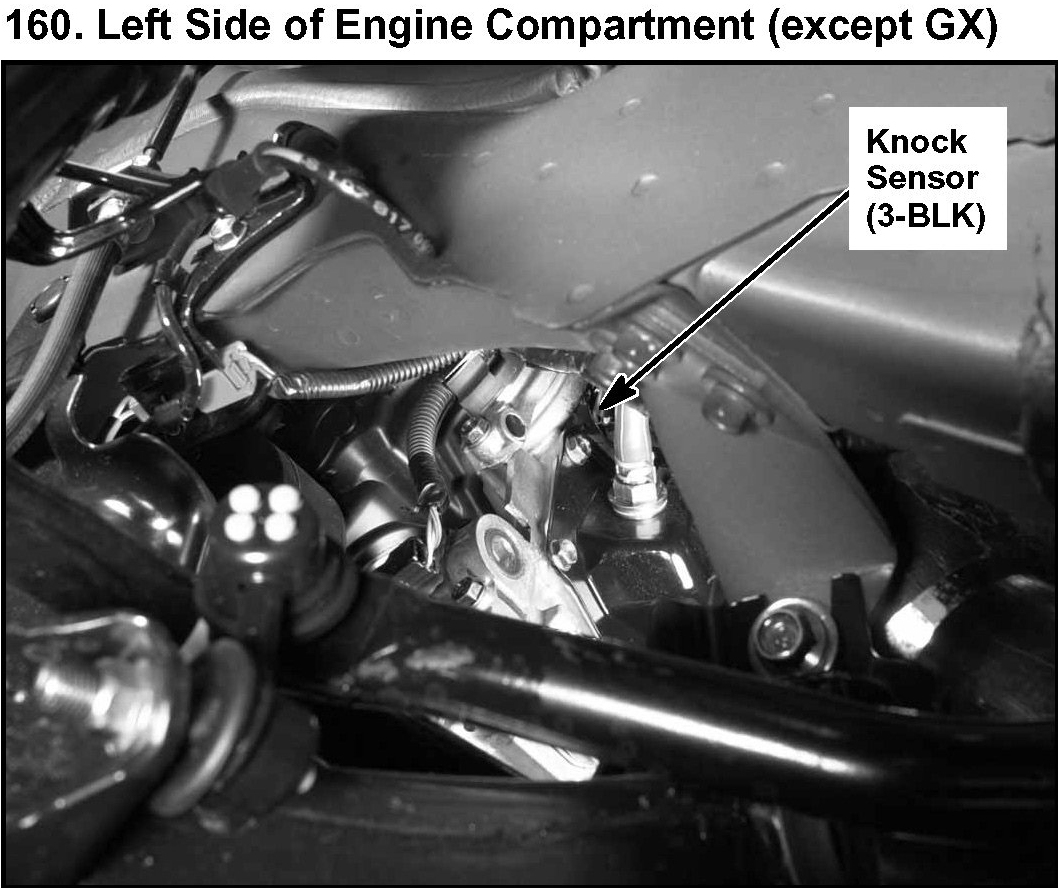

160. Left Side Of Engine Compartment (except GX):
