Body Control Systems: Locations

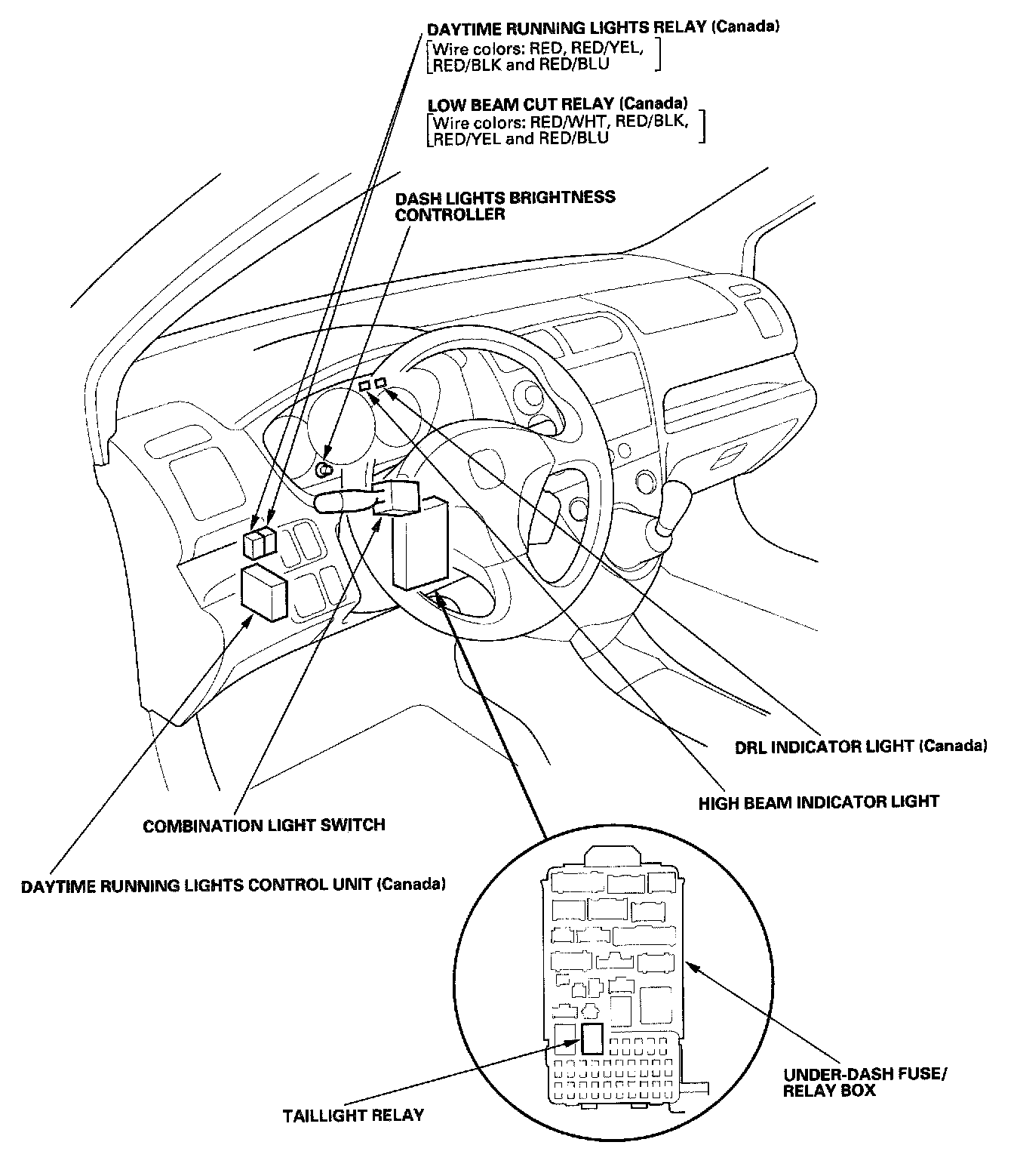

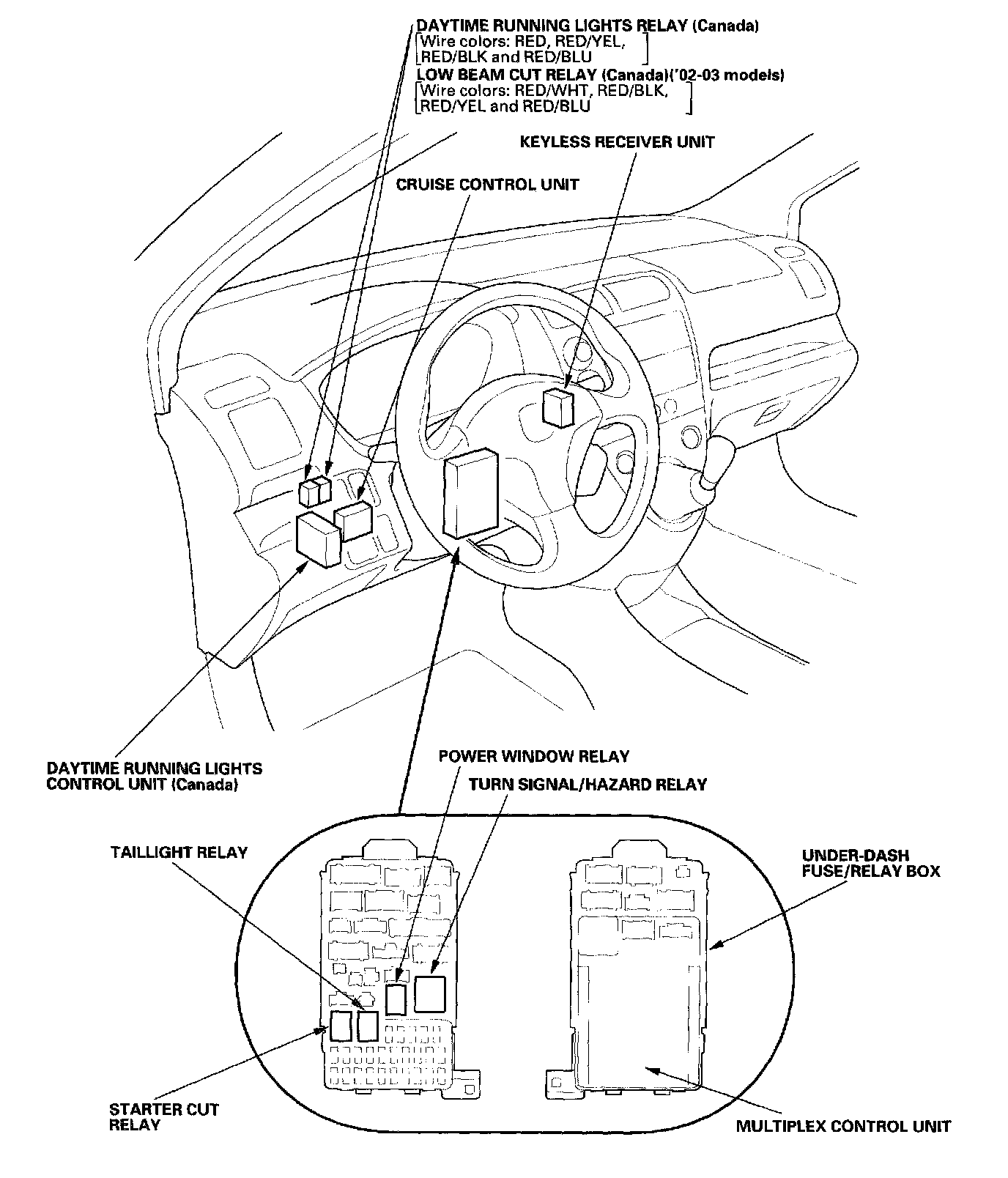

Relay and Control Unit Location - Dashboard:



Exterior Lights - Component Location Index:
