Home >> Honda >> 2004 >> Civic Si L4-2.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> Views 51-75 >> 60

Views 51-75: 60

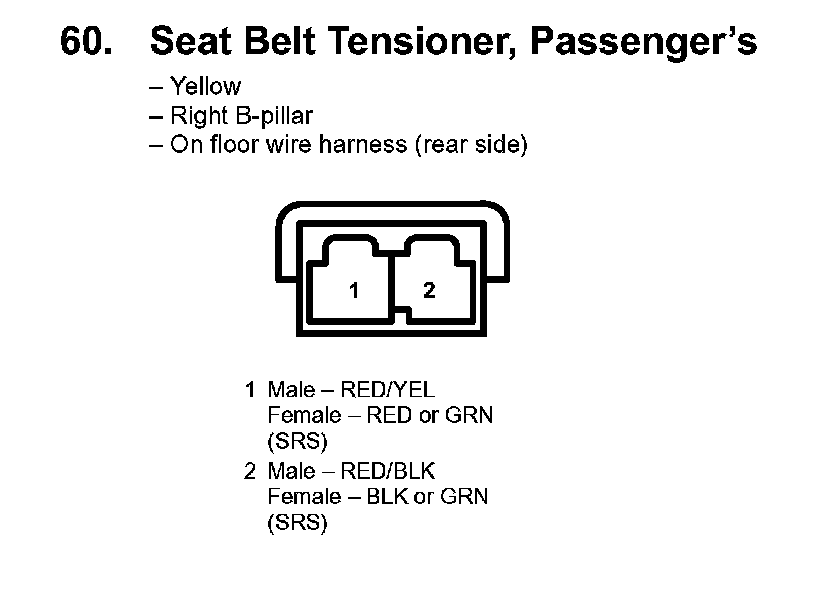

60. Seat Belt Tensioner, Passengers's:
