Circuit Diagrams

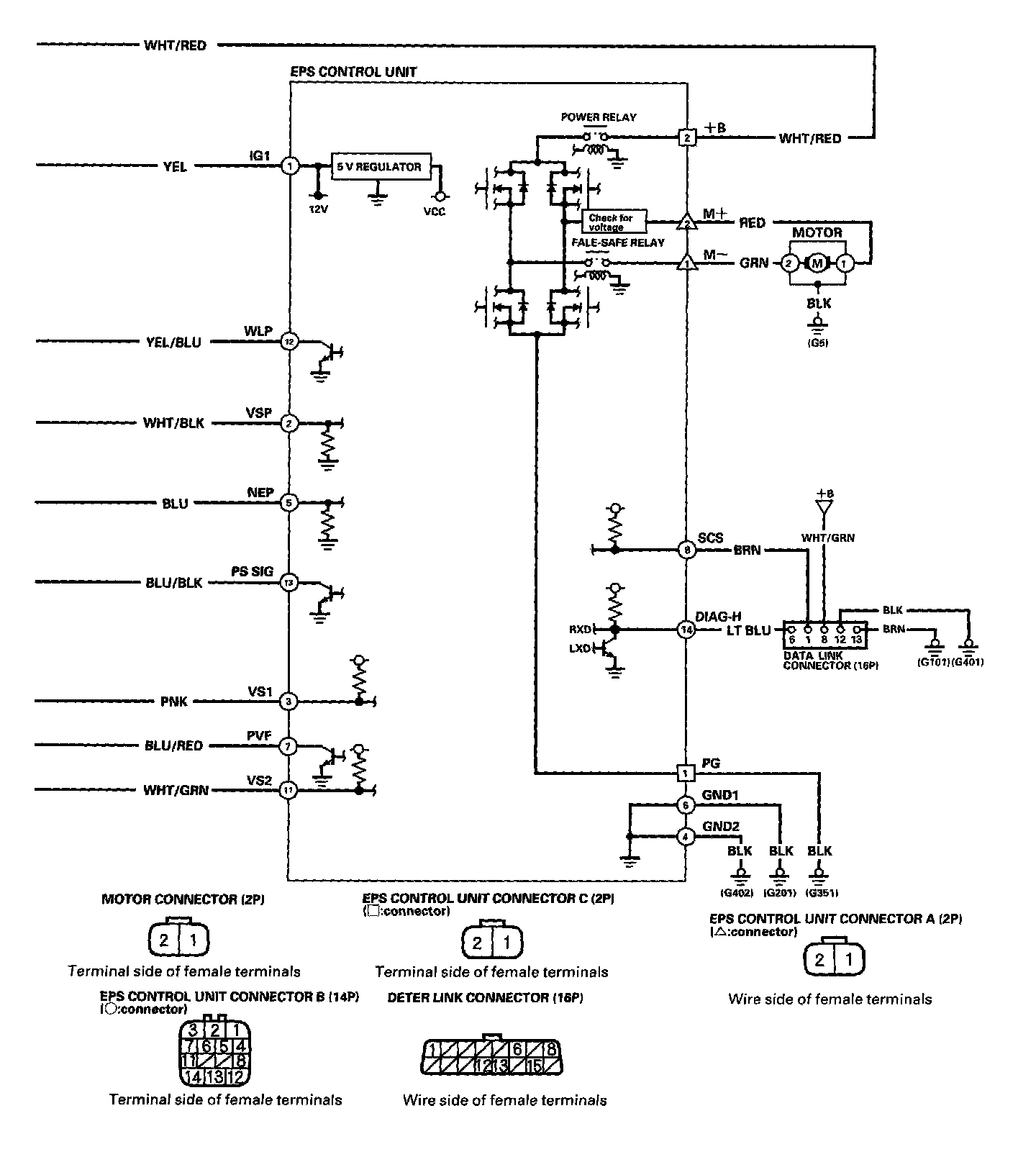

EPS Components Circuit Diagram Part 1 Of 2:

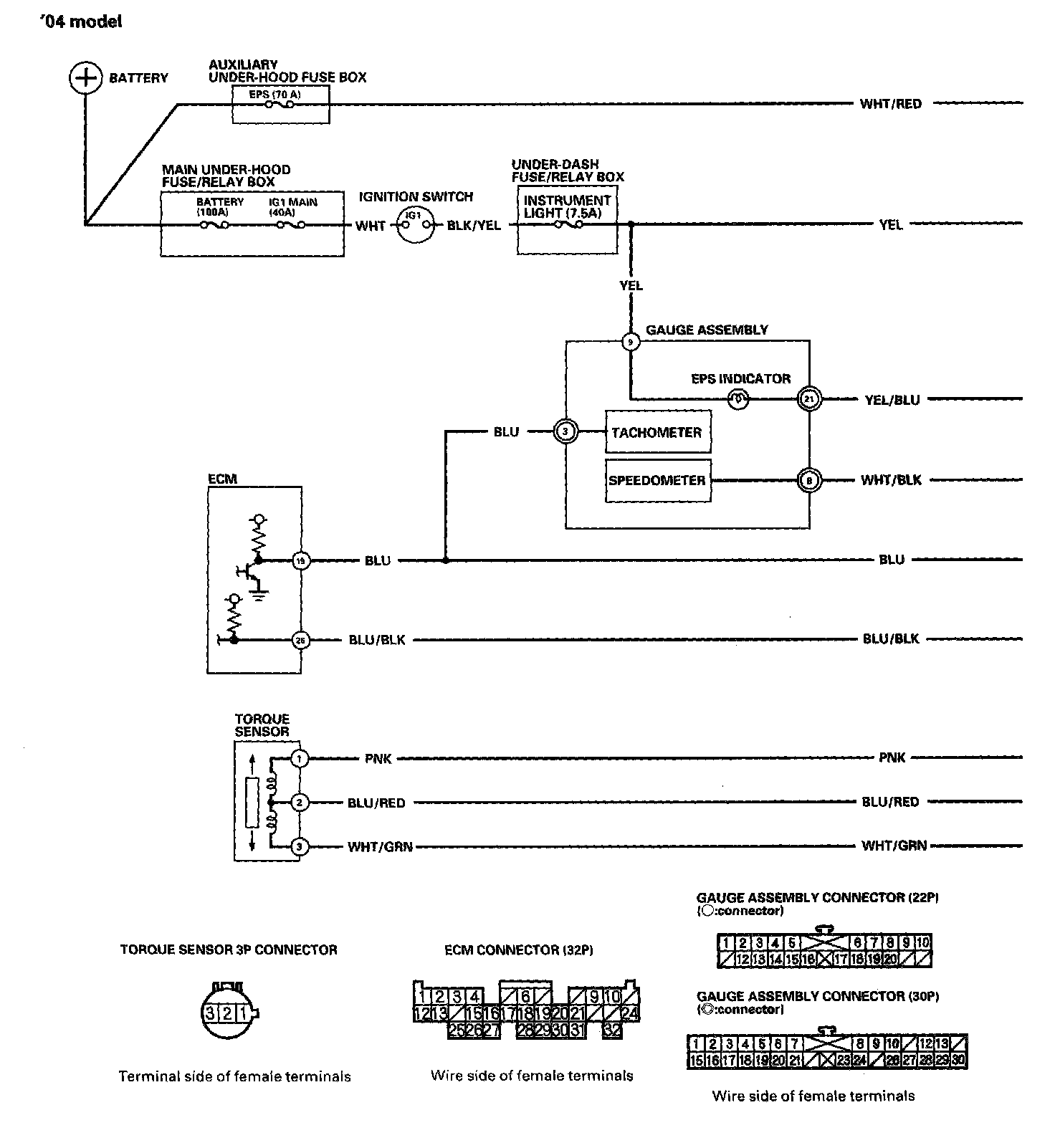

EPS Components Circuit Diagram Part 2 Of 2:
