Air Injection: Locations

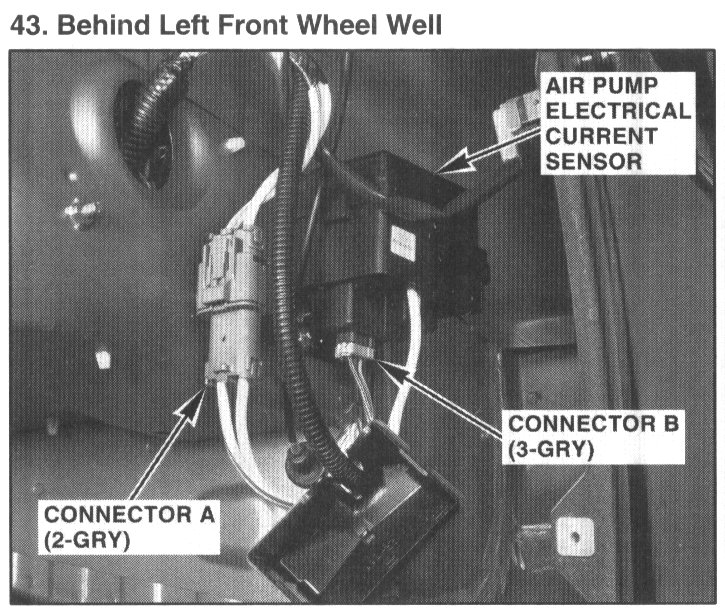

43. Behind Left Front Wheel Well:

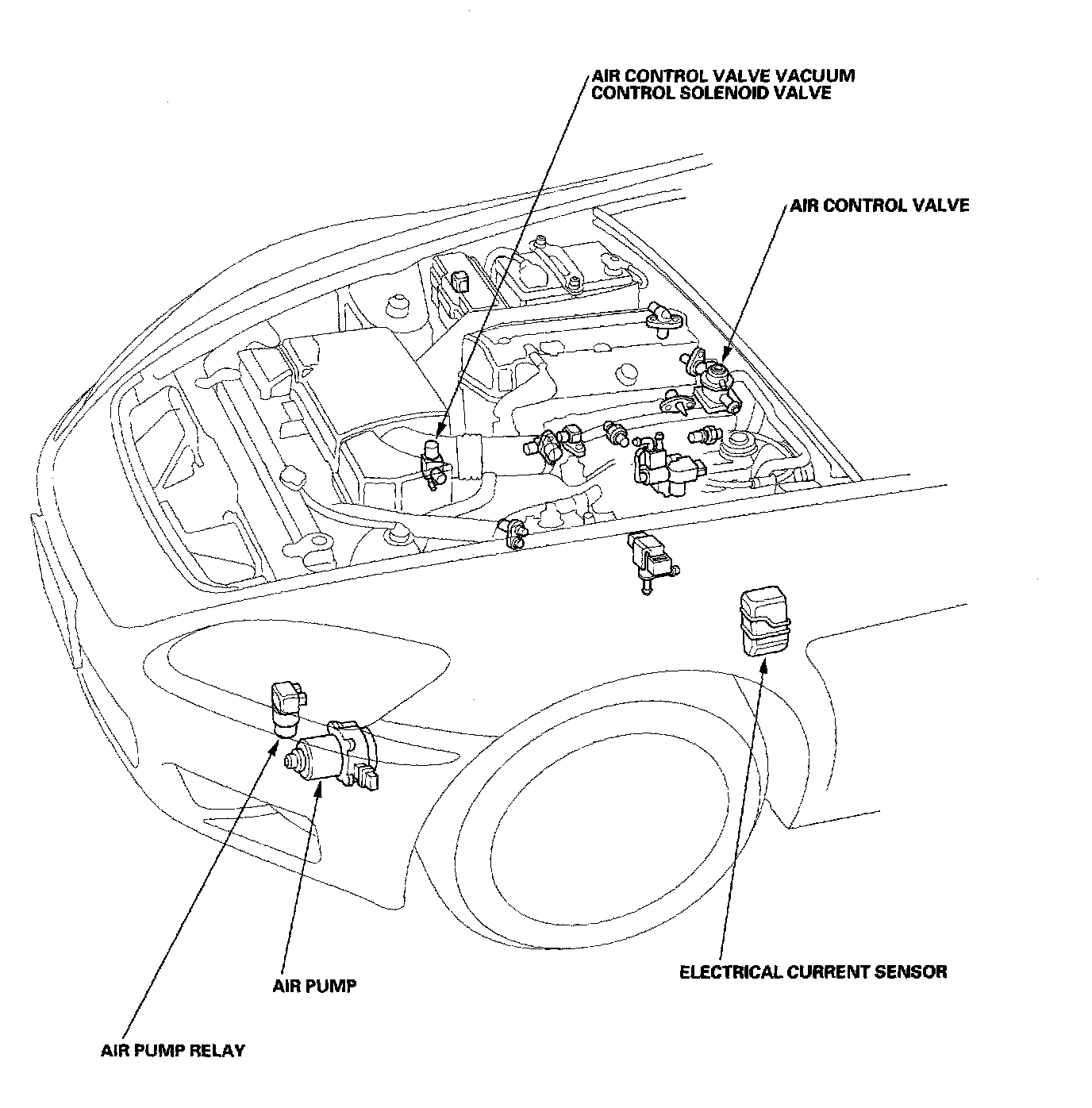

Pulsed Secondary Air Injection System - Component Location Index:
