View 1-25: 21

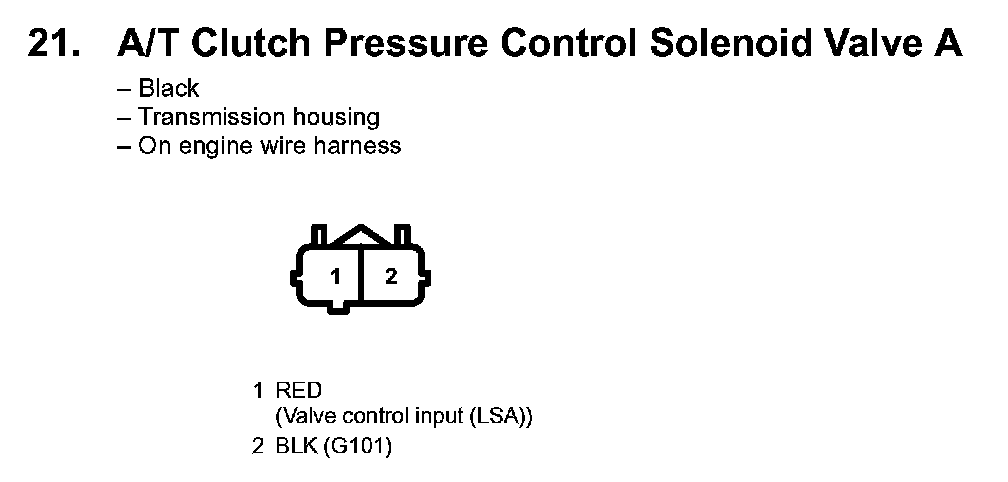

21. A/T Clutch Pressure Control Solenoid Valve A:

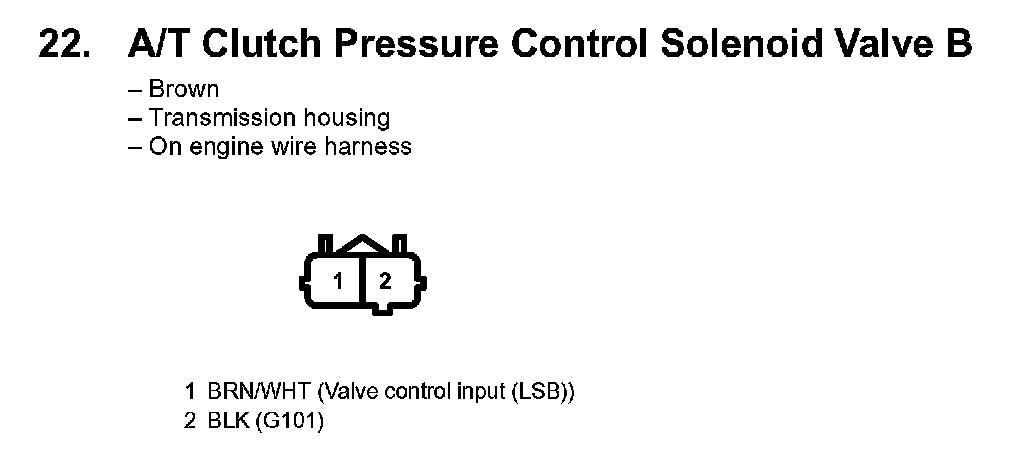

22. A/T Clutch Pressure Control Solenoid Valve B:

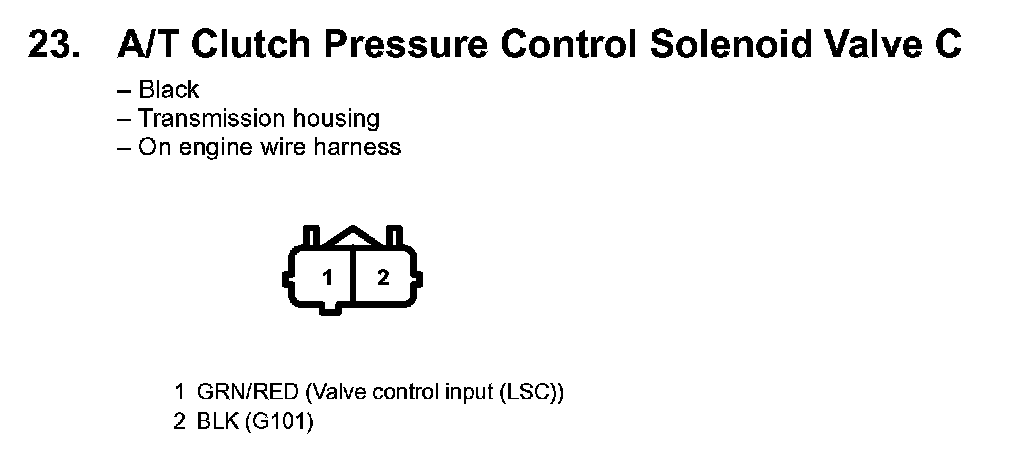

23. A/T Clutch Pressure Control Solenoid Valve C:
