Strut Tower Brace: Service and Repair

Under-floor Brace Replacement

NOTE: Take care not to scratch the body.

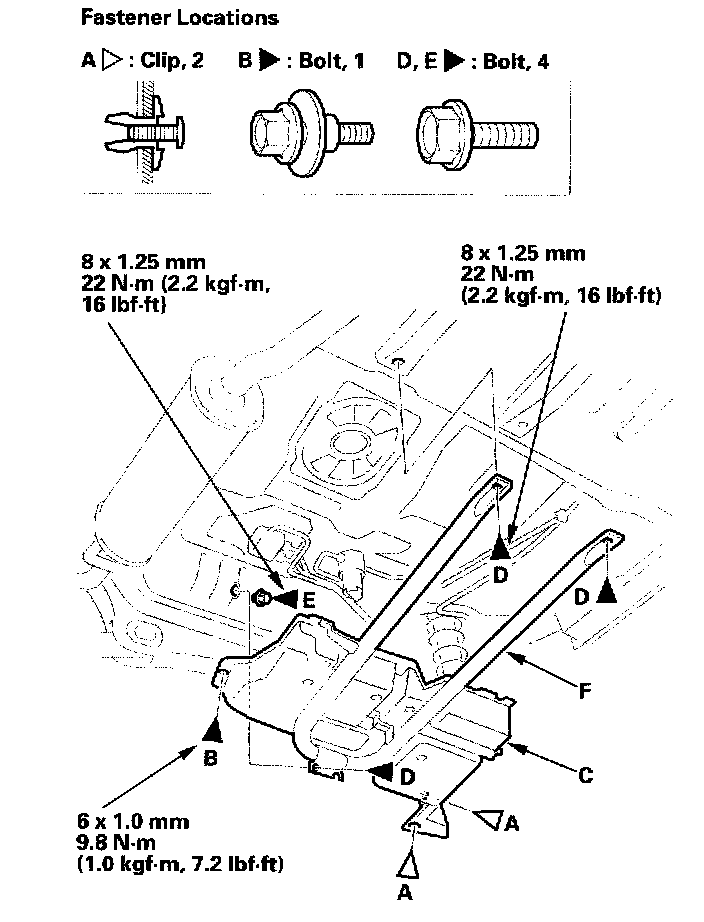

1. Remove the clips (A) and bolt (B) from the under-floor cover (C).
2. Remove the bolts (D), and loosen the bolt (E), then remove the under-floor brace (F) with the under-floor cover.

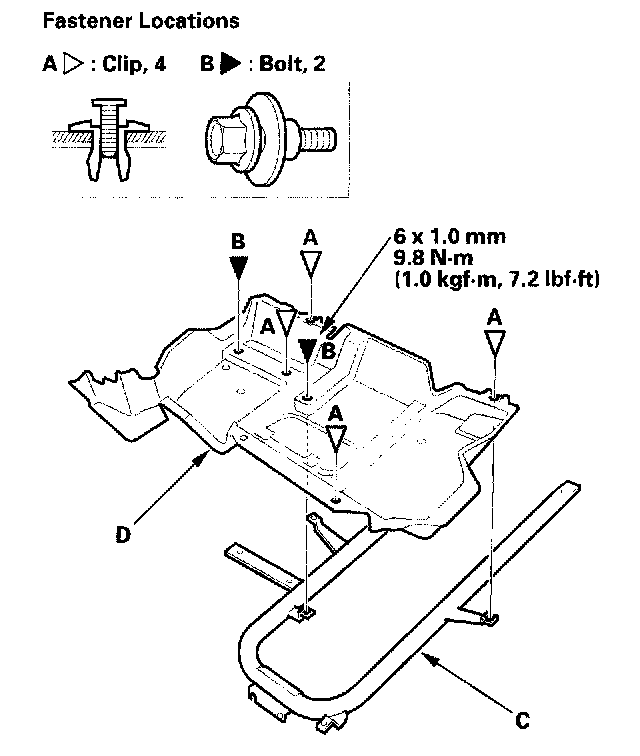

3. Remove the clips (A) and bolts (B), then separate the under-floor brace (C) and under-floor cover (D).
4. Install the brace in the reverse order of removal, and replace any damaged clips.
