Drive Motor Power Relay: Locations

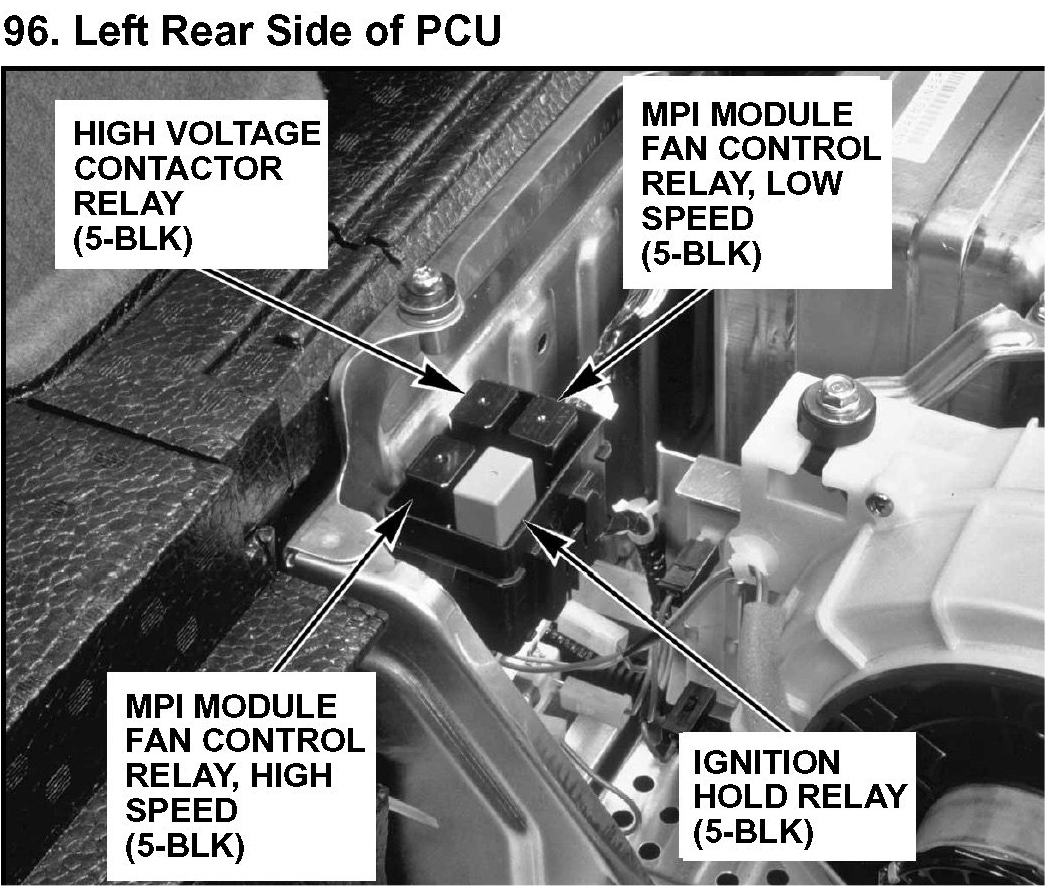

96. Left Rear Side of PCU:

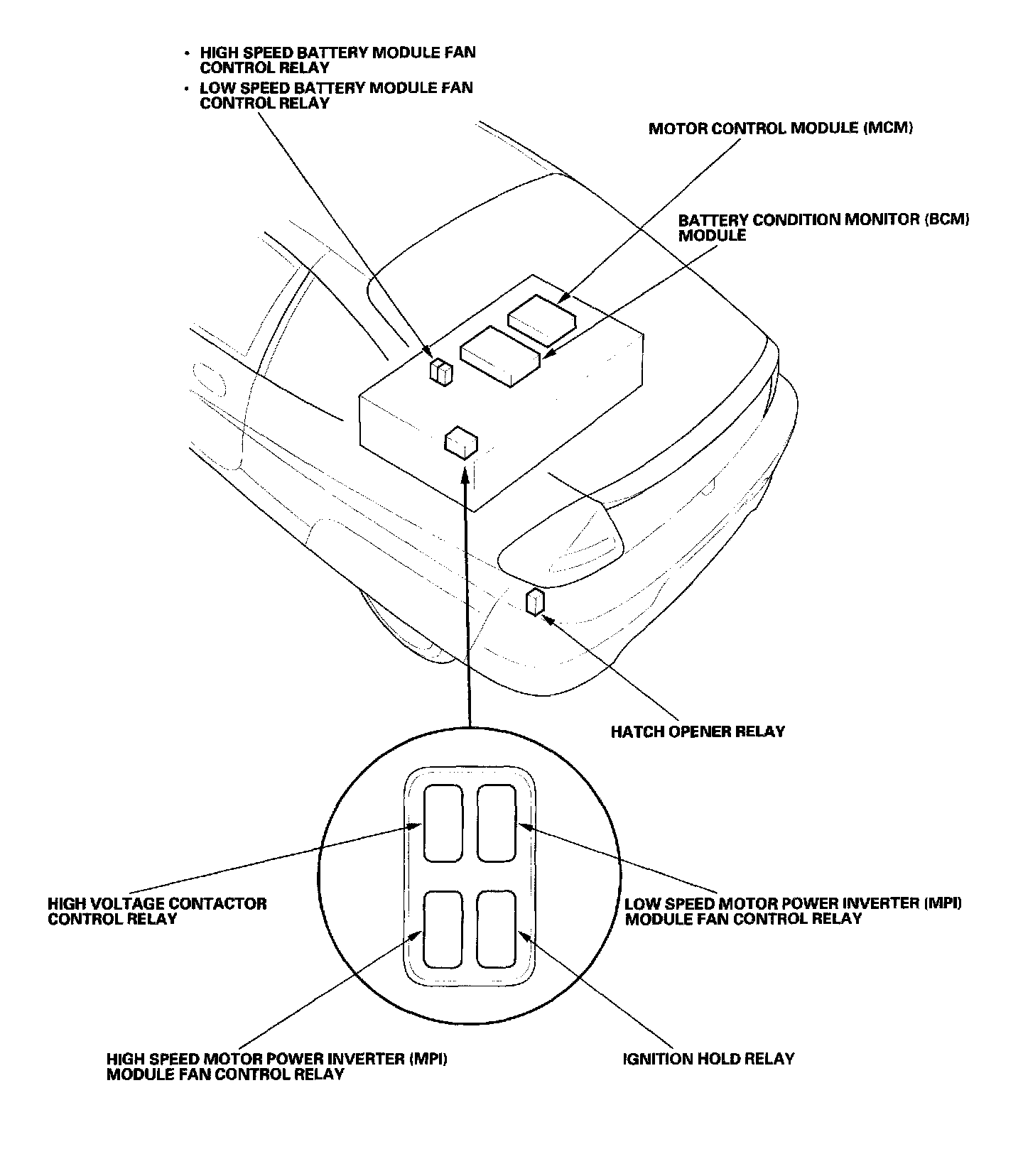

Relay And Control Unit Locations - Floor And Rear:
