Standards and Service Limits

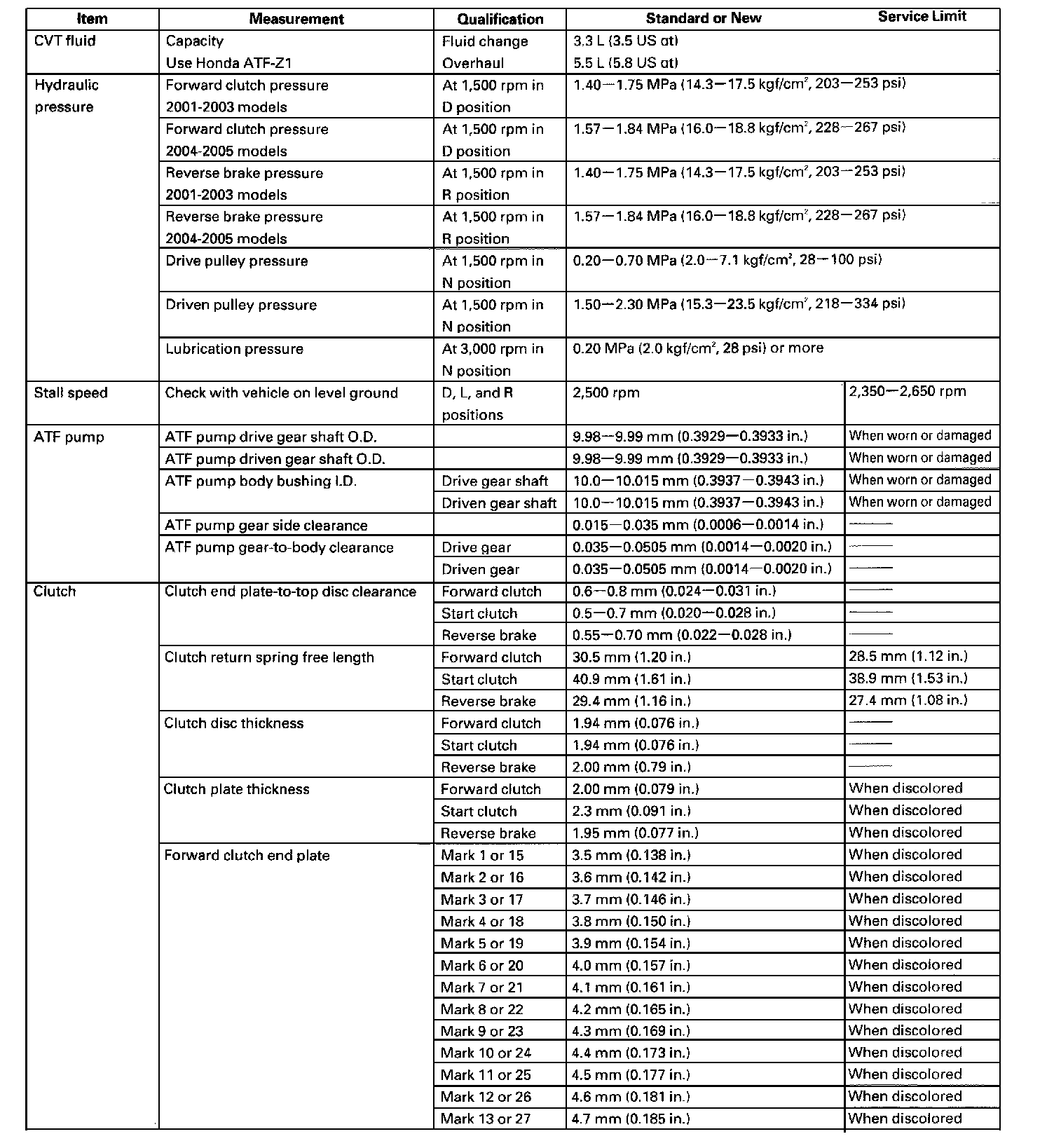

CVT and CVT Differential - Part 1:

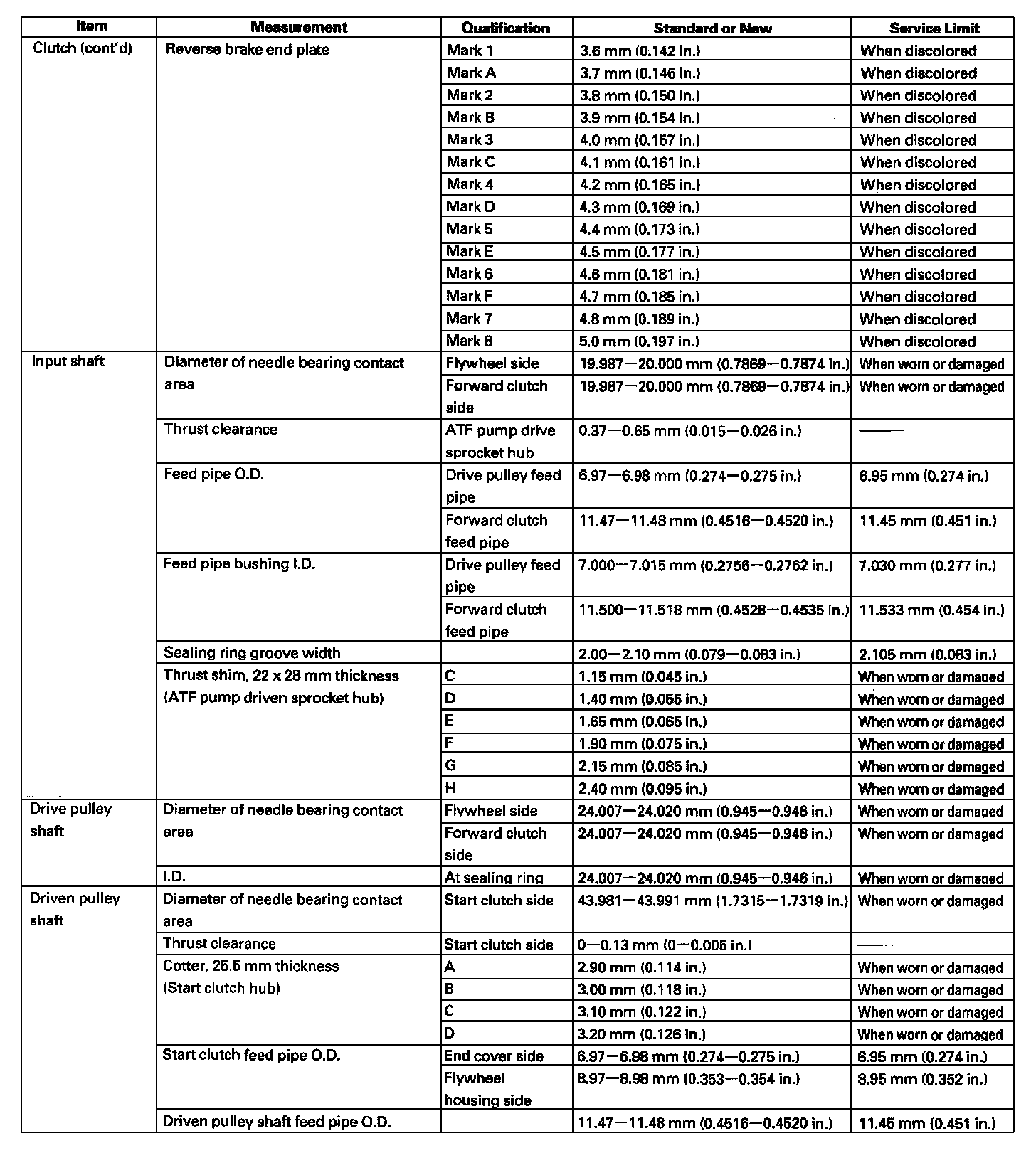

CVT and CVT Differential - Part 2:

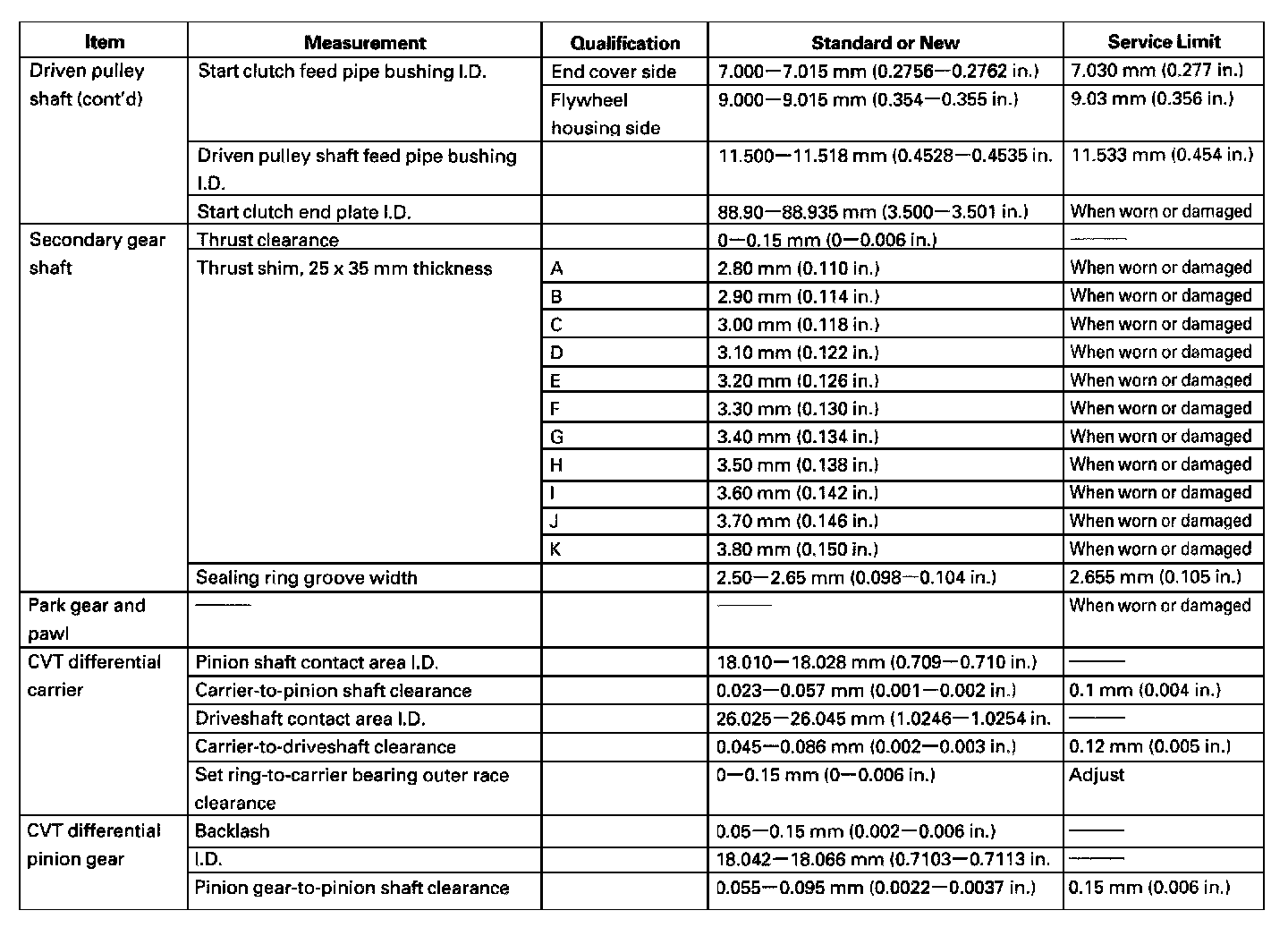

CVT and CVT Differential - Part 3:
