Shift Interlock: Locations

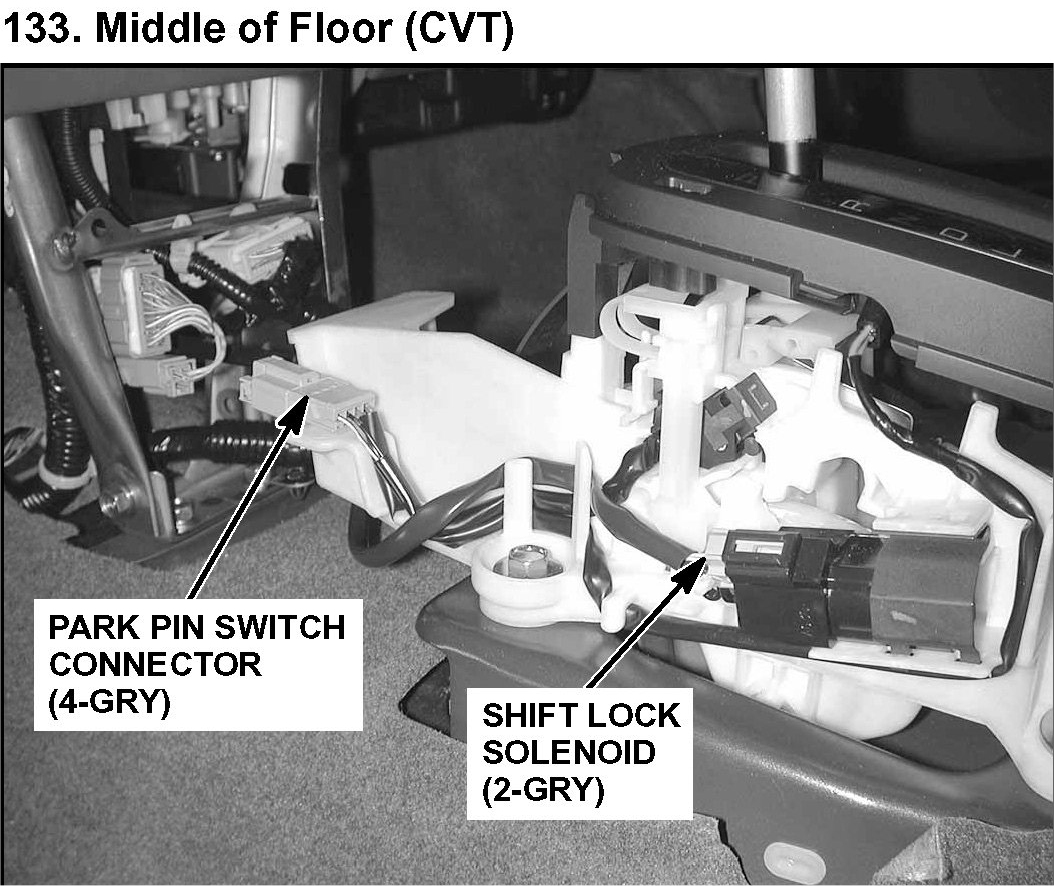

133. Middle of Floor (CVT):

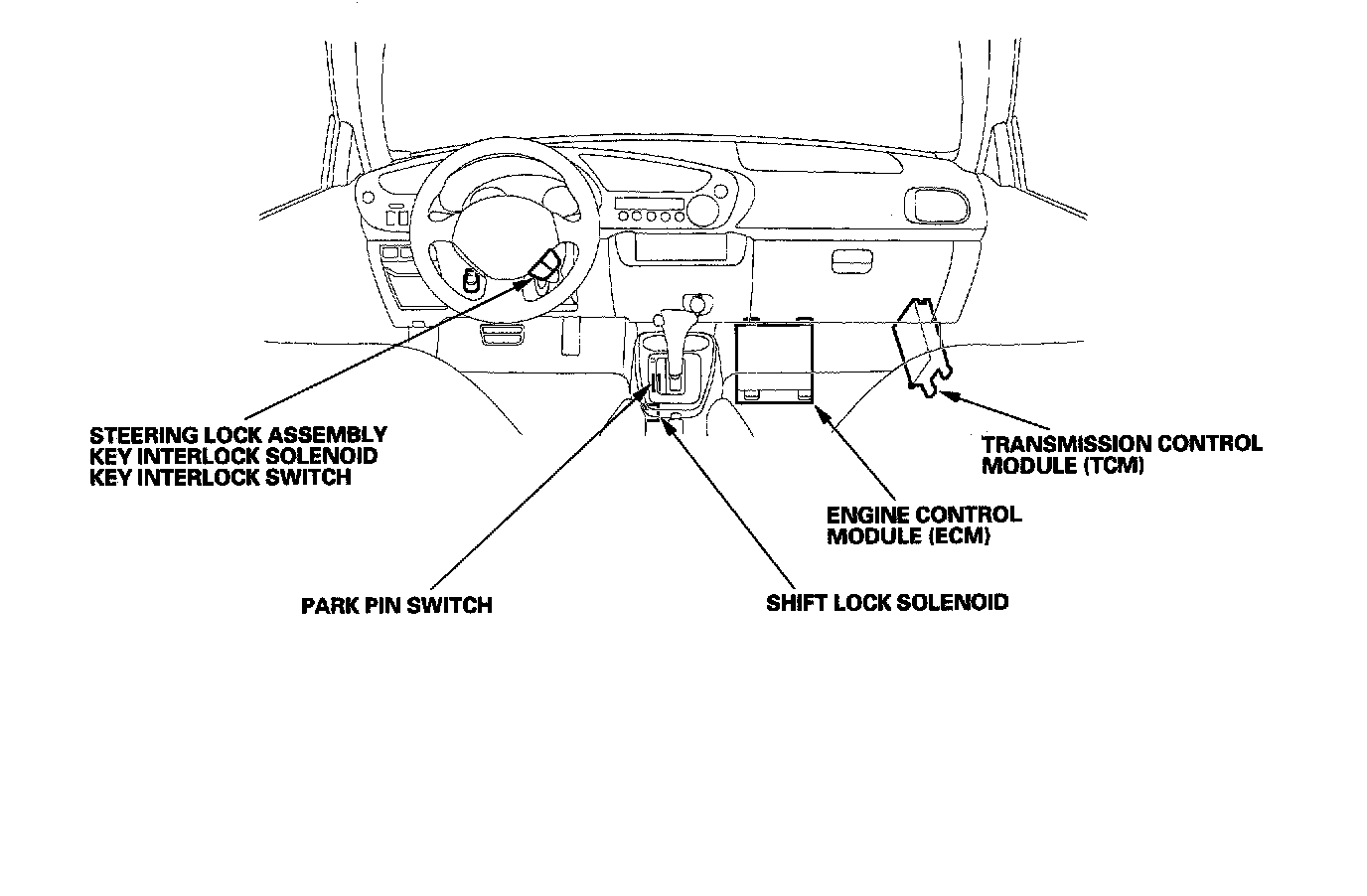

A/T Interlock System - Component Location Index:
