Home
>>
Honda
>>
2005
>>
S2000 L4-2.2L
>>
Repair and Diagnosis
>>
Locations
>>
Ground Locations
>>
G3
G3

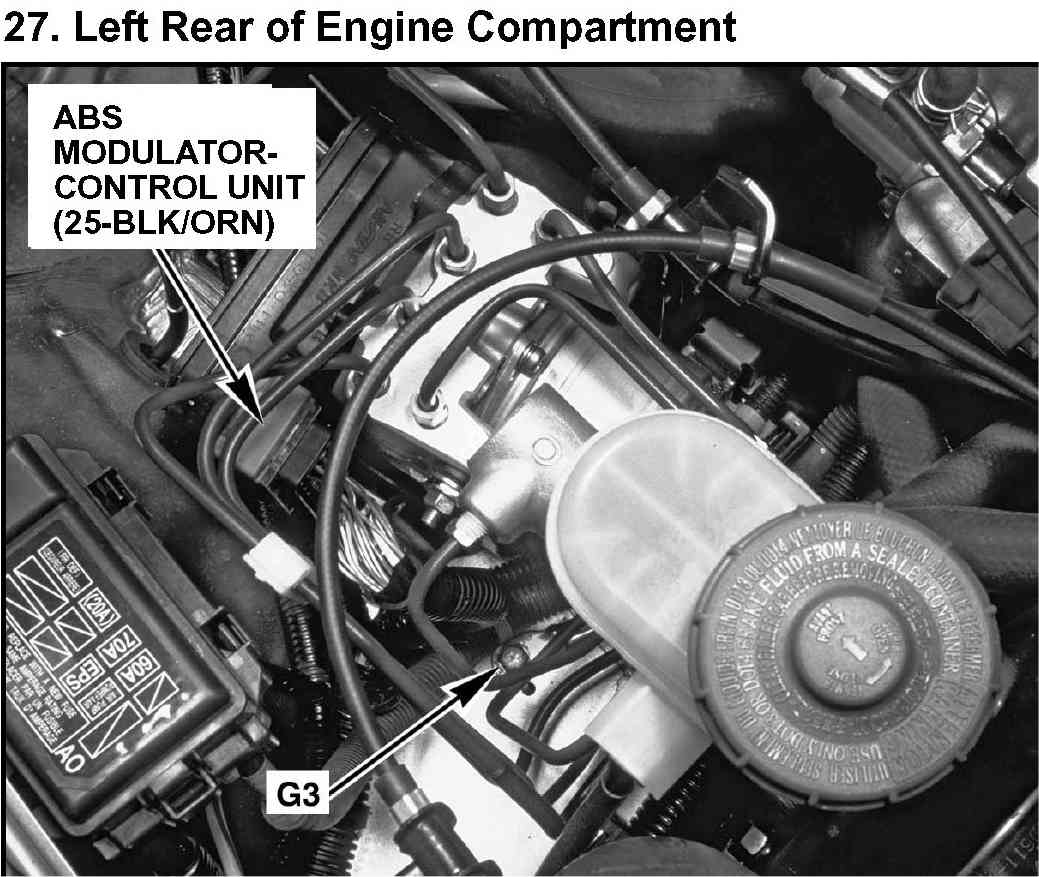

27. Left Rear of Engine Compartment:

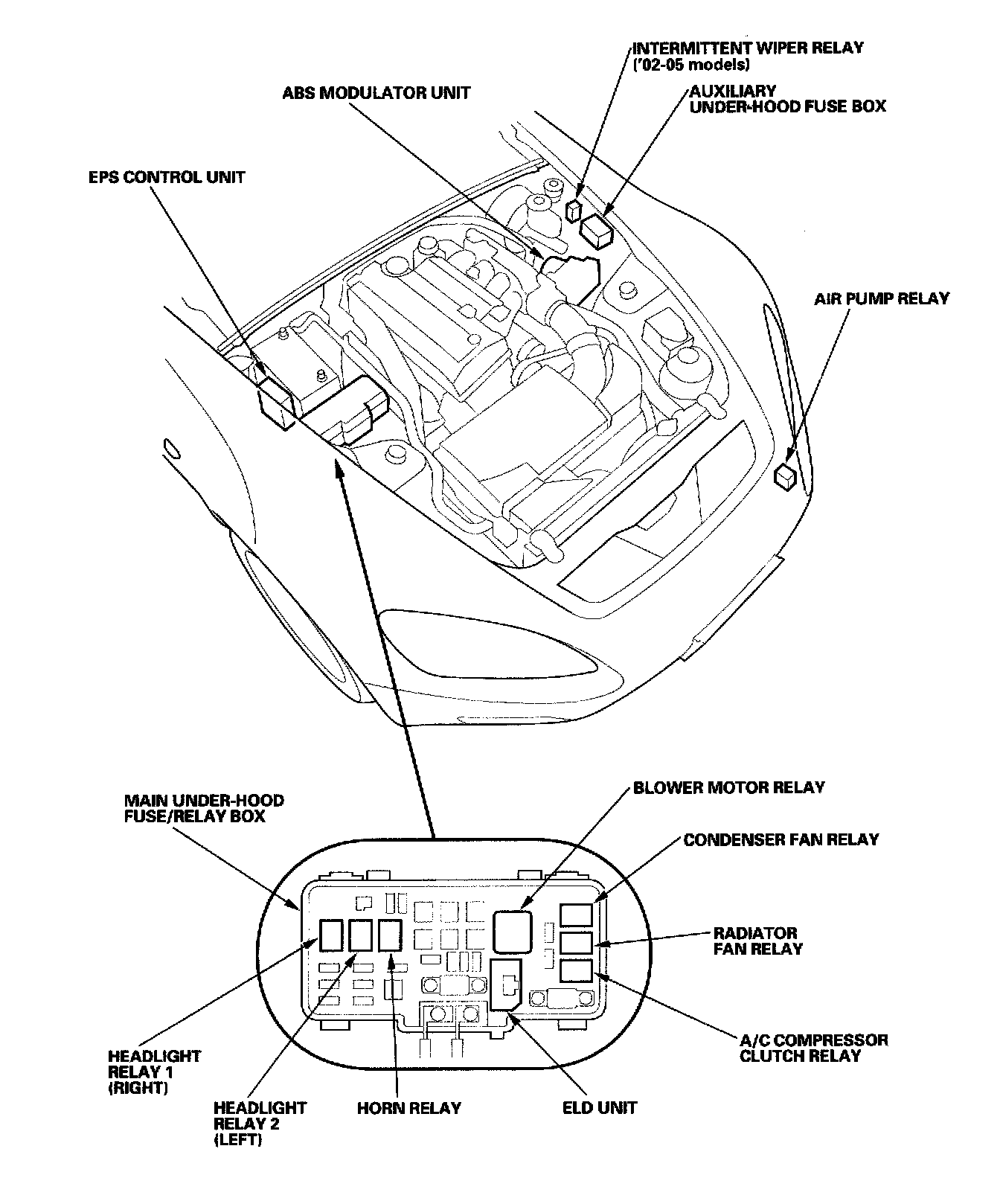

Relay And Control Unit Locations - Engine Compartment:
