Wheel Speed Sensor
>>
Locations
>>
Connector Locations
Connector Locations

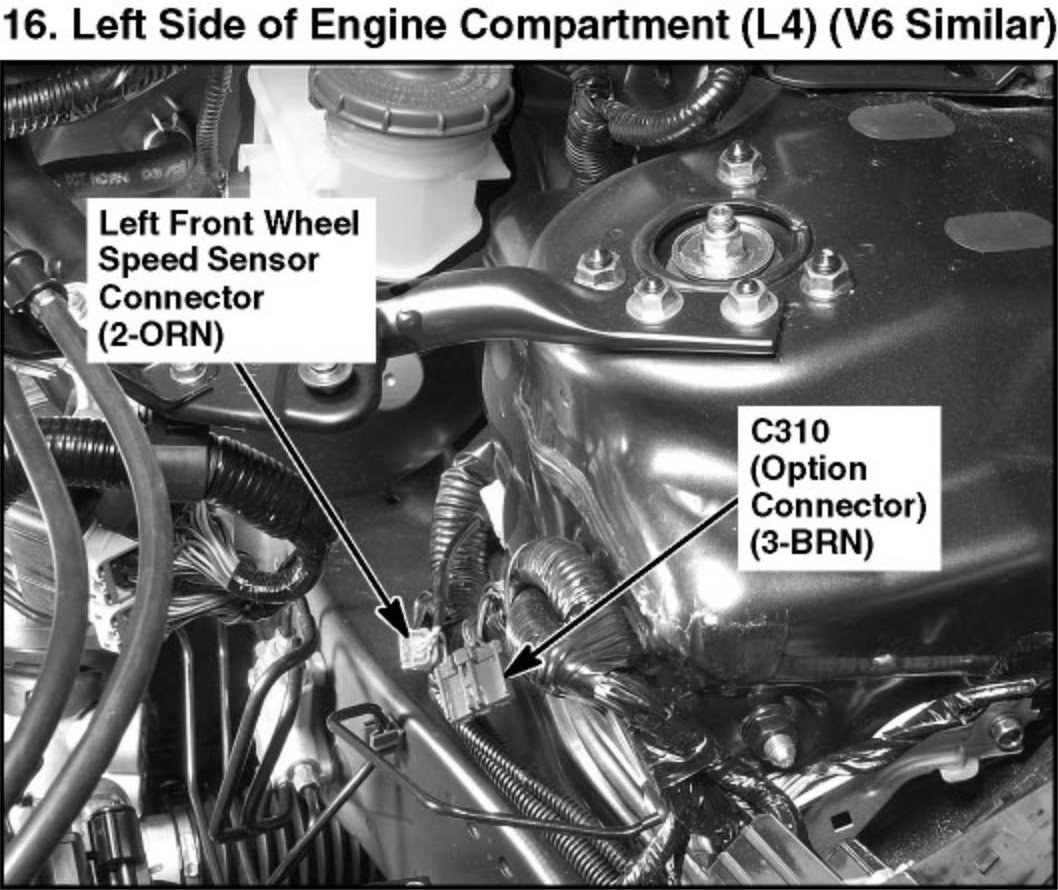

16. Left Side of Engine Compartment (L4) (V6 Similar):
37. Right Side of Engine Compartment (L4):

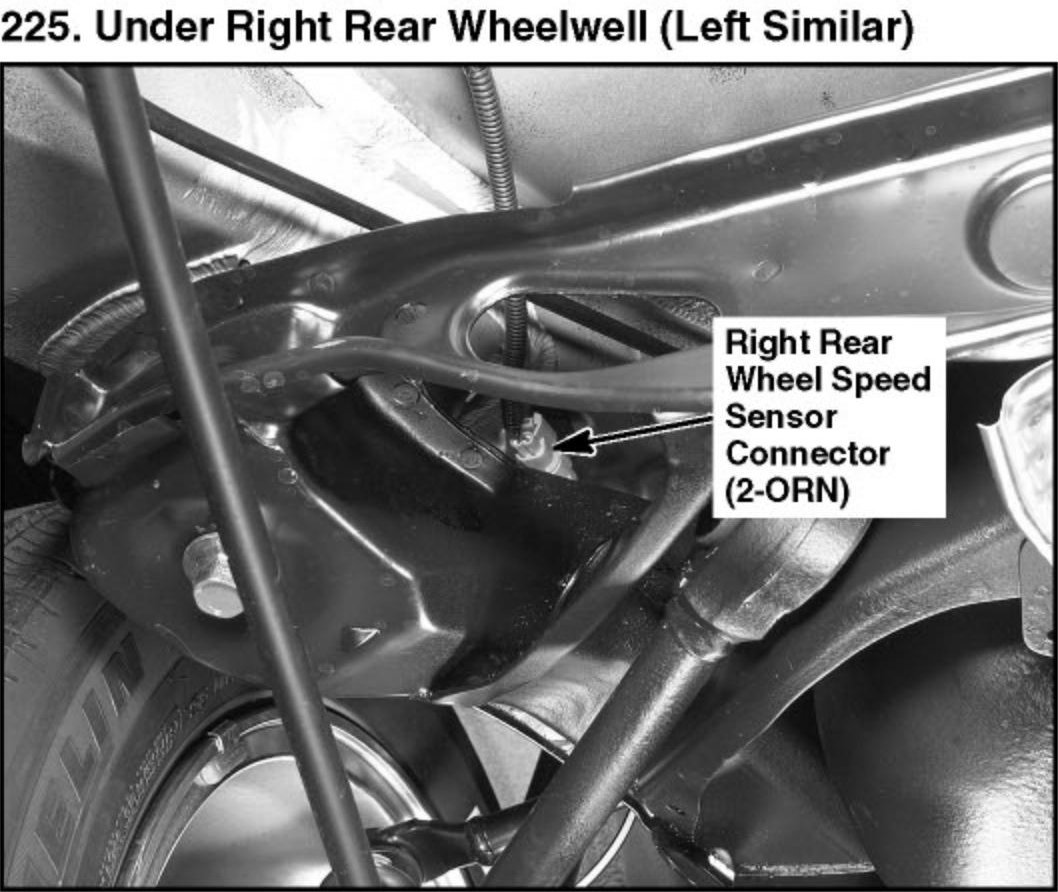

225. Under Right Rear Wheelwell (Left Similar):
