Evaporator Temperature Sensor / Switch: Locations

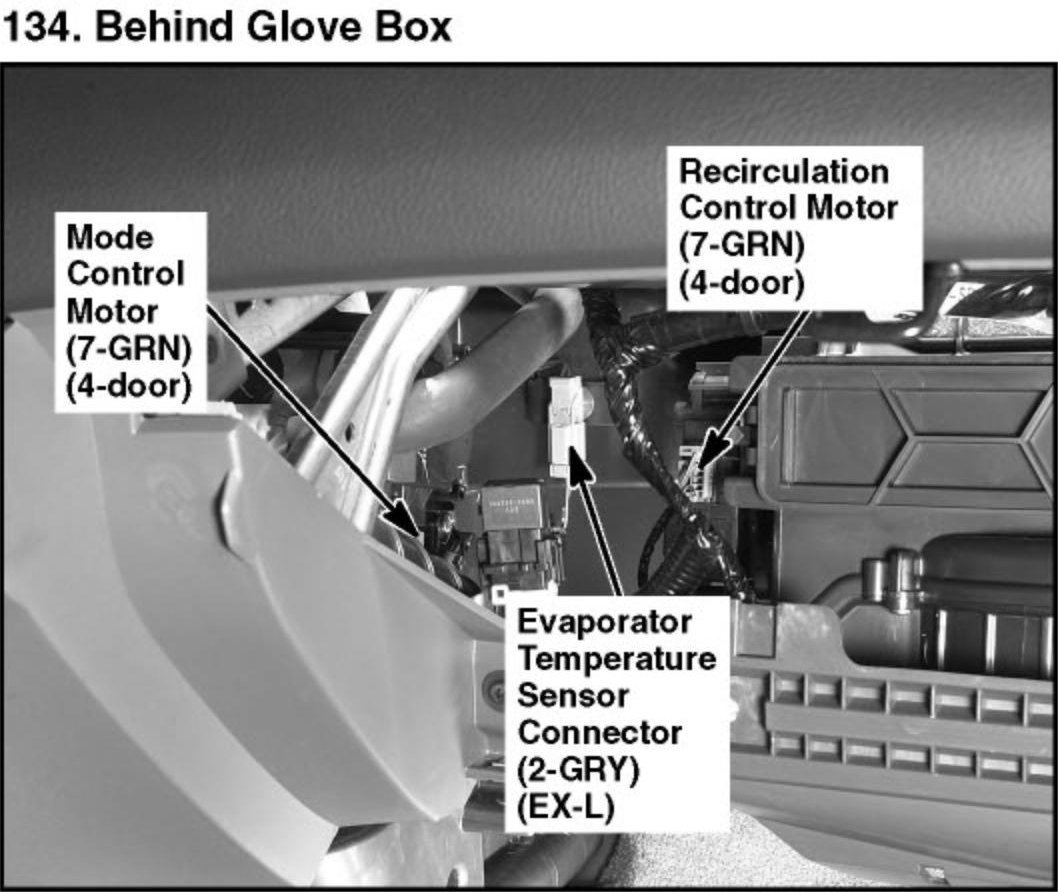

134. Behind Glove Box:

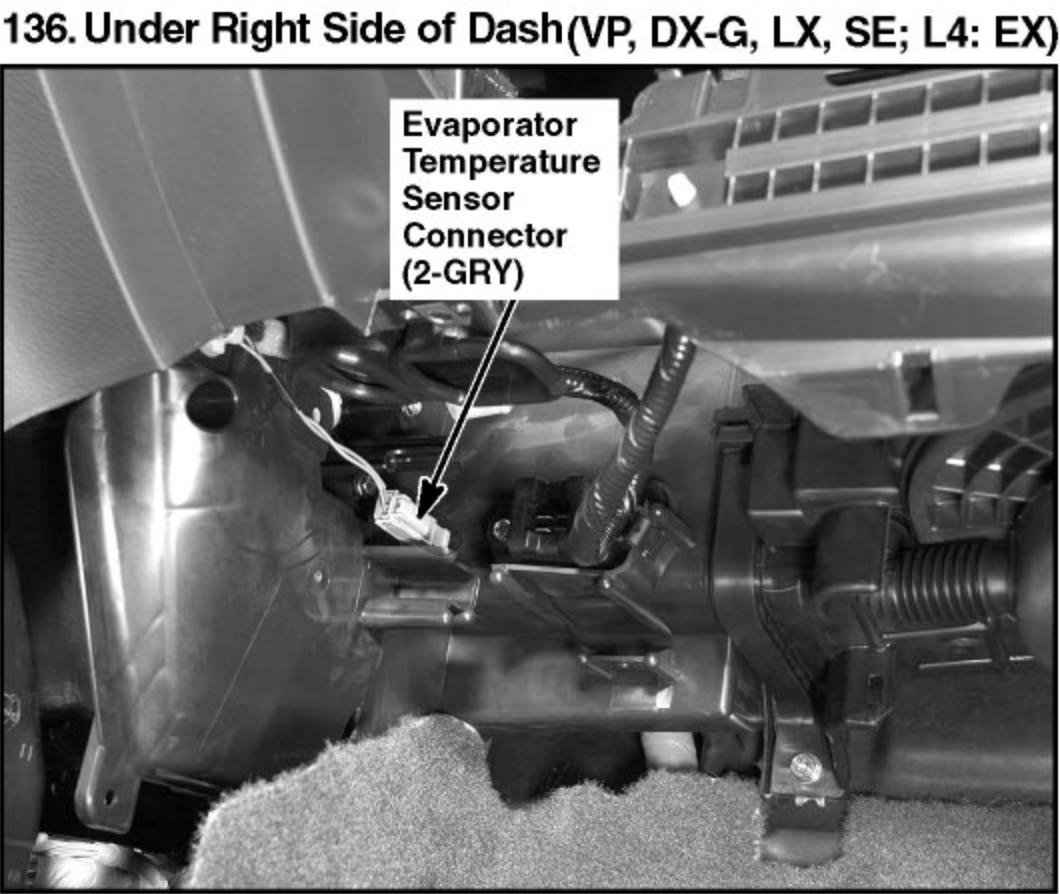

136. Under Right Side of Dash (VP, DX-G, LX, SE; L4: EX):
