Home >> Honda >> 2006 >> Accord V6-3.0L Hybrid >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 76-100 >> 94

View 76-100: 94

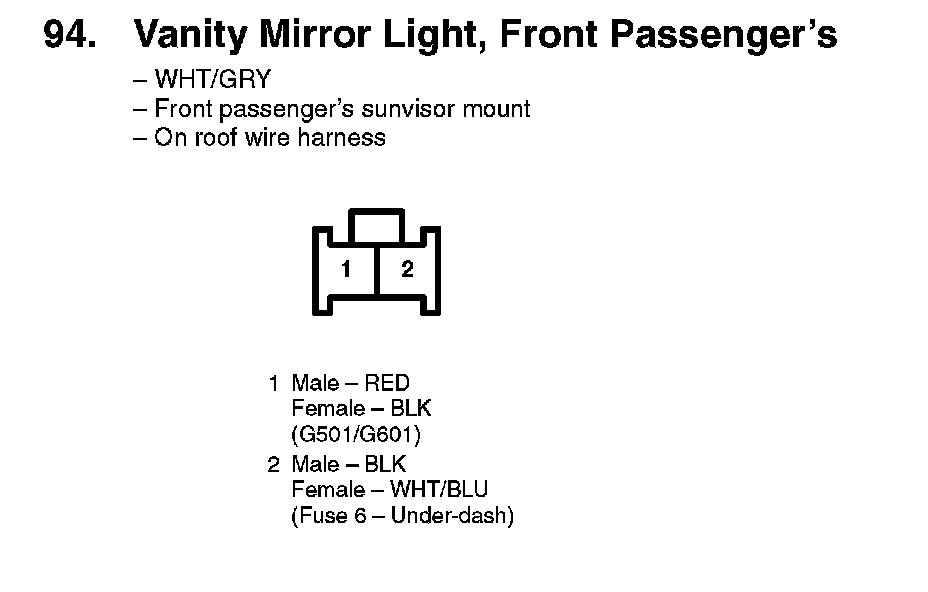

94. Vanity Mirror Light, Front Passenger's:
