Standards and Service Limits

Automatic Transmission and A/T Differential

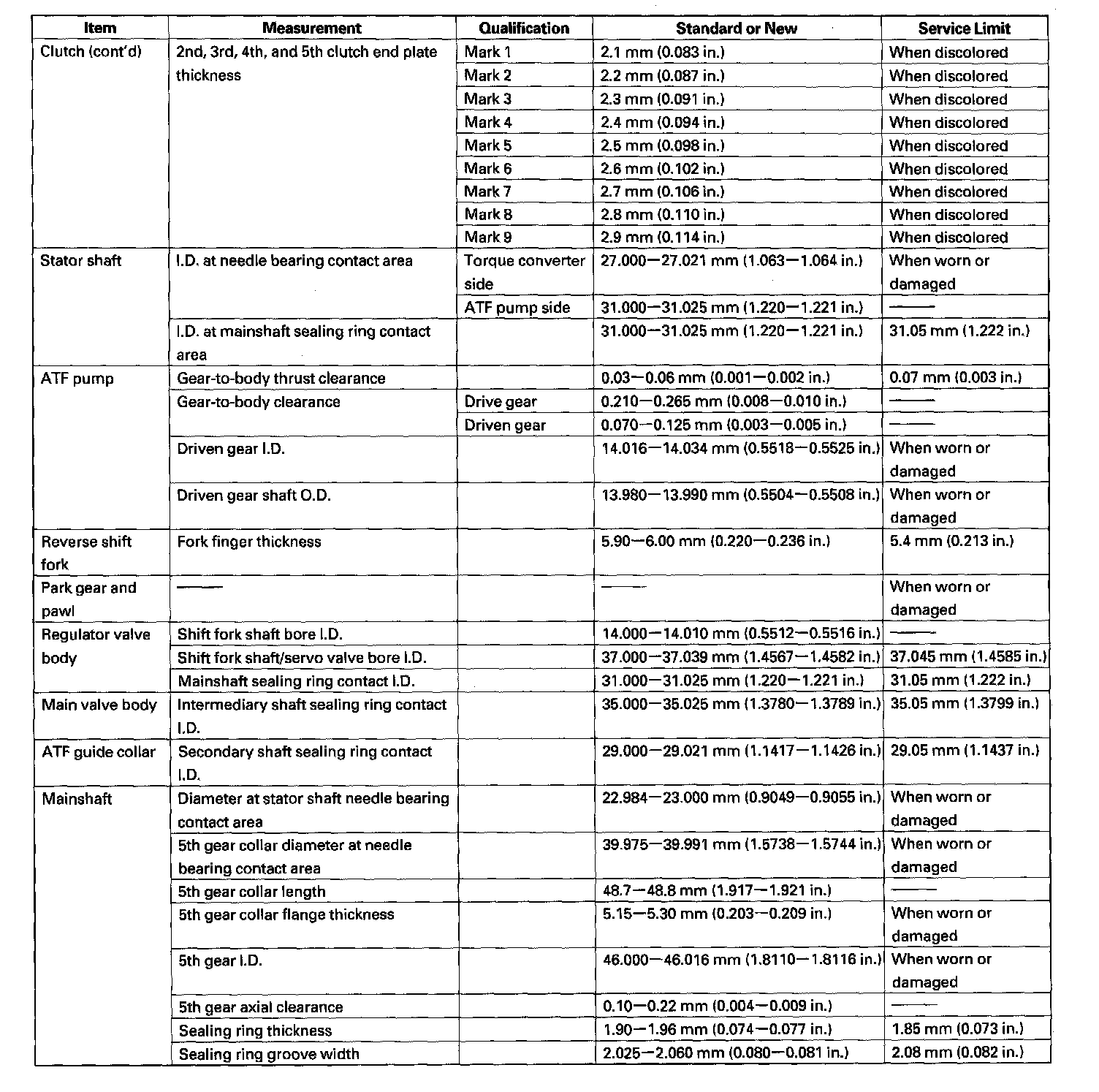

A/T Transmission And Differential - Standards And Service Limits Part 1:

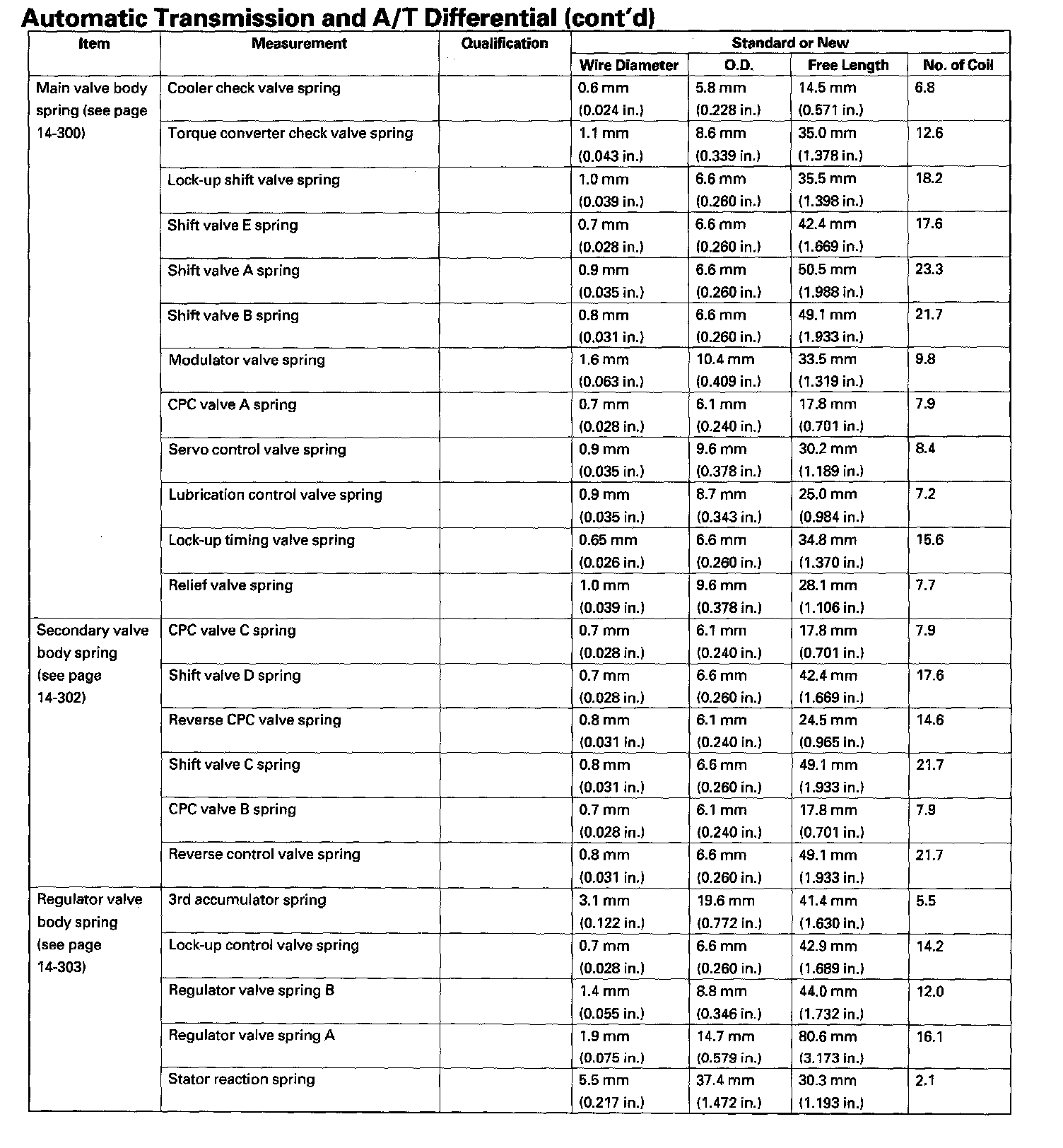

A/T Transmission And Differential - Standards And Service Limits Part 2:

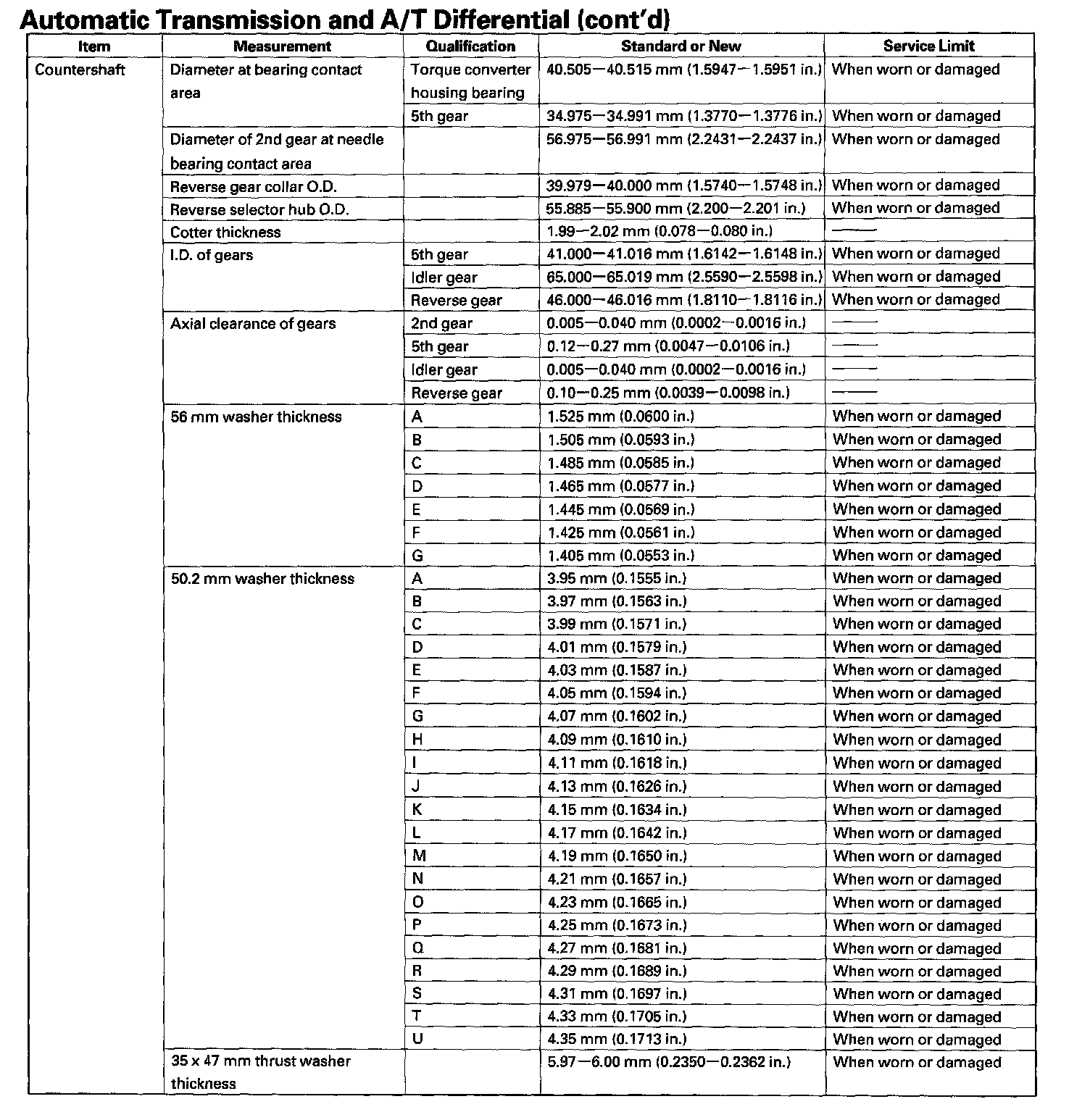

A/T Transmission And Differential - Standards And Service Limits Part 3:

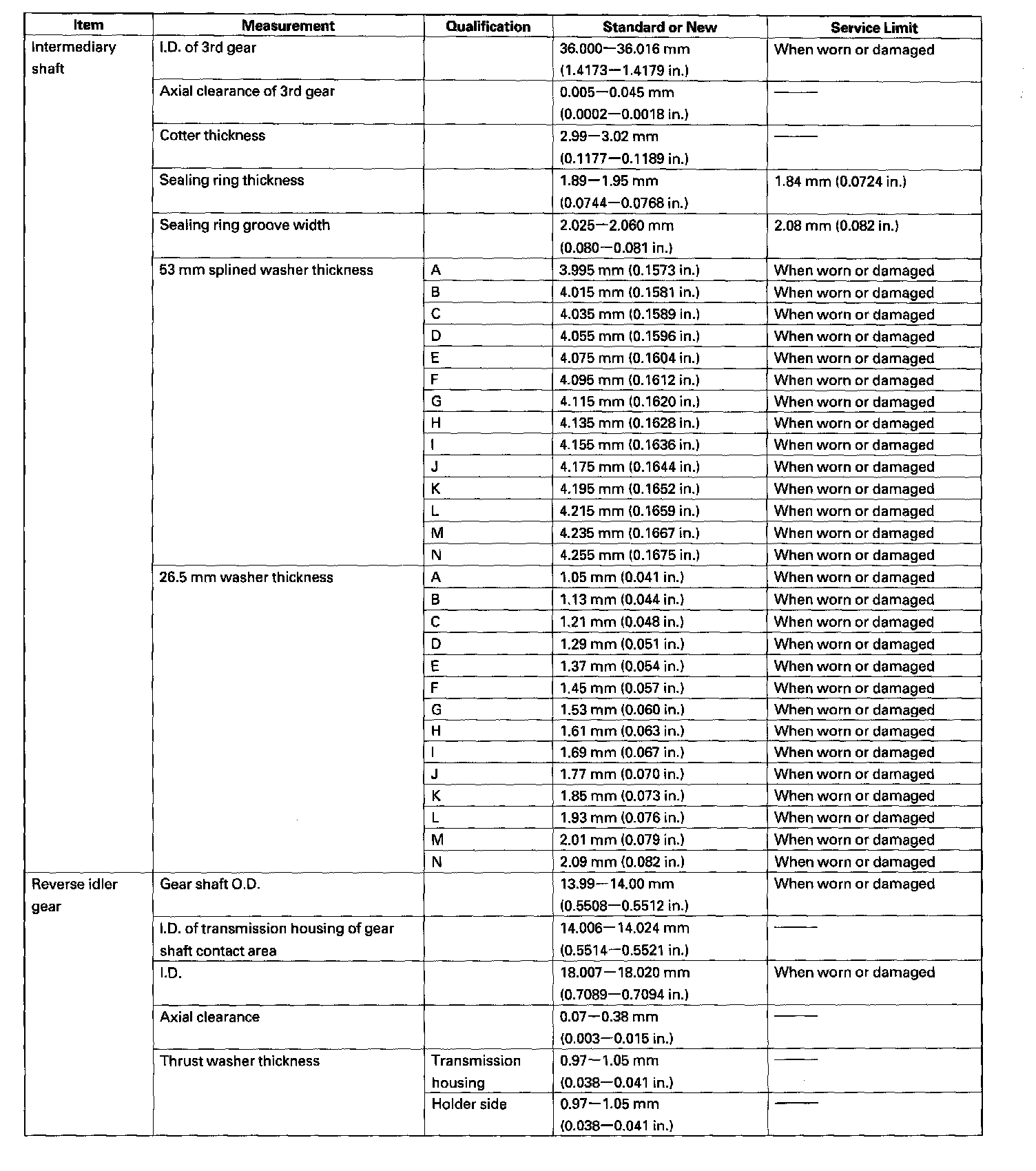

A/T Transmission And Differential - Standards And Service Limits Part 4:

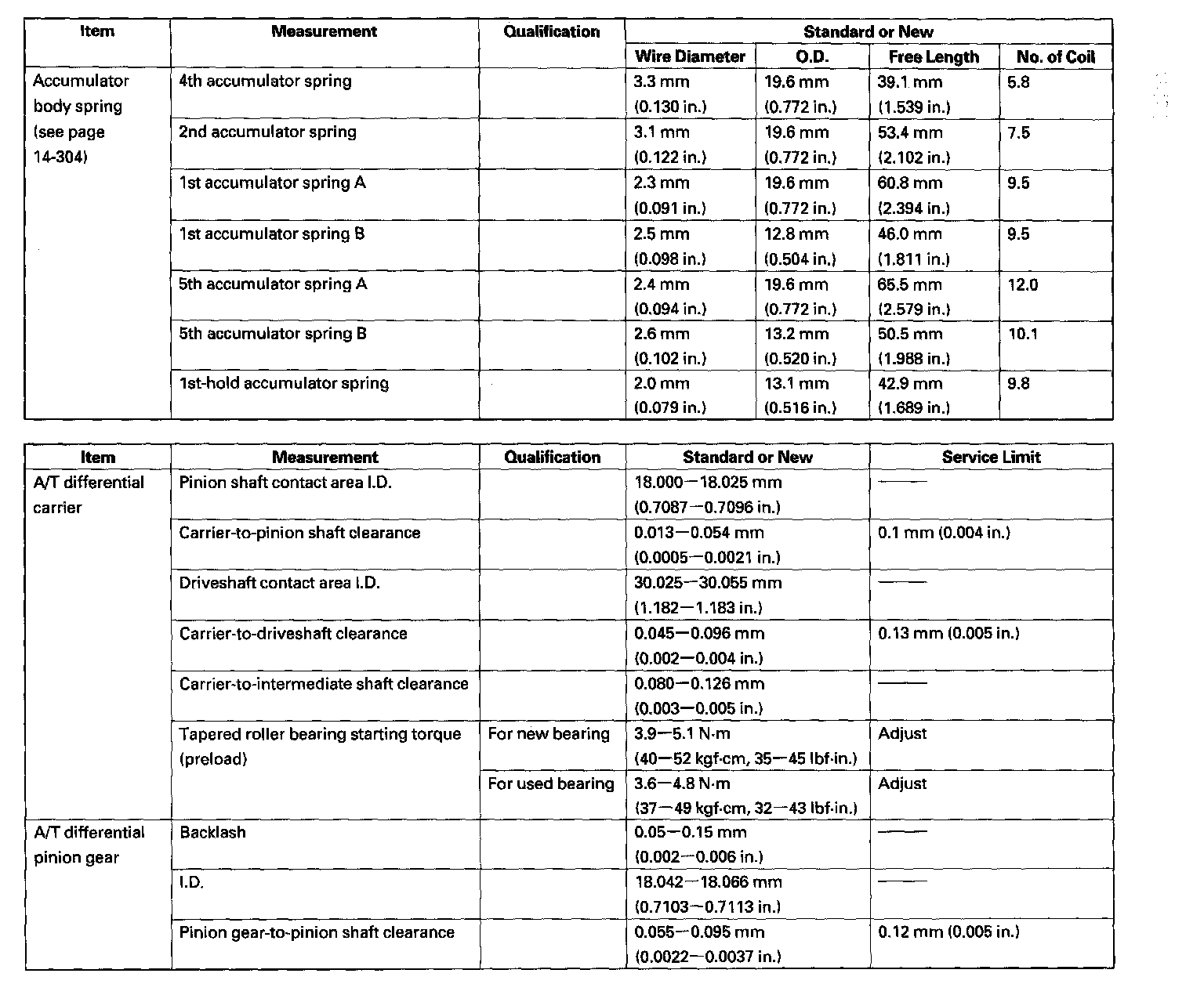

A/T Transmission And Differential - Standards And Service Limits Part 5:

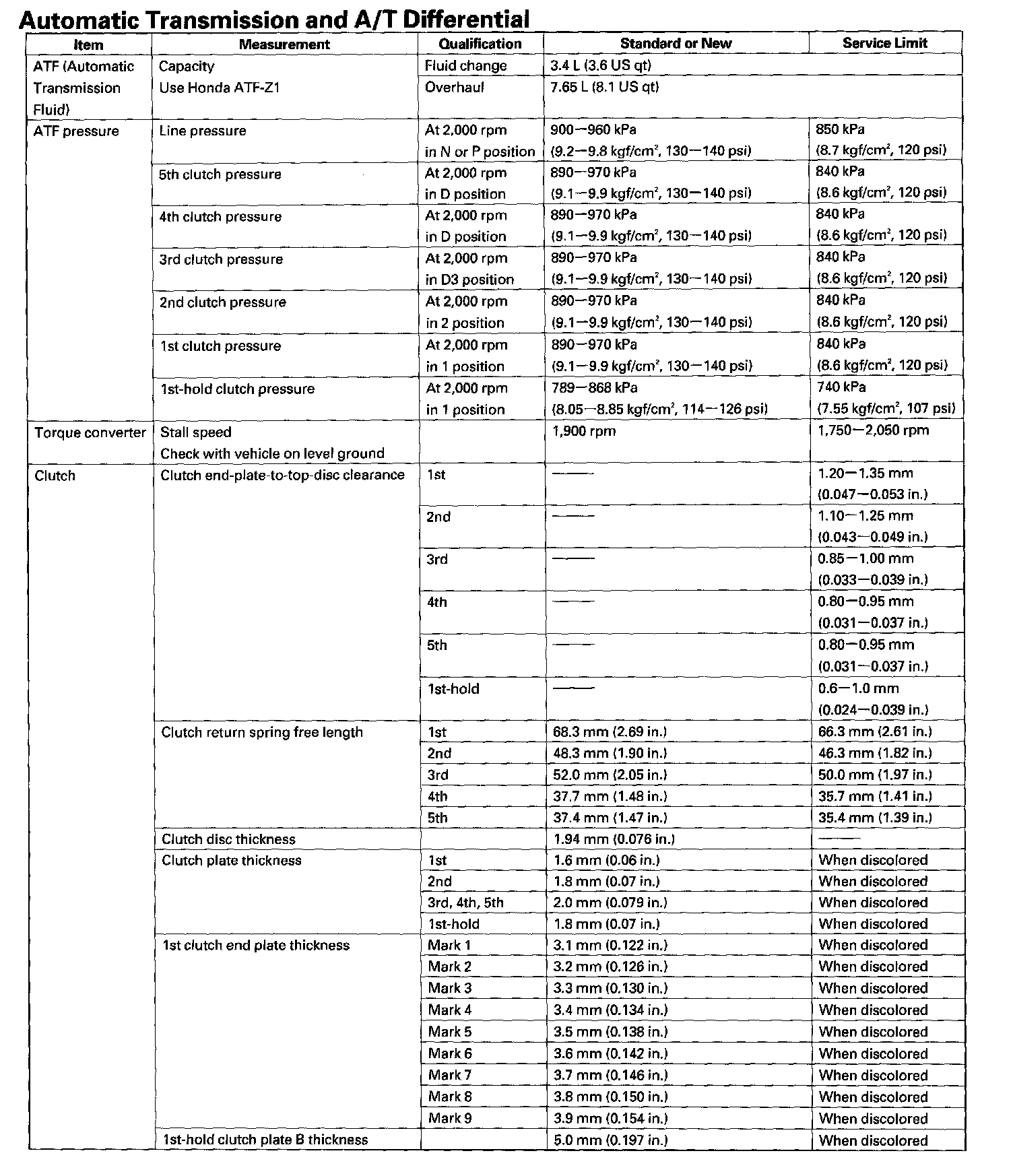

A/T Transmission And Differential - Standards And Service Limits Part 6:

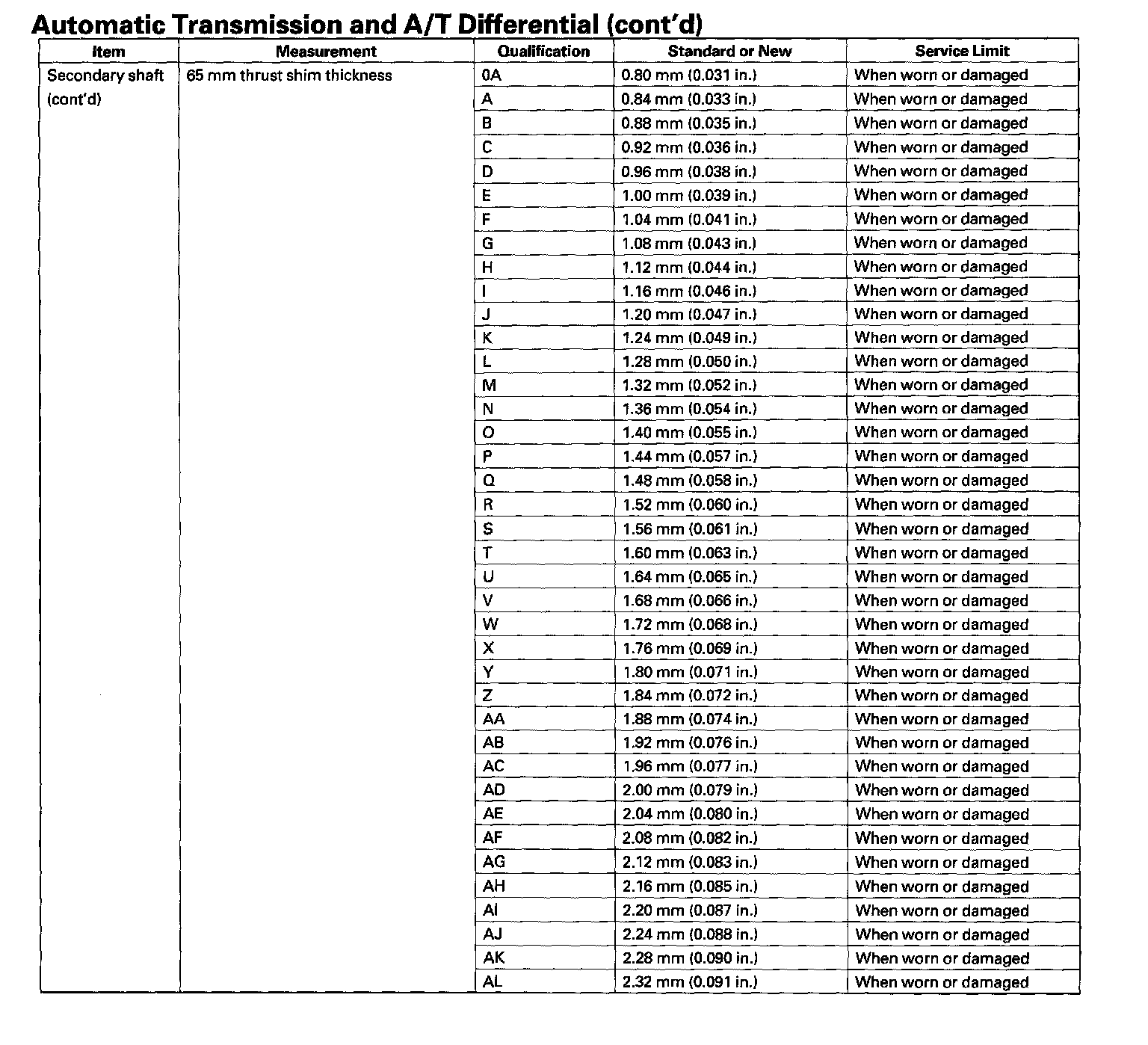

A/T Transmission And Differential - Standards And Service Limits Part 7:

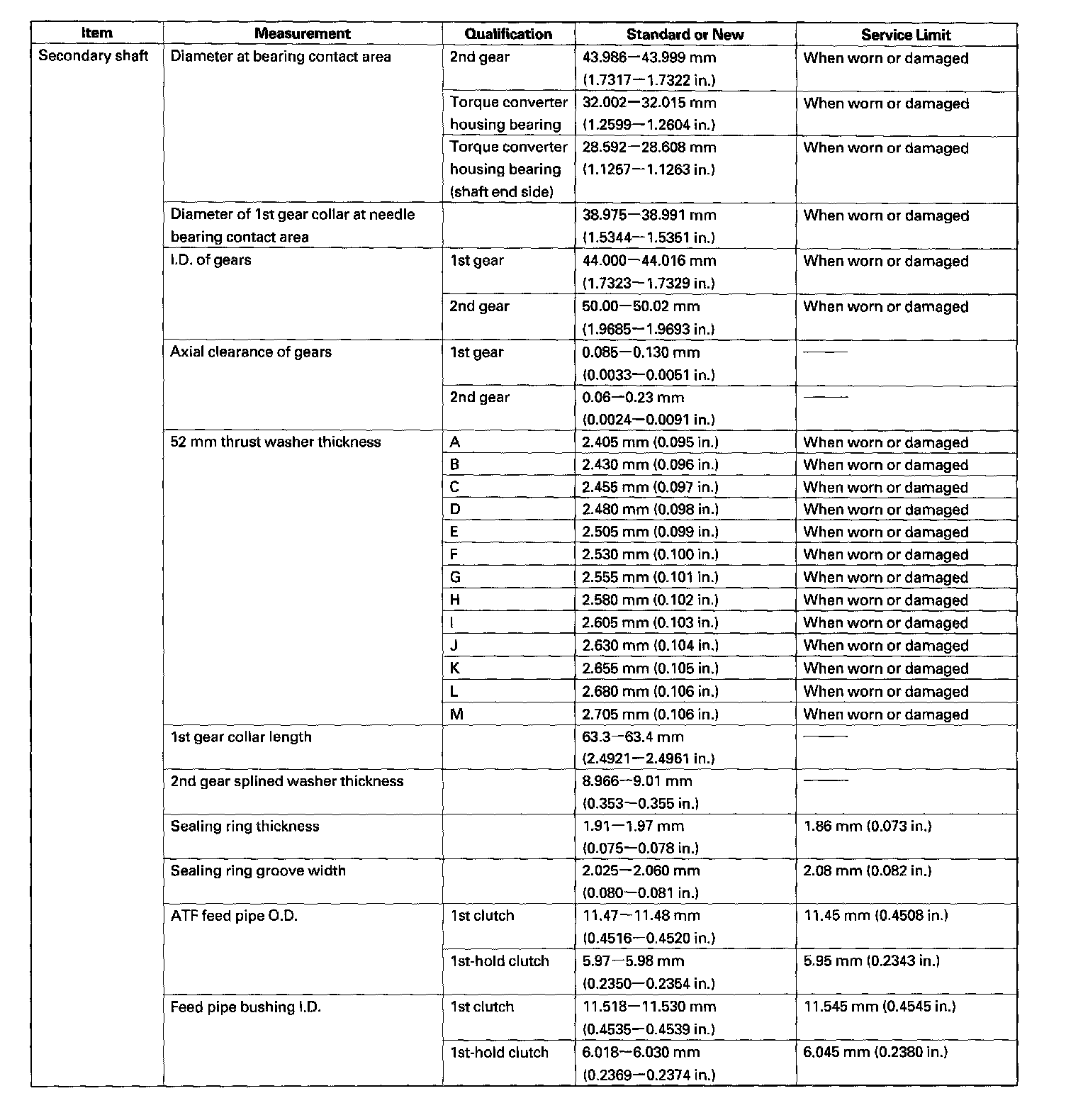

A/T Transmission And Differential - Standards And Service Limits Part 8:
