Power Source For ECM/PCM (DX, DX-G, LX, EX)
Power Source For ECM/PCM (DX, DX-G, LX, EX)

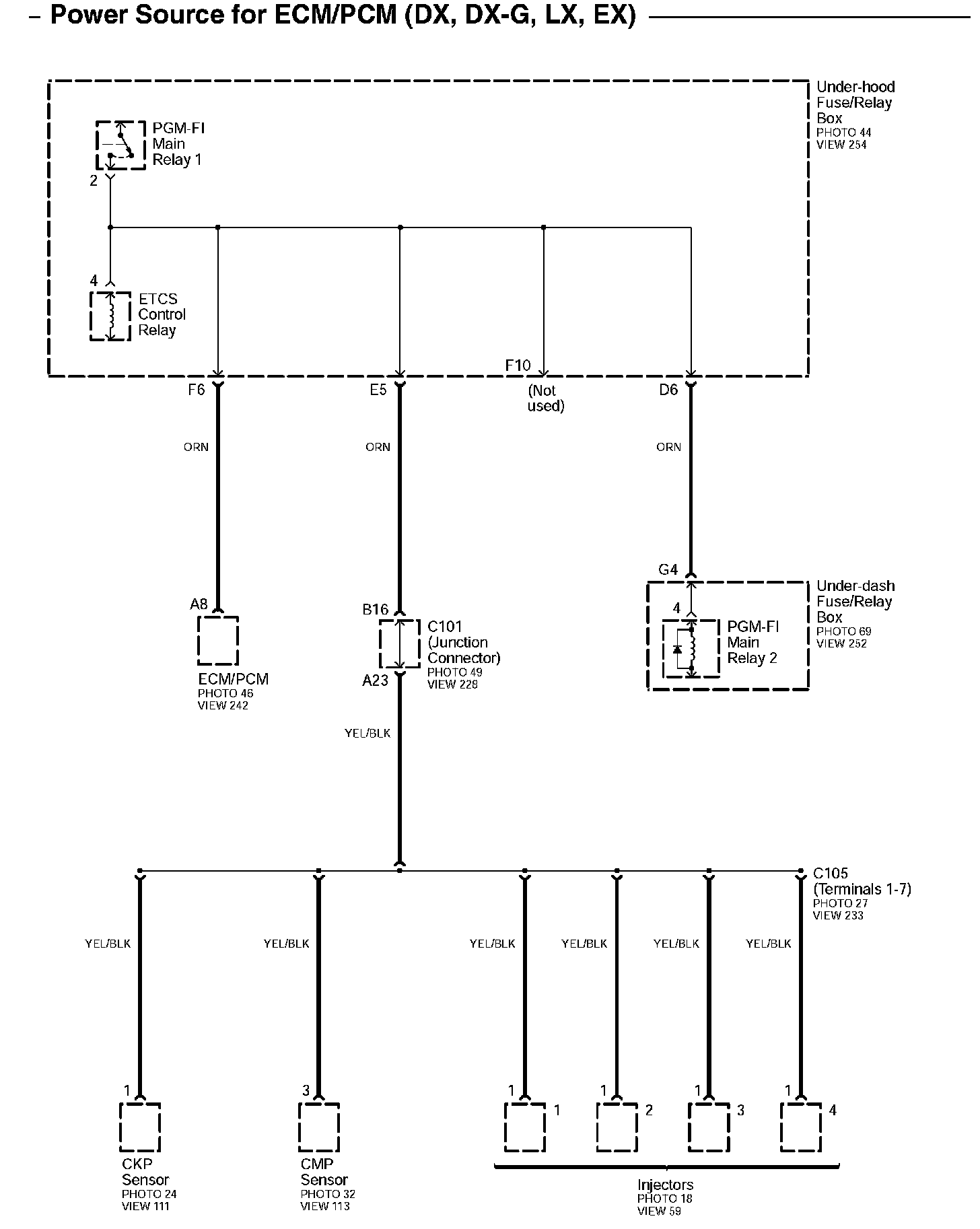

Power Source for ECM/PCM (DX, DX-G, LX, EX):
