Locations
>>
Harness Locations
>>
Antenna Amplifier Sub-harness
Antenna Amplifier Sub-harness

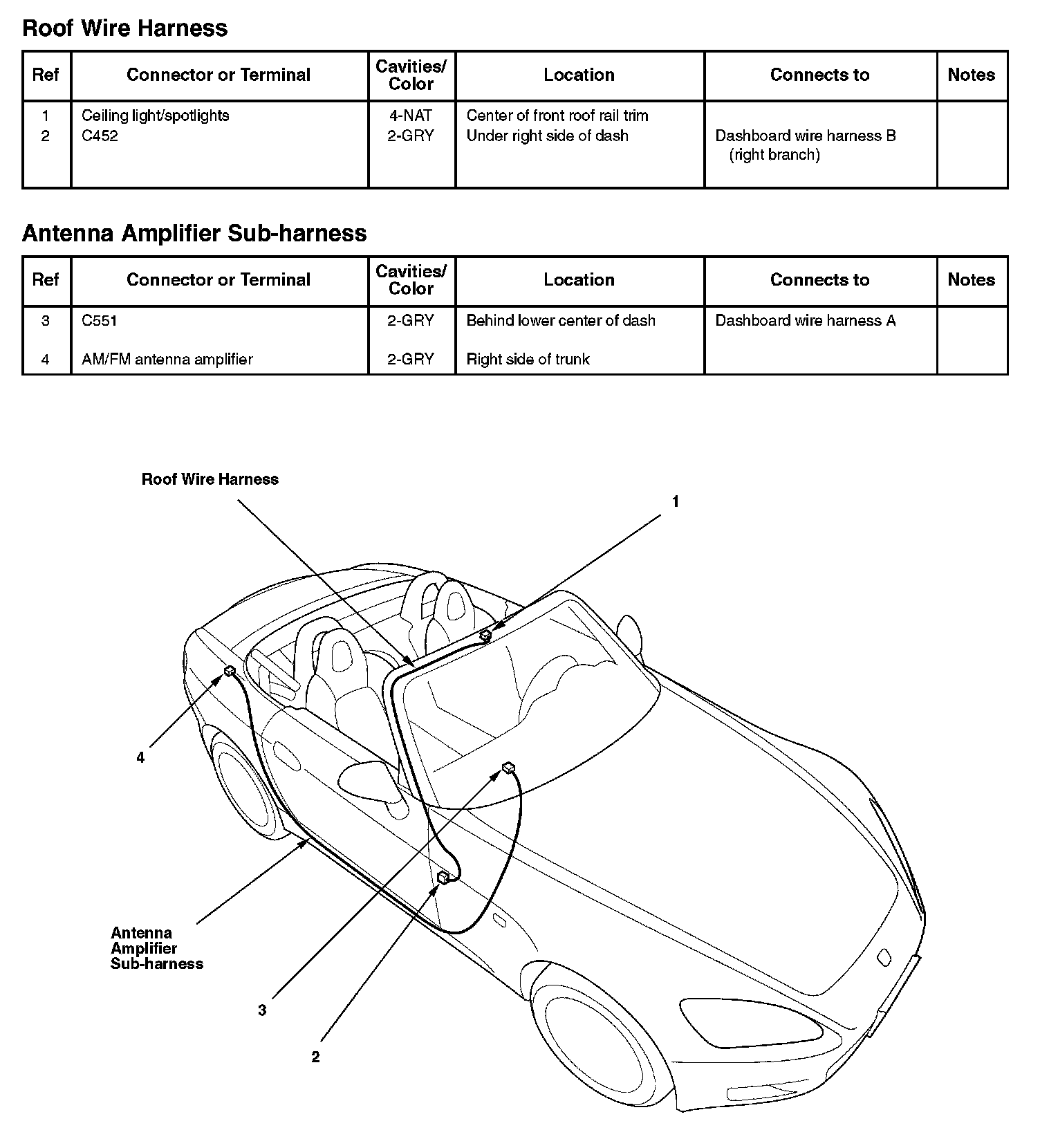

Roof Wire Harness/Antenna Amplifier Sub-harness:
Rear Wire Harness (Right Branch)/Roof Wire Harness/Antenna Amplifier Subharness:
