Home >> Honda >> 2007 >> Accord L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 276-298 >> 280

View 276-298: 280

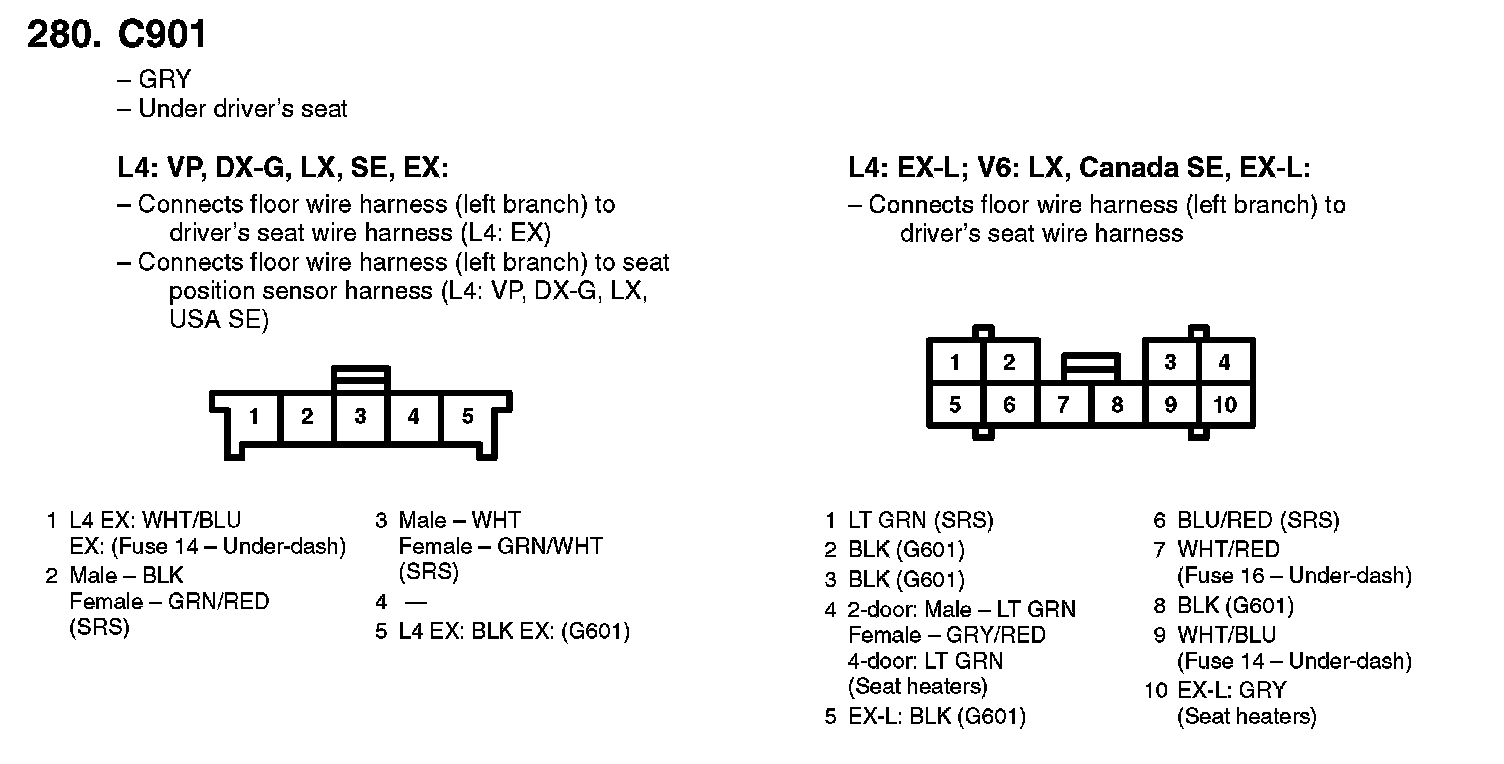

280. C901:
