Condenser HVAC: Service and Repair
A/C Condenser Replacement1. Make sure you have the anti-theft codes for the radio and the navigation system, then write down the customer's audio presets.
2. Recover the refrigerant with a recovery/recycling.
3. Remove the front grille cover.
4. Remove the battery and the battery box.

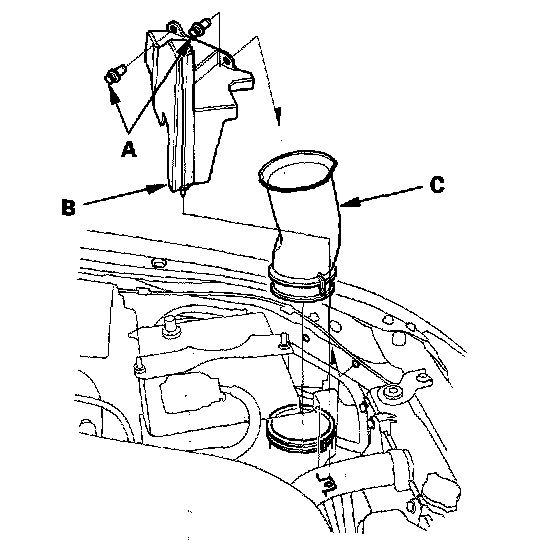

5. Remove the clips (A), then remove the air intake cover (B) and the air intake tube or duct (C).

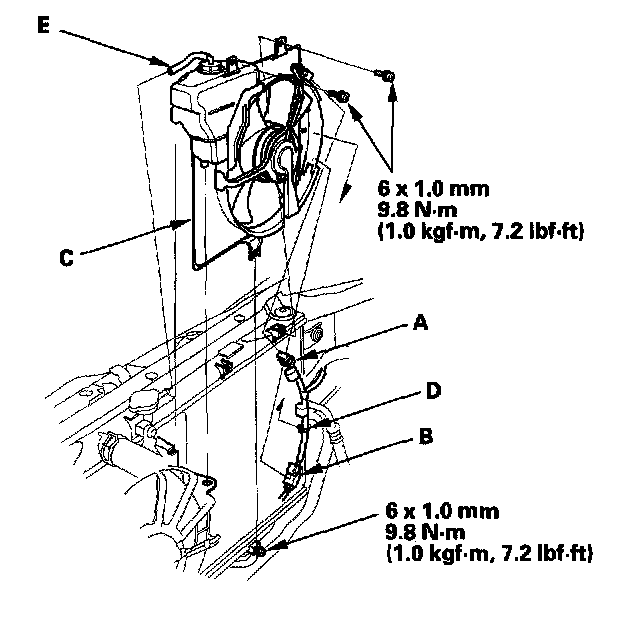

6. Disconnect the connector (A) from the A/C condenser. Remove the A/C compressor clutch connector (B) from the A/C condenser shroud (C), then remove the wire harness clip (D). Remove the hose (E) from the radiator. Loosen the lower mounting bolt, then remove the upper mounting bolts and the radiator fan shroud. Be careful not to damage the radiator fins when removing the A/C condenser fan shroud.

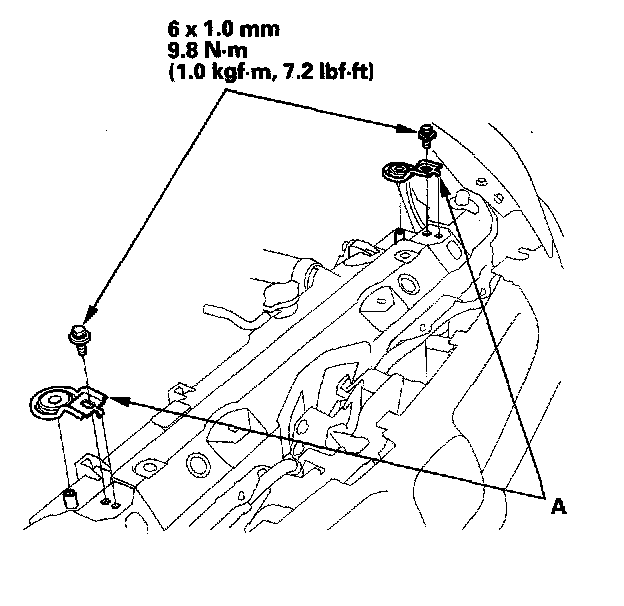

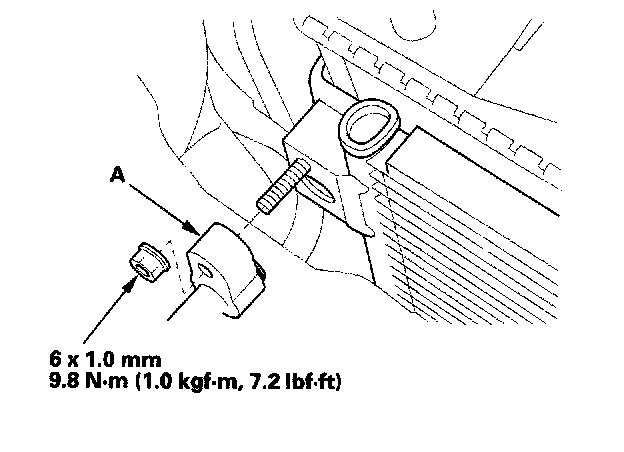

7. Remove the bolts and the radiator upper mount brackets (A).

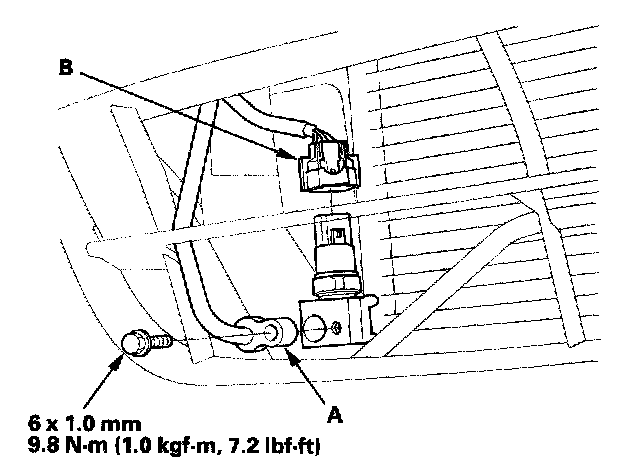

8. Remove the bolt, then disconnect the receiver line (A) from the A/C condenser. Disconnect the A/C pressure switch connector (B).
9. Remove the bolts from the A/C condenser.
10. Remove the nut, then disconnect the discharge line (A) from the A/C condenser.

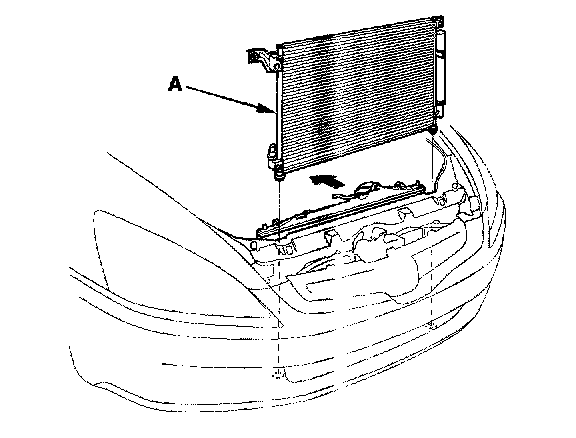

11. Remove the A/C condenser (A) by lifting it up. Be careful not to damage the radiator and A/C condenser fins when removing the A/C condenser.
12. Install the A/C condenser in the reverse order of removal, and note these items:
- If you're installing a new A/C condenser, add refrigerant oil (SANDEN SE-10Y). Using the wrong refrigerant oil can be a safety hazard.
- Replace the O-rings with new ones at each fitting, and apply a thin coat of refrigerant oil before installing them. Be sure to use the correct O-rings for HFC-134a (R-134a) to avoid leakage.
- Immediately after using the oil, dispose of any remaining oil in the container, due to moisture absorption and short shelf life.
- Do not spill the refrigerant oil on the vehicle; it may damage the paint; if the refrigerant oil contacts the paint, wash it off immediately.
- Be careful not to damage the radiator or the A/C condenser fins when installing the A/C condenser.
- Charge the system.
- Reset the power window control unit.
- Enter the anti-theft codes for the radio and the navigation system, then enter the customer's audio presets.
- If the IMA battery level gauge (BAT) displays no segments, start the engine, and hold it between 3,500 rpm and 4,000 rpm without load (in Park or neutral) until the BAT displays at least three segments.
