Drive Motor Current Sensor: Locations

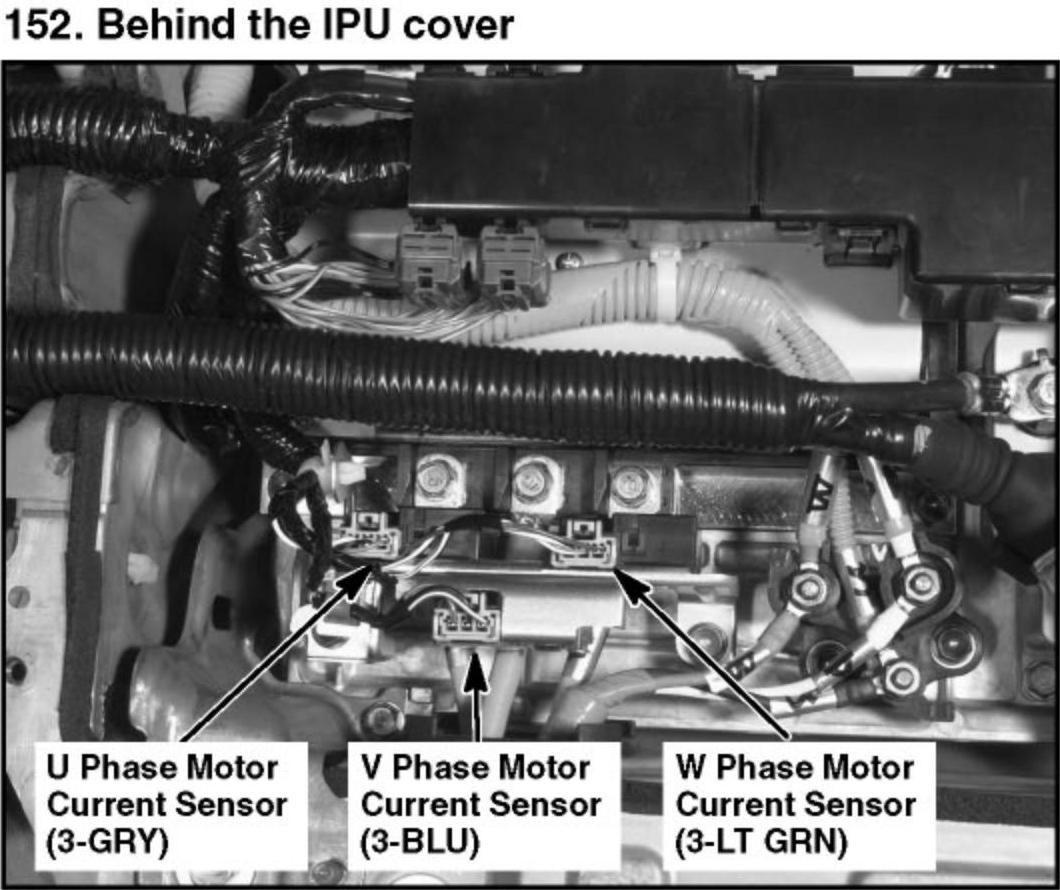

152. Behind the IPU Cover:

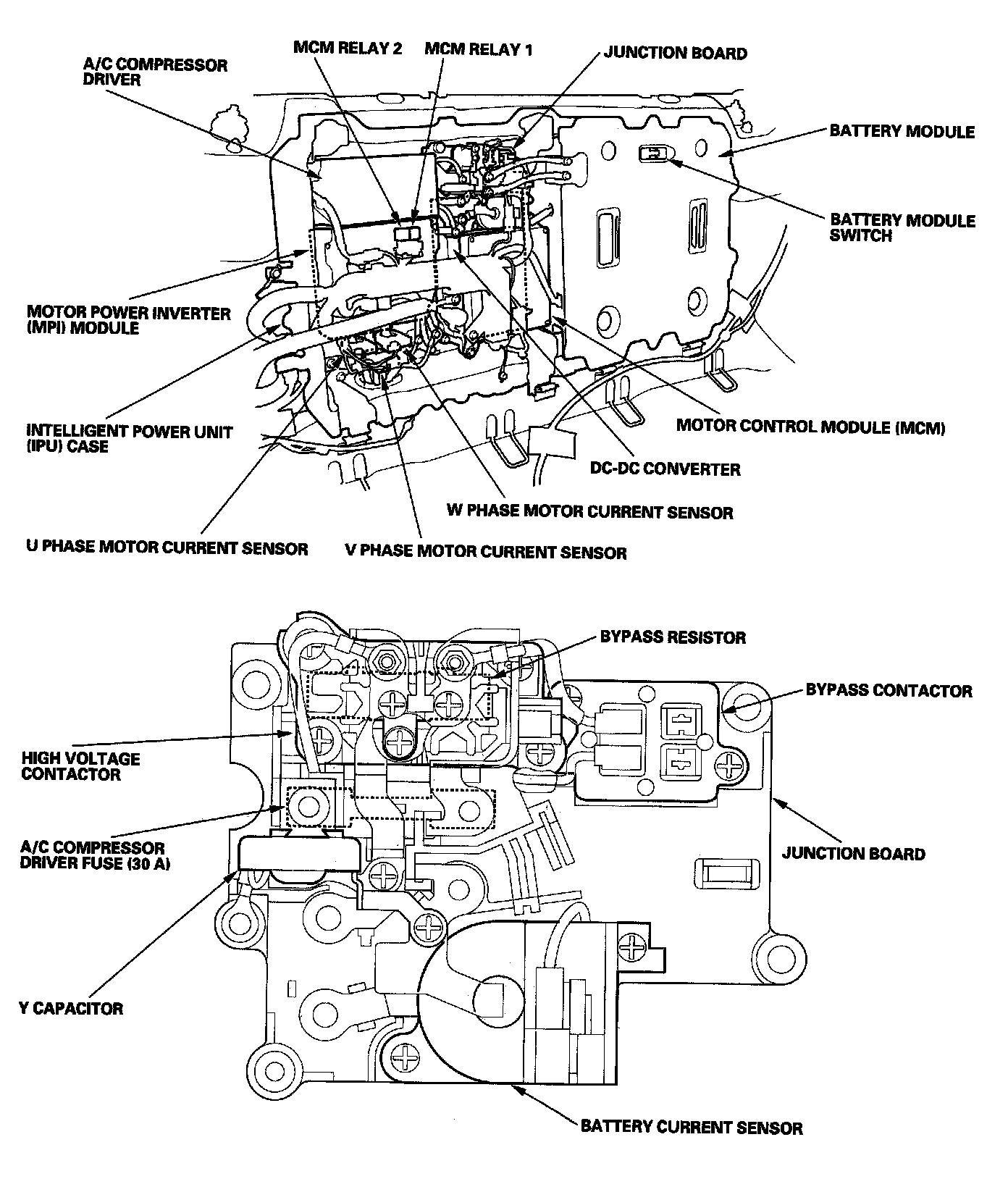

IMA System Component Location Index Part 2:
